Coupling mounting Ø 24 / 23 mm, 75 Nm, size 56 EAMD-56-46-24-23X27-U - Festo 8134726

Festo ✓ Original product Brand new

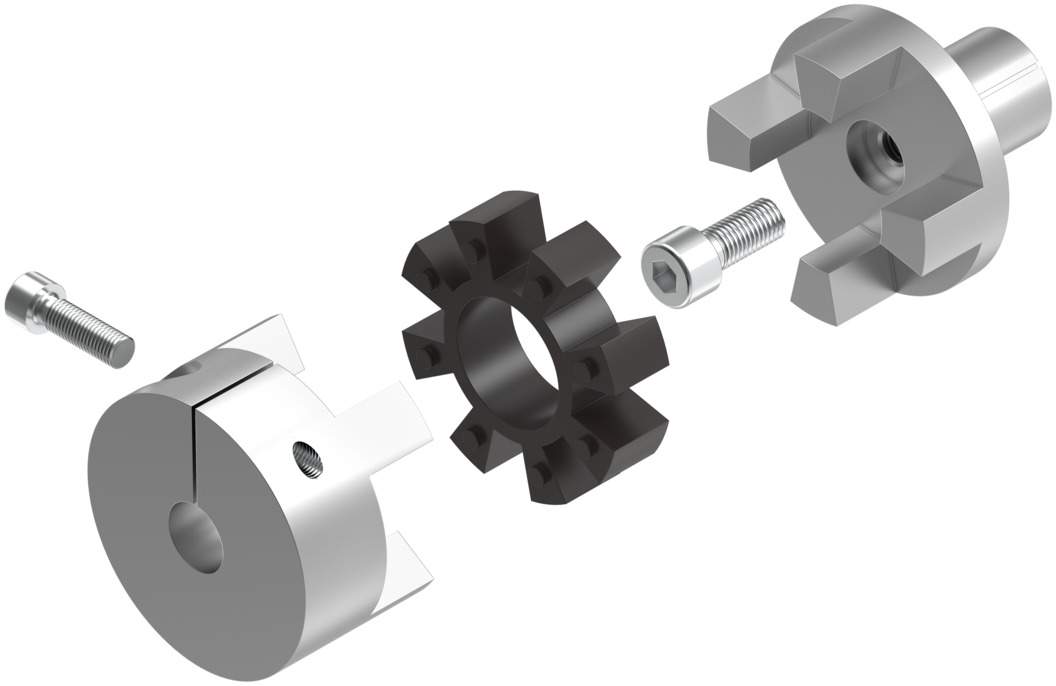

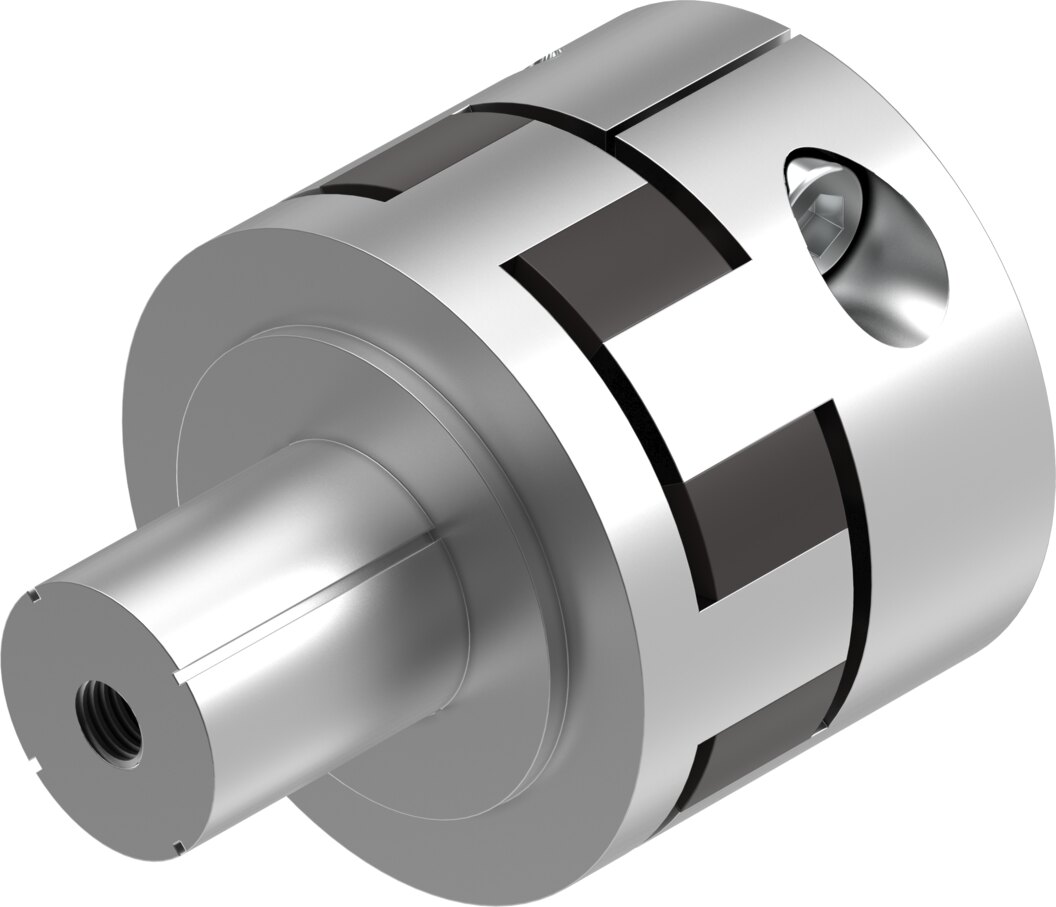

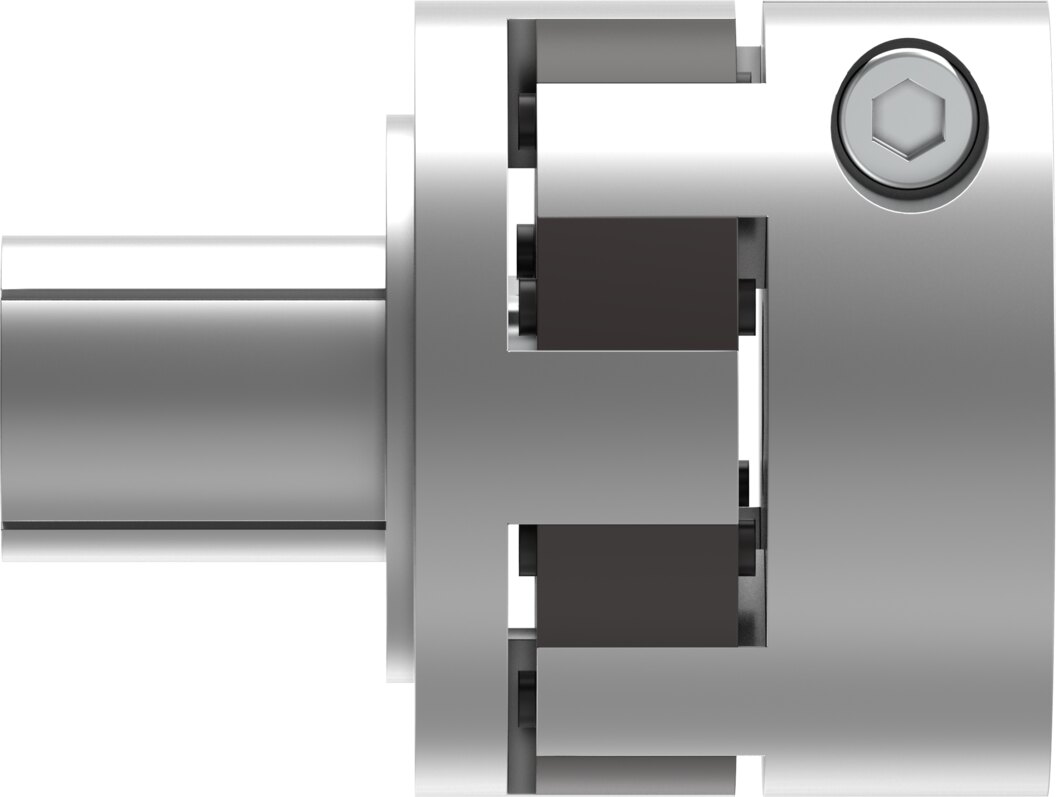

The coupling EAMD-56-46-24-23X27-U connects shafts with 24 mm and 23 mm diameter and transmits up to 75 Nm at a maximum of 5500 1/min. Nominal length 46 mm, mass moment of inertia 151 kgmm². Motor mounting component for Festo electric drives.

Net
€162.64
excl. VAT
Item FES-8134726
Manufacturer no. EAMD-56-46-24-23X27-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For motor mounting on electric drives, the Festo coupling EAMD-56-46-24-23X27-U connects motor shaft and drive shaft. Mounting diameters of 24 mm and 23 mm, 75 Nm transmittable torque and a maximum speed of 5500 1/min determine the selection.

Benefits

  • Transmittable torque 75 Nm
  • Mounting Ø 24 mm and 23 mm for motor and drive shaft
  • Speed up to 5500 1/min
  • Mass moment of inertia 151 kgmm² for drive sizing
  • Size 56, nominal length 46 mm
  • Ambient temperature -25 to 60 °C, product weight 409 g

Applications

The coupling is used for motor mounting on electric axes and cylinders. Size 56, nominal length 46 mm and the two mounting diameters of 24 mm and 23 mm determine the fit.

Technical data

Mounting diameter 124 mm
Mounting diameter 223 mm
Size56
Nominal length46 mm
Mounting positionAny
Max. rotational speed5500 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Ambient temperature-25 to 60 °C
Mass moment of inertia151 kgmm²
Transmittable torque75 Nm
Product weight409 g
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMD-56-46-24-23X27-U
EAN4052568595685
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMD
Temperature (max.)60
