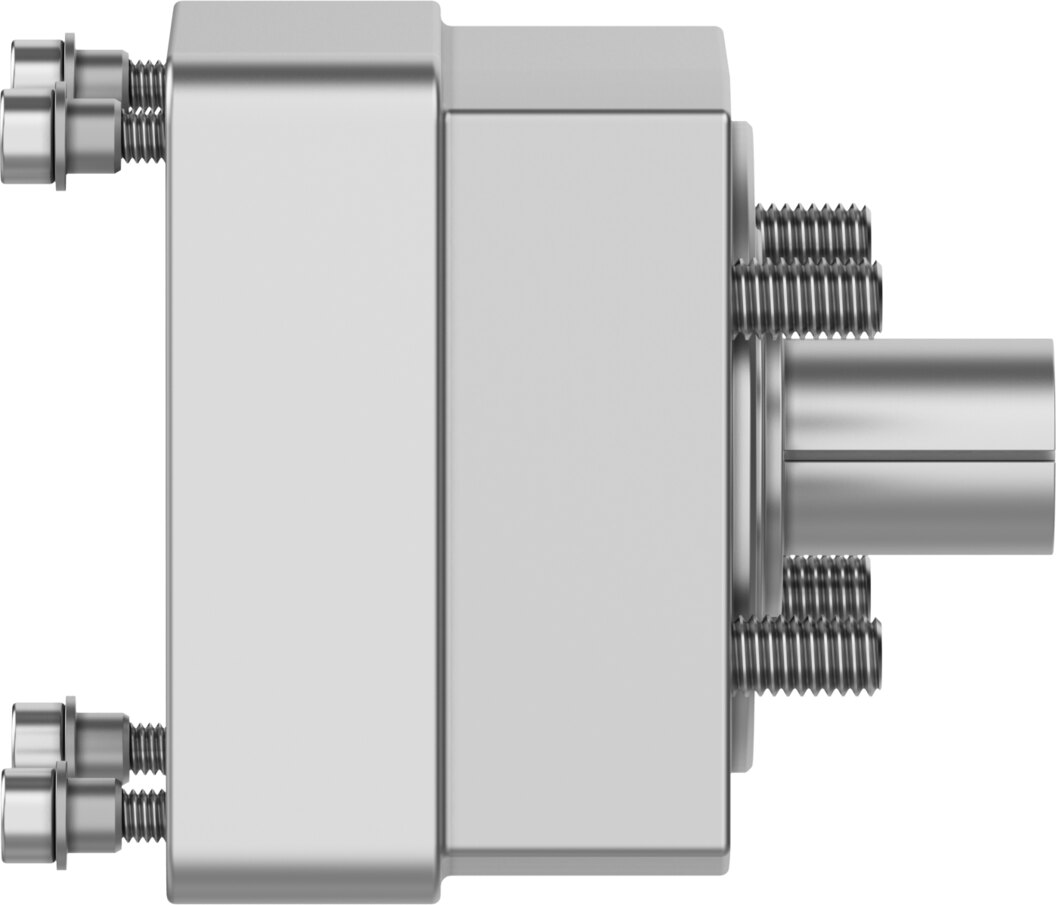

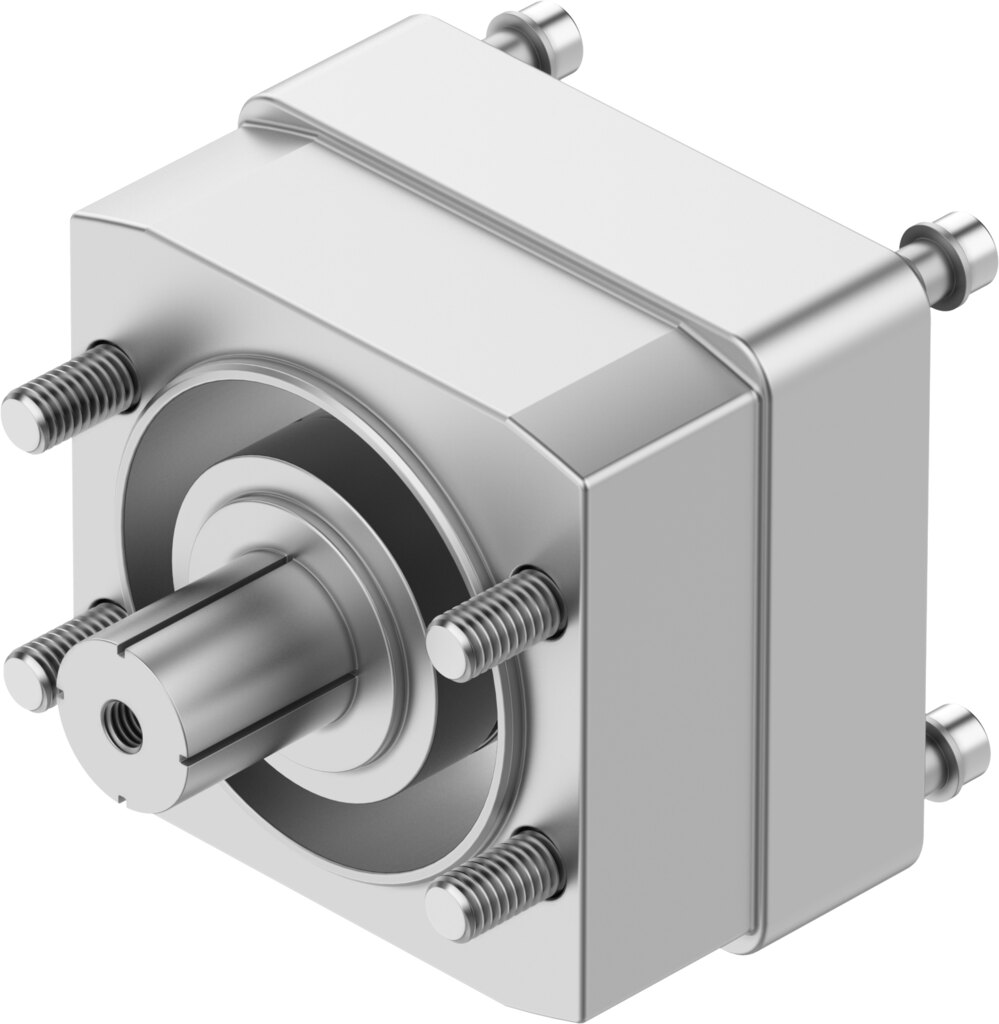

Axial kit for motor mounting, 12.5 Nm, actuator N48, motor 60P, 60PA EAMM-A-N48-60P - Festo 8197468

Festo ✓ Original product Brand new

The axial kit EAMM-A-N48-60P mounts the motor in line with the electric axis. The transmittable torque is 12.5 Nm, speeds of up to 8000 1/min are permitted. Actuator interface code N48, motor side 60P, 60PA.

Net
€211.14
excl. VAT
Item FES-8197468
Manufacturer no. EAMM-A-N48-60P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The axial kit EAMM-A-N48-60P mounts the motor in line with the electric axis. The transmittable torque is 12.5 Nm, speeds of up to 8000 1/min are permitted.

Benefits

  • Transmittable torque 12.5 Nm
  • Speeds up to 8000 1/min
  • Mass moment of inertia 14.5 kgmm² for sizing the drive
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

For mounting a motor to Festo electric axes. Before ordering, compare the interface codes of axis and motor with the table, so EAMM-A-N48-60P fits without rework.

Technical data

TypeEAMM-A-N48-60P
Festo part no.8197468
Nominal length41 mm
Transmittable torque12.5 Nm
Max. rotational speed8000 1/min
Mass moment of inertia14.5 kgmm²
Interface code, actuatorN48
Interface code, motor in60P, 60PA
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight328 g
Note on materialsRoHS compliant
Weight0.4 kg
ManufacturerFesto
Hersteller-NrEAMM-A-N48-60P
EAN4052568648367
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
