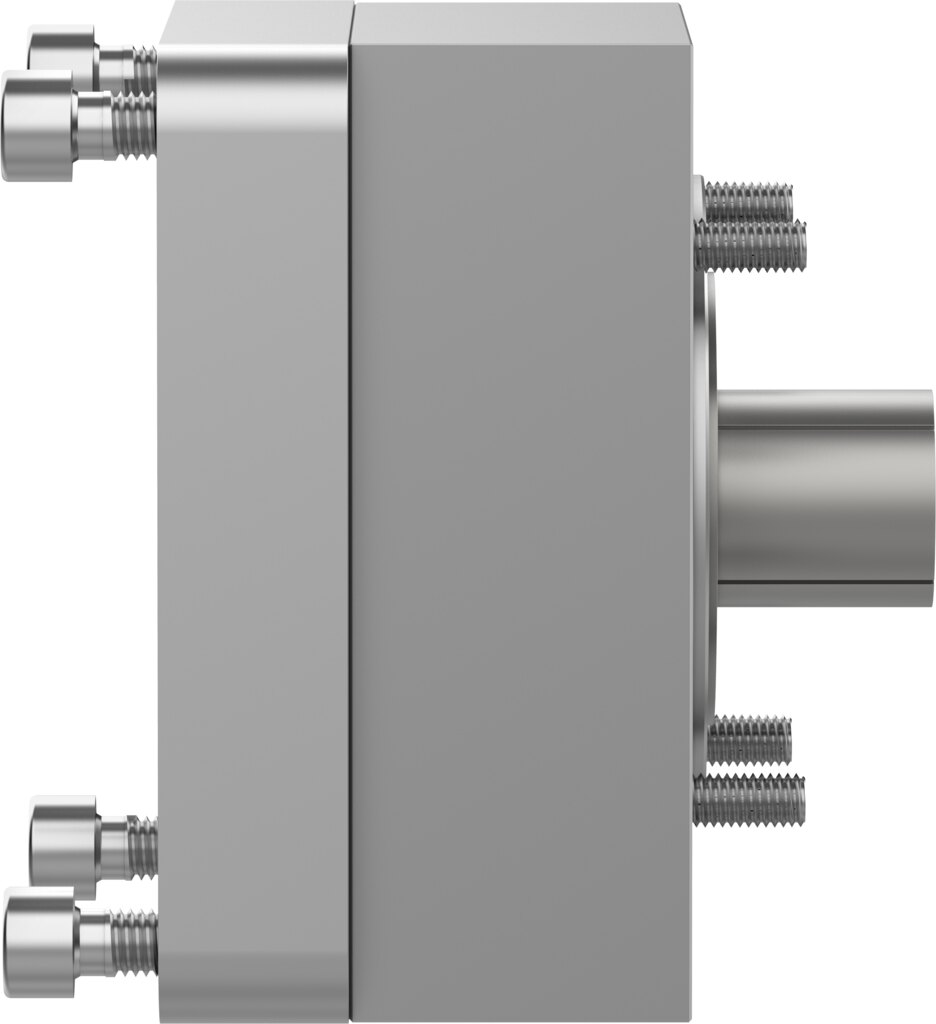

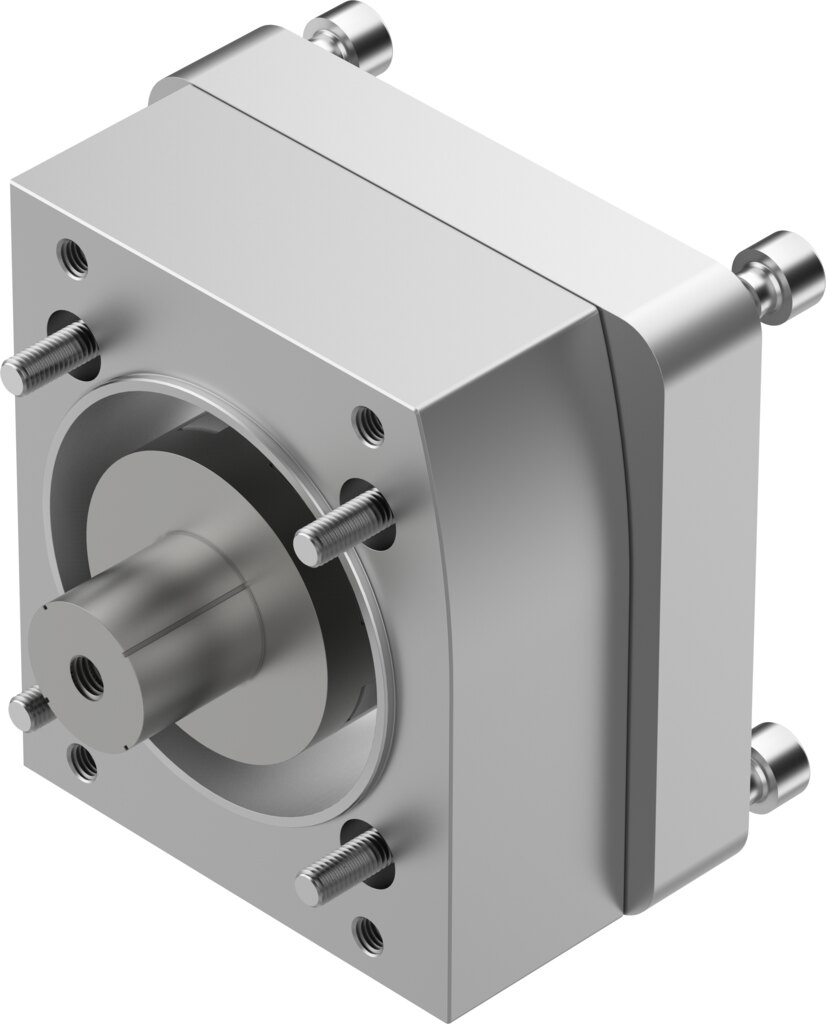

Axial kit for motor mounting, actuator L95, motor 140A or 150A, 143 Nm EAMM-A-L95-150A-G2 - Festo 8157280

Festo ✓ Original product Brand new

Connect motor and electric drive axially without designing your own adapter parts: the axial kit EAMM-A-L95-150A-G2 fits actuator L95 and motor 140A or 150A and transmits up to 143 Nm. Speed up to 4500 1/min, degree of protection IP40. Mass moment of inertia 374 kgmm².

Net
€474.35
excl. VAT
Item FES-8157280
Manufacturer no. EAMM-A-L95-150A-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo axial kit EAMM-A-L95-150A-G2 connects a motor with interface code 140A or 150A coaxially to an electric drive with interface L95. Transmittable torque is 143 Nm, maximum speed 4500 1/min.

Benefits

  • Transmittable torque 143 Nm between motor and drive
  • Speed up to 4500 1/min
  • Mass moment of inertia 374 kgmm² as input for drive sizing
  • Interfaces actuator L95, motor 140A or 150A
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code L95, on the motor side 140A or 150A.

Technical data

Nominal length76 mm
Mounting positionAny
Max. rotational speed4500 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia374 kgmm²
Transmittable torque143 Nm
Product weight3180 g
Interface code, actuatorL95
Interface code, motor in140A, 150A
Note on materialsRoHS compliant
Weight3.6 kg
ManufacturerFesto
Hersteller-NrEAMM-A-L95-150A-G2
EAN4052568597030
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
