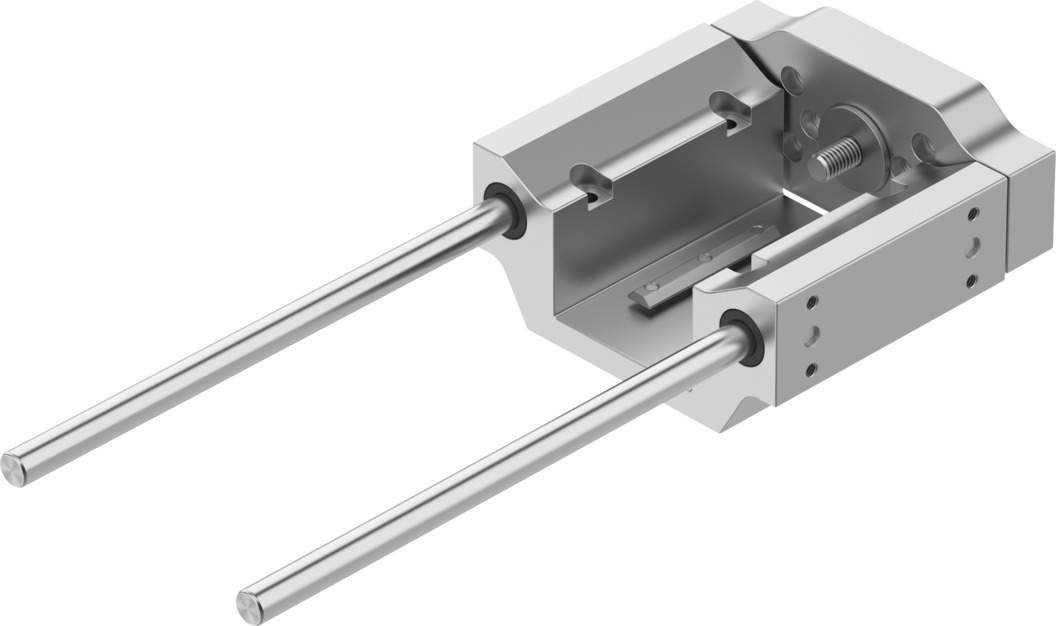

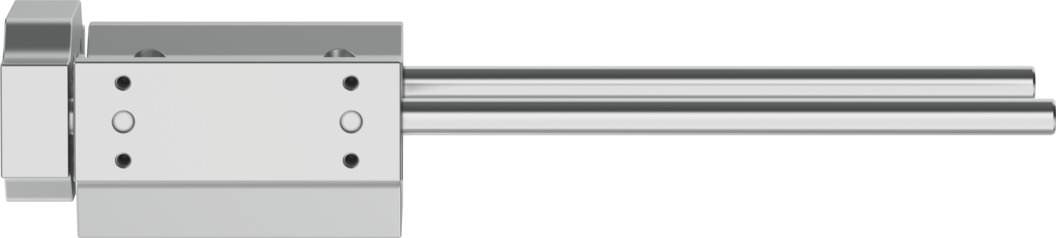

Guide unit with recirculating ball bearing guide, size 60, stroke 200 mm EAGF-P2-KF-60-200 - Festo 8158142
The guide unit EAGF-P2-KF-60-200 takes lateral forces up to Fy 380 N and Fz 380 N dynamically and guides over a 200 mm stroke with a reversing backlash of 0 µm. Up to 1 m/s and 25 m/s², degree of protection IP40. Size 60.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo guide unit EAGF-P2-KF-60-200 gives a drive a recirculating ball bearing guide with a 200 mm stroke that takes forces and torques. Dynamic Fy and Fz up to 380 N and Mx up to 20 Nm are permitted, static Fy up to 510 N.
Benefits
- Forces Fy and Fz up to 380 N dynamic, 510 N static
- Torques Mx 20 Nm, My 15 Nm, Mz 15 Nm dynamic
- Reversing backlash 0 µm with recirculating ball bearing guide
- Up to 1 m/s and 25 m/s² acceleration
- Displacement force 3 N
- Degree of protection IP40, CRC 0, 0 to 60 °C
Applications
The guide unit is combined with a drive when the drive itself should not take lateral forces or torques. For sizing, a basic weight of 1614 g at 0 mm stroke plus 17.8 g per 10 mm stroke applies, with a moving mass of 583 g at 0 mm stroke.
Technical data
| Size | 60 |
|---|---|
| Stroke | 200 mm |
| Reversing backlash theoretical | 0 µm |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Max. acceleration | 25 m/s² |
| Max. speed | 1 m/s |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 60 °C |
| Max. force Fy | 380 N |
| Max. force Fy static | 510 N |
| Max. force Fz | 380 N |
| Max. force Fz static | 510 N |
| Max. moment Mx | 20 Nm |
| Max. torque Mx static | 27 Nm |
| Max. moment My | 15 Nm |
| Max. torque My static | 20 Nm |
| Max. moment Mz | 15 Nm |
| Max. torque Mz static | 20 Nm |
| Displacement force | 3 N |
| Moving mass for 0 mm stroke | 583 g |
| Basic weight for 0 mm stroke | 1614 g |
| Additional weight per 10 mm stroke | 17.8 g |
| Additional moving mass per 10 mm stroke | 17.8 g |
| Centre of gravity at 0 mm stroke | 31 mm |
| Centre of gravity additional of moving mass per 10 mm | 4.3 mm |
| Type of mounting | With female thread |
| Note on materials | RoHS compliant |
| Material guide component | Tempered steel, Hard chrome-plated |
| Material housing | anodised |
| Material yoke plate | Wrought aluminium alloy, anodised |
| Weight | 2.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAGF-P2-KF-60-200 |
| EAN | 4052568605780 |
| Zolltarifnummer | 84821090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 200 |
| Series | EAGF |
| Protection rating | IP40 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
