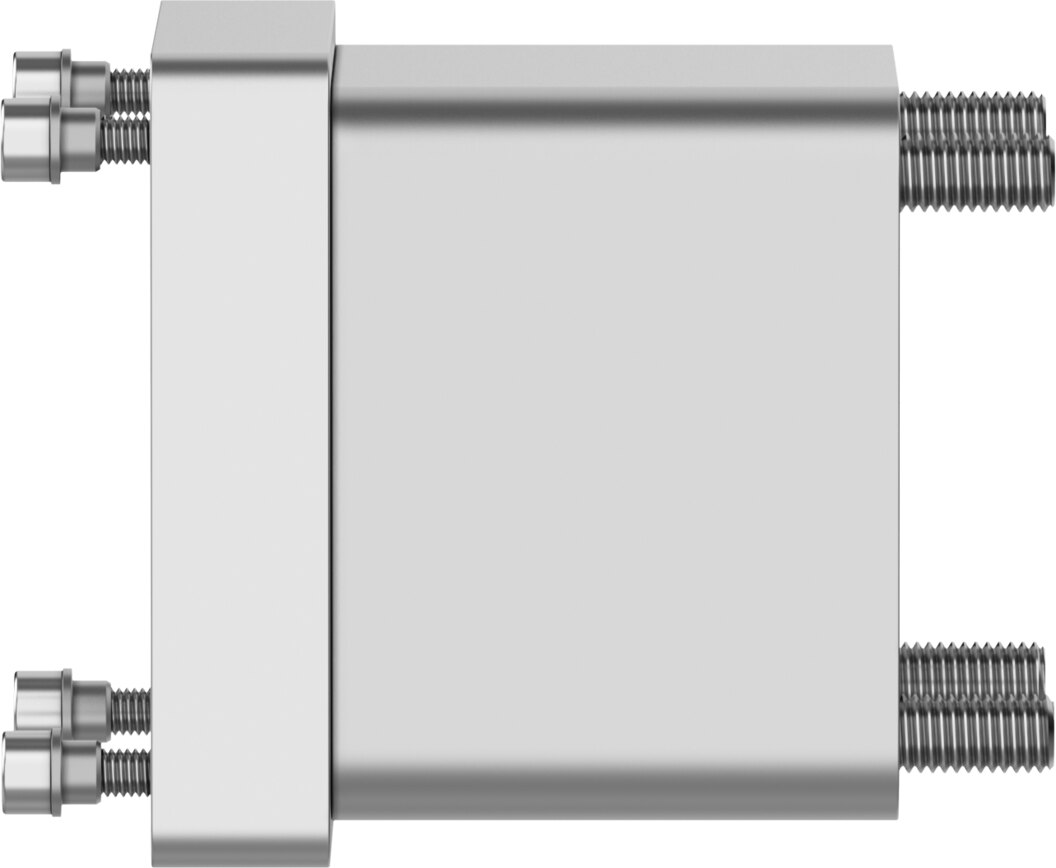

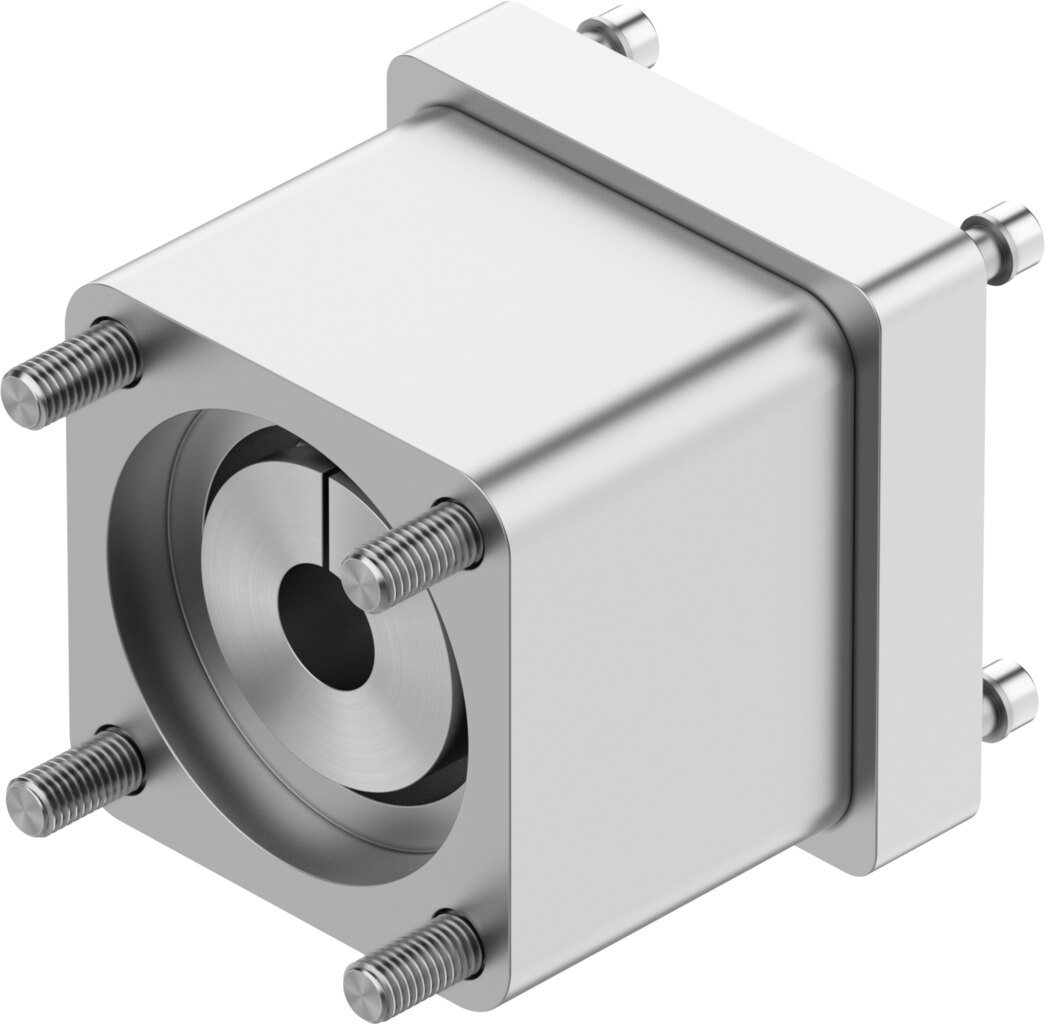

Axial kit for motor mounting, 21 Nm, actuator S60, motor 80P, 80PA, 80RA EAMM-A-S60-80P - Festo 8234799

Festo ✓ Original product Brand new

Axial motor mounting without in-house design work: the EAMM-A-S60-80P kit places the motor in line behind the axis. It transmits up to 21 Nm of torque, the maximum speed is 6000 1/min. Actuator interface code S60, motor side 80P, 80PA, 80RA.

Net
€187.68
excl. VAT
Item FES-8234799
Manufacturer no. EAMM-A-S60-80P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Axial motor mounting without in-house design work: the EAMM-A-S60-80P kit places the motor in line behind the axis. It transmits up to 21 Nm of torque, the maximum speed is 6000 1/min.

Key benefits

  • Transmittable torque 21 Nm
  • Speeds up to 6000 1/min
  • Mass moment of inertia 34.8 kgmm² for sizing the drive
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-A-S60-80P.

Technical data

TypeEAMM-A-S60-80P
Festo part no.8234799
Nominal length75 mm
Transmittable torque21 Nm
Max. rotational speed6000 1/min
Mass moment of inertia34.8 kgmm²
Interface code, actuatorS60
Interface code, motor in80P, 80PA, 80RA
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight960 g
Note on materialsRoHS compliant
Weight1 kg
ManufacturerFesto
Hersteller-NrEAMM-A-S60-80P
EAN4052568780708
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
