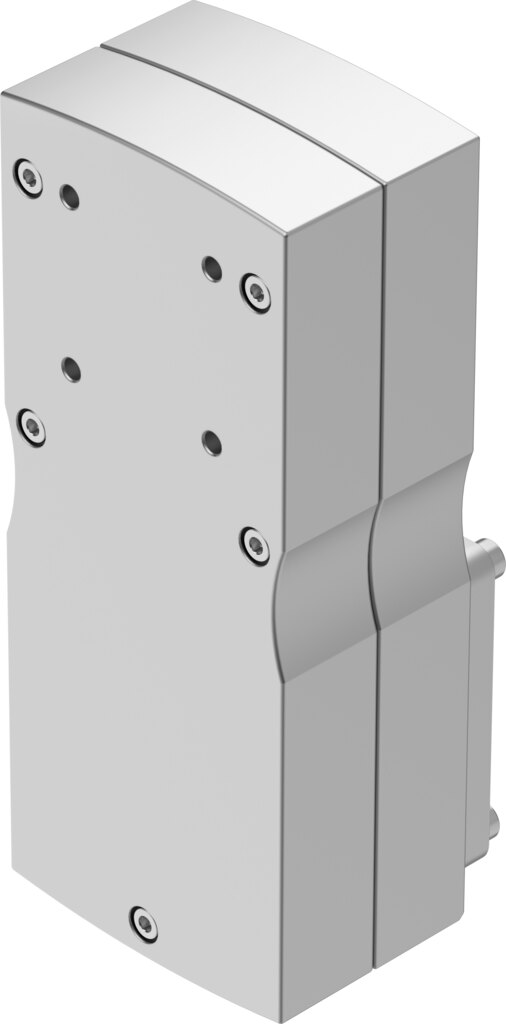

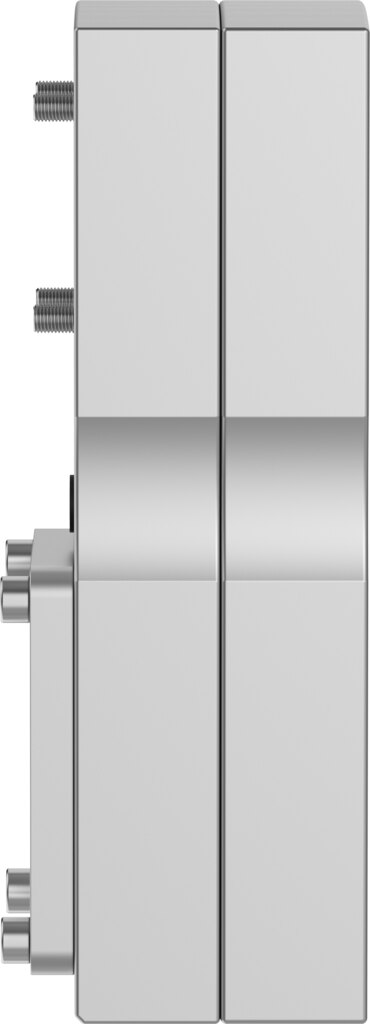

Parallel kit size 145 for motor mounting, actuator D80, motor 90GA, 9.5 Nm EAMM-U-145-D80-90GA-188 - Festo 8105897

Festo ✓ Original product Brand new

Motor alongside instead of in line with the axis: the kit EAMM-U-145-D80-90GA-188 connects motors with code 90GA to drives with interface D80 at up to 9.5 Nm torque. Speed up to 4000 1/min, degree of protection IP40. Mass moment of inertia 2270 kgmm².

Net
€1,049.59
excl. VAT
Item FES-8105897
Manufacturer no. EAMM-U-145-D80-90GA-188
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo parallel kit EAMM-U-145-D80-90GA-188 mounts the motor (interface 90GA) parallel to the drive (interface D80). It transmits up to 9.5 Nm.

Benefits

  • Transmittable torque 9.5 Nm between motor and drive
  • Speed up to 4000 1/min
  • Mass moment of inertia 2270 kgmm² as input for drive sizing
  • No-load driving torque 2 Nm
  • Interfaces actuator D80, motor 90GA
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code D80, on the motor side 90GA.

Technical data

Size145
Mounting positionAny
Max. rotational speed4000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia2270 kgmm²
Frictional torque independent of load2 Nm
Transmittable torque9.5 Nm
Product weight12000 g
Interface code, actuatorD80
Interface code, motor in90GA
Note on materialsRoHS compliant
Weight10 kg
ManufacturerFesto
Hersteller-NrEAMM-U-145-D80-90GA-188
EAN4052568551674
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
