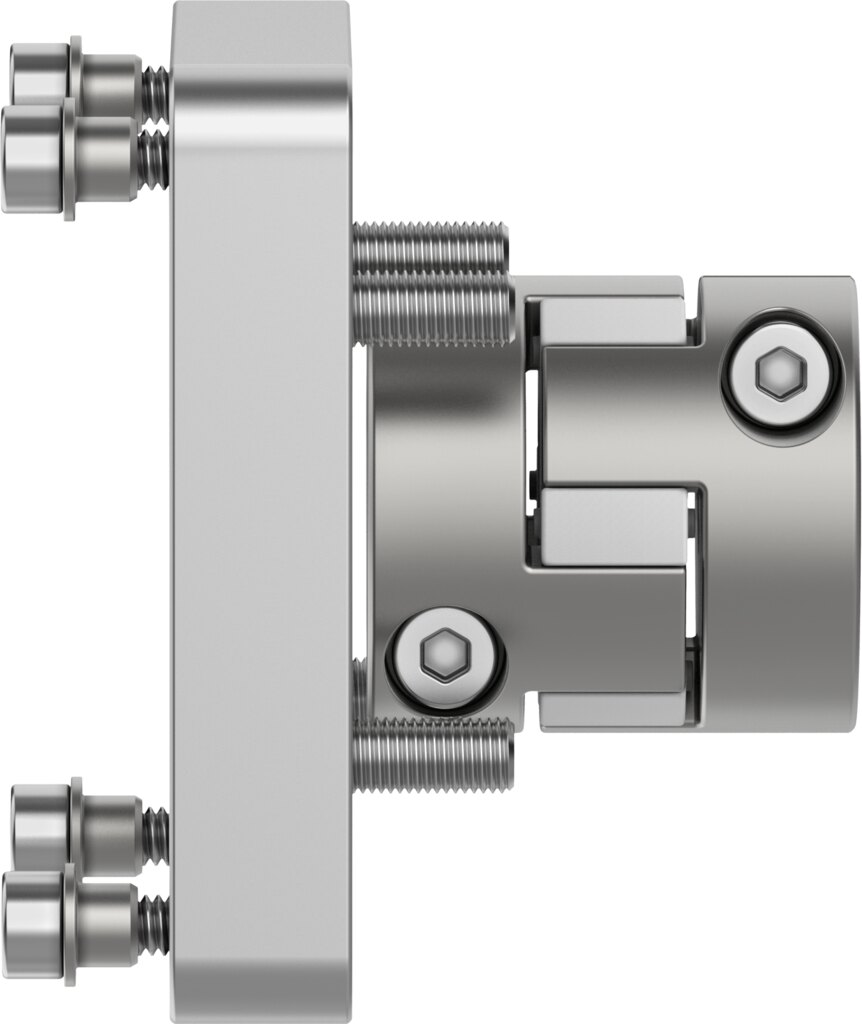

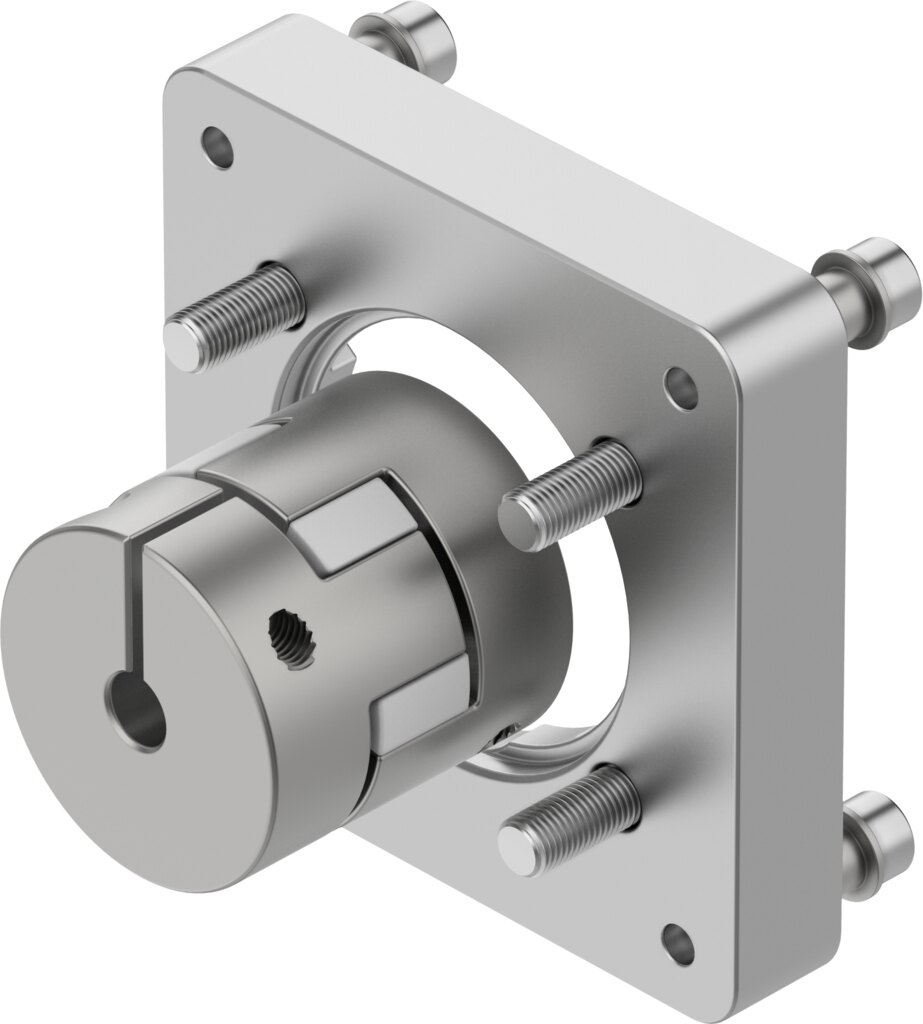

Axial kit for motor mounting, actuator P6-38A, motor 60RA, 6.5 Nm EAMM-A-P6-38A-60RA - Festo 8123496

Festo ✓ Original product Brand new

The axial kit EAMM-A-P6-38A-60RA mounts a motor with interface 60RA in line with a drive carrying interface code P6-38A. It transmits up to 6.5 Nm. Speed up to 8000 1/min, degree of protection IP40. Mass moment of inertia 5.87 kgmm².

Net
€220.96
excl. VAT
Item FES-8123496
Manufacturer no. EAMM-A-P6-38A-60RA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo axial kit EAMM-A-P6-38A-60RA connects a motor with interface code 60RA coaxially to an electric drive with interface P6-38A. Transmittable torque is 6.5 Nm, maximum speed 8000 1/min.

Benefits

  • Transmittable torque 6.5 Nm between motor and drive
  • Speed up to 8000 1/min
  • Mass moment of inertia 5.87 kgmm² as input for drive sizing
  • Interfaces actuator P6-38A, motor 60RA, coupling housing 38A
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code P6-38A, on the motor side 60RA.

Technical data

Nominal length11.8 mm
Mounting positionAny
Max. rotational speed8000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia5.87 kgmm²
Transmittable torque6.5 Nm
Product weight209 g
Interface code, actuatorP6-38A
Interface code, motor in60RA
Interface code, clutch housing38A
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMM-A-P6-38A-60RA
EAN4052568551520
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
