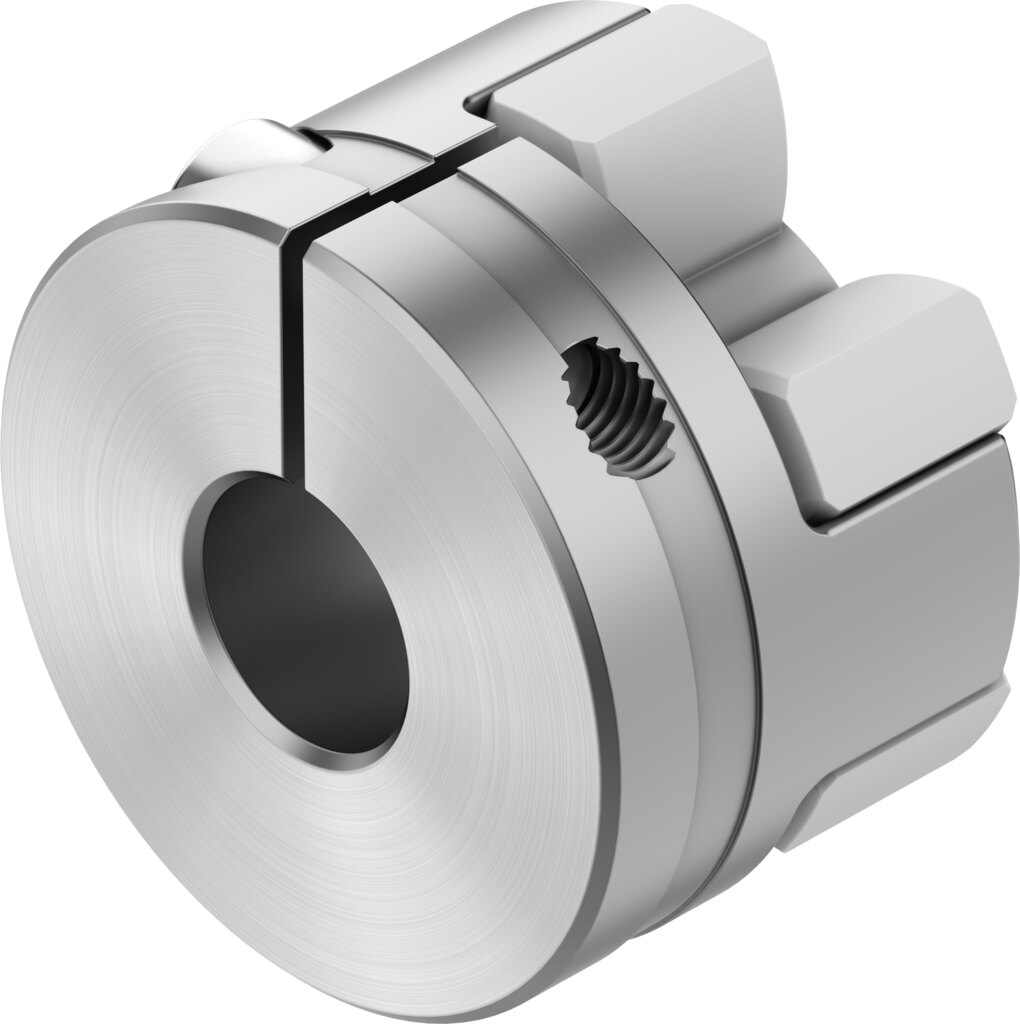

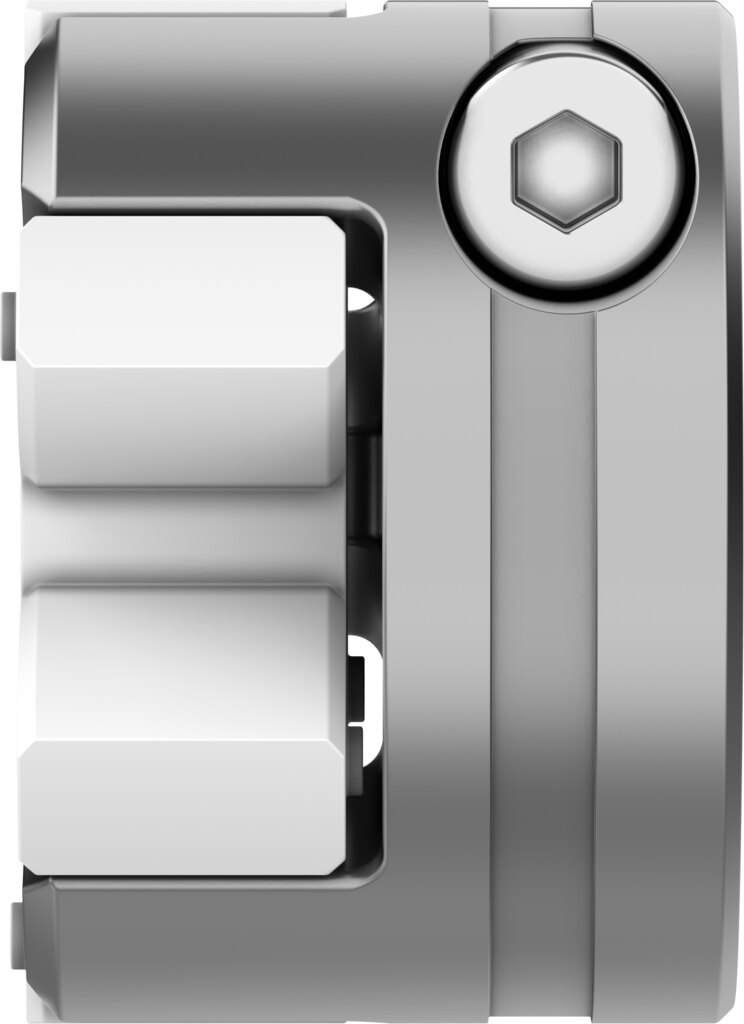

Coupling hub for motor mounting Ø 6.35 mm, size 30 EAMC-H-30-10-GB16-6.35 - Festo 8228654

Festo ✓ Original product Brand new

The coupling hub EAMC-H-30-10-GB16-6.35 lets a coupling be adapted to a different shaft diameter. The mounting diameter is 6.35 mm. Up to 6 Nm of torque is transmitted, speeds of up to 8000 1/min are permitted.

Net
€52.78
excl. VAT
Item FES-8228654
Manufacturer no. EAMC-H-30-10-GB16-6.35
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The coupling hub EAMC-H-30-10-GB16-6.35 lets a coupling be adapted to a different shaft diameter. Up to 6 Nm of torque is transmitted, speeds of up to 8000 1/min are permitted.

Key benefits

  • Transmittable torque 6 Nm
  • Speeds up to 8000 1/min
  • Mass moment of inertia 3.2 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

EAMC-H-30-10-GB16-6.35 is fitted when mounting motors to Festo electric axes, in new designs or as a replacement. The Festo data for EAMC-H-30-10-GB16-6.35 in the table are decisive for selection.

Technical data

TypeEAMC-H-30-10-GB16-6.35
Festo part no.8228654
Size30
Nominal length20.7 mm
Mounting diameter 16.35 mm
Transmittable torque6 Nm
Max. rotational speed8000 1/min
Mass moment of inertia3.2 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight26 g
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMC-H-30-10-GB16-6.35
EAN4052568770037
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMC
Bore (mm)6
Temperature (max.)60
