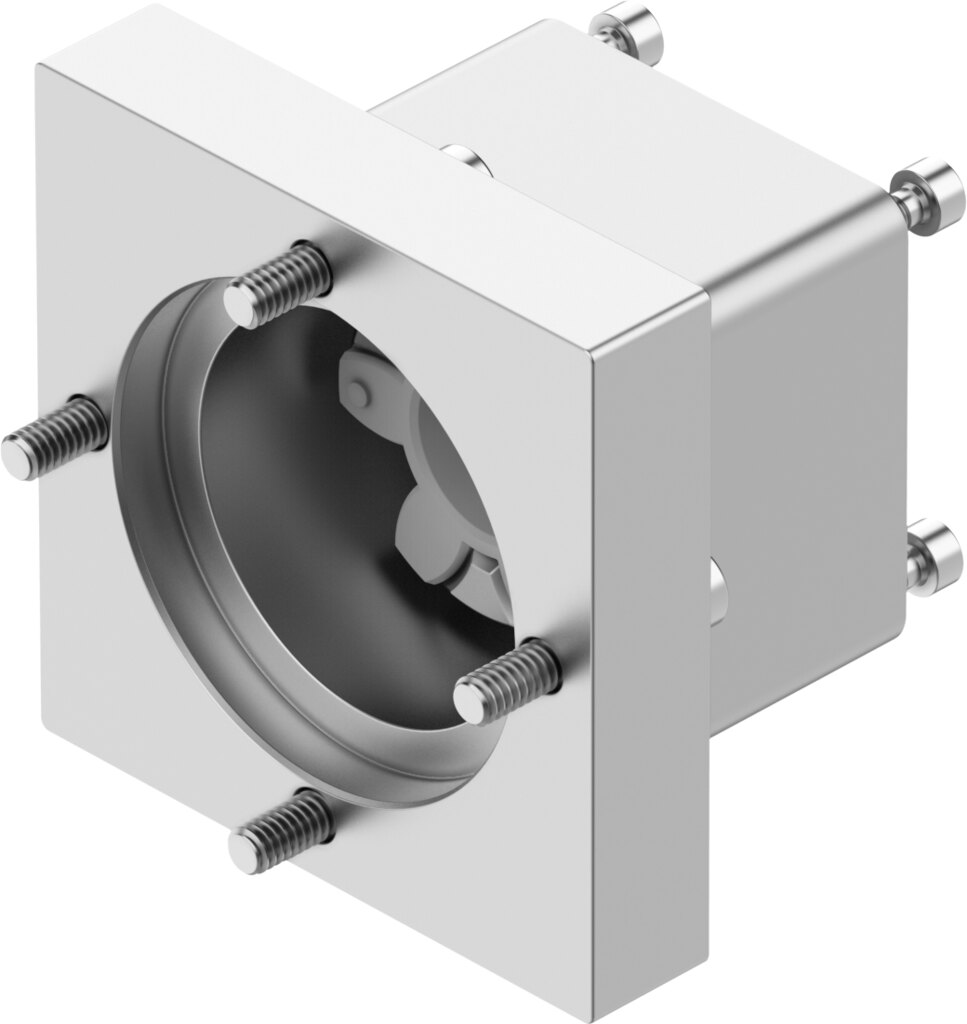

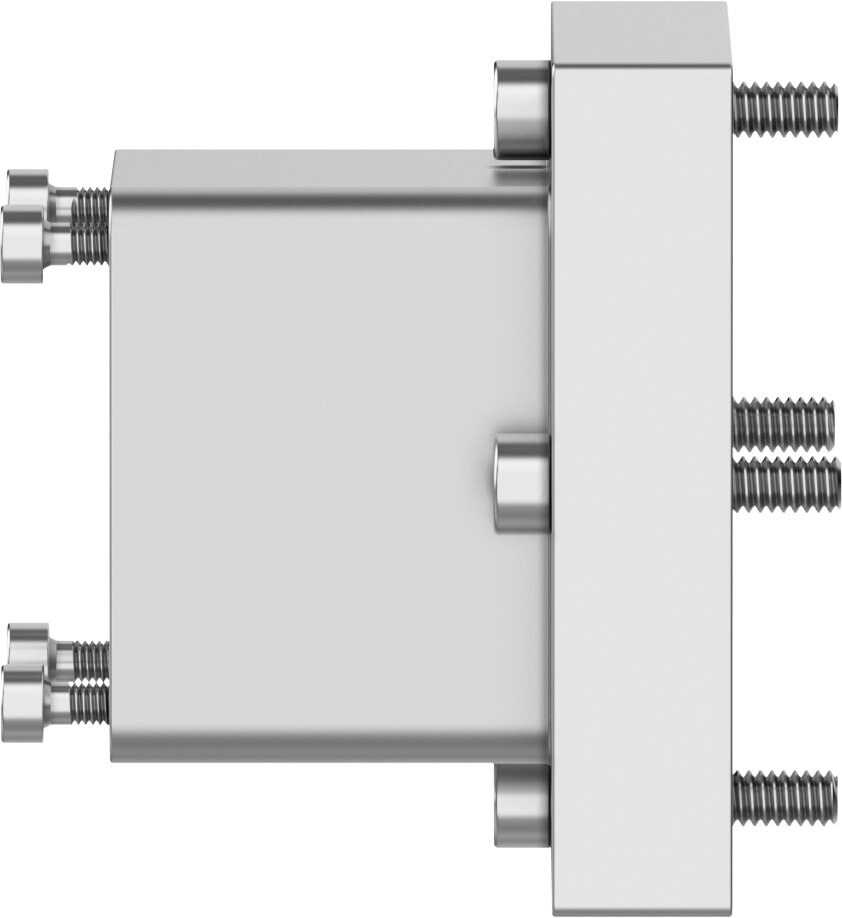

Axial kit for motor mounting, 7.5 Nm, actuator T42, motor 40P EAMM-A-T42-40P - Festo 8217184
The axial kit EAMM-A-T42-40P connects motor and axis on a common centre line. Up to 7.5 Nm of torque is transmitted, the part is rated for up to 8000 1/min. Actuator interface code T42, motor side 40P.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The axial kit EAMM-A-T42-40P connects motor and axis on a common centre line. Up to 7.5 Nm of torque is transmitted, the part is rated for up to 8000 1/min.
Why this part
- Transmittable torque 7.5 Nm
- Speeds up to 8000 1/min
- Mass moment of inertia 3.2 kgmm² for sizing the drive
- Degree of protection IP40, protected against solid objects from 1 mm
- LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
- Ambient temperature -10 to 60 °C
Application
Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-A-T42-40P.
Technical data
| Type | EAMM-A-T42-40P |
|---|---|
| Festo part no. | 8217184 |
| Nominal length | 43 mm |
| Transmittable torque | 7.5 Nm |
| Max. rotational speed | 8000 1/min |
| Mass moment of inertia | 3.2 kgmm² |
| Interface code, actuator | T42 |
| Interface code, motor in | 40P |
| Degree of protection | IP40 |
| Mounting position | Any |
| Ambient temperature | -10 to 60 °C |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95 % |
| LABS (PWIS) conformity | VDMA 24364-B2-L |
| Product weight | 178 g |
| Note on materials | RoHS compliant |
| Weight | 0.21 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-A-T42-40P |
| EAN | 4052568661359 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
