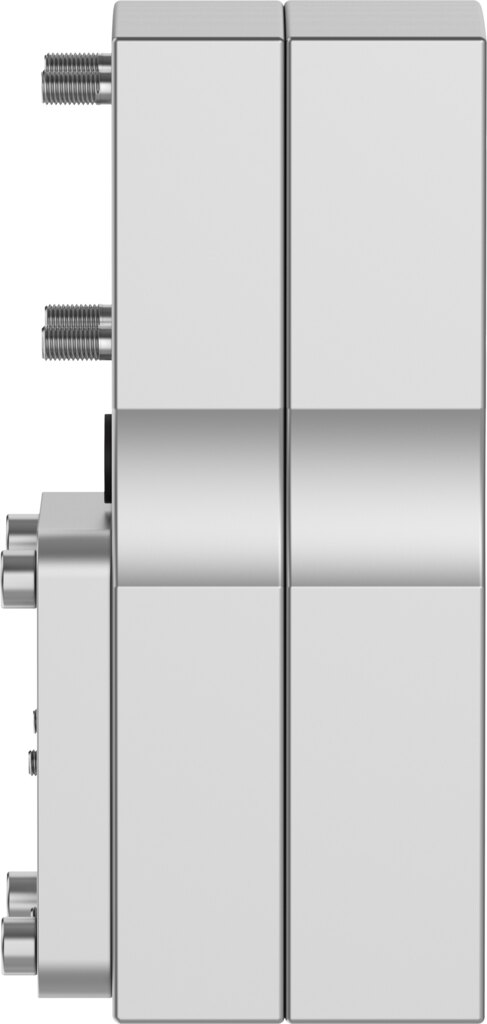

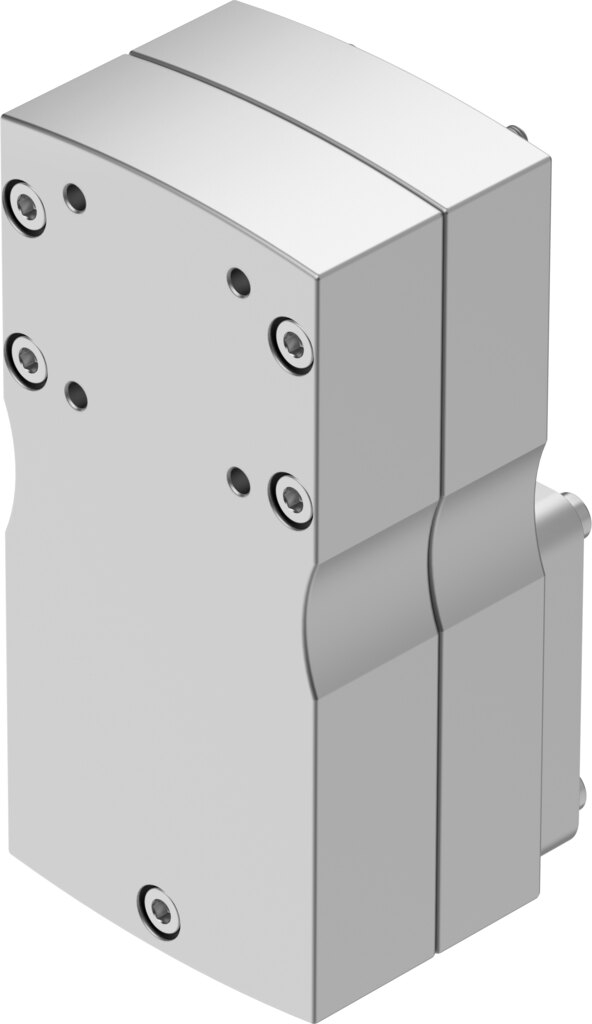

Parallel kit size 110 for motor mounting, actuator D60, motor 90GA, 25 Nm EAMM-U-110-D60-90GA-120 - Festo 8107723
Where space along the axis is tight, the parallel kit EAMM-U-110-D60-90GA-120 mounts the motor (90GA) next to the drive with interface D60. It transmits up to 25 Nm. Speed up to 5000 1/min, degree of protection IP40. Mass moment of inertia 799 kgmm².
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo parallel kit EAMM-U-110-D60-90GA-120 mounts the motor (interface 90GA) parallel to the drive (interface D60). It transmits up to 25 Nm at a ratio of 1:1.
Benefits
- Transmittable torque 25 Nm between motor and drive
- Speed up to 5000 1/min
- Mass moment of inertia 799 kgmm² as input for drive sizing
- No-load driving torque 0.3 Nm
- Ratio 1:1
- Interfaces actuator D60, motor 90GA
Applications
The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code D60, on the motor side 90GA.
Technical data
| Size | 110 |
|---|---|
| Mounting position | Any |
| Gear unit ratio | 1:1 |
| Max. rotational speed | 5000 1/min |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95% |
| Degree of protection | IP40 |
| Ambient temperature | -10 to 60 °C |
| Mass moment of inertia | 799 kgmm² |
| Frictional torque independent of load | 0.3 Nm |
| Transmittable torque | 25 Nm |
| Product weight | 5250 g |
| Interface code, actuator | D60 |
| Interface code, motor in | 90GA |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-U-110-D60-90GA-120 |
| EAN | 4052568551995 |
| Zolltarifnummer | 84839089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
