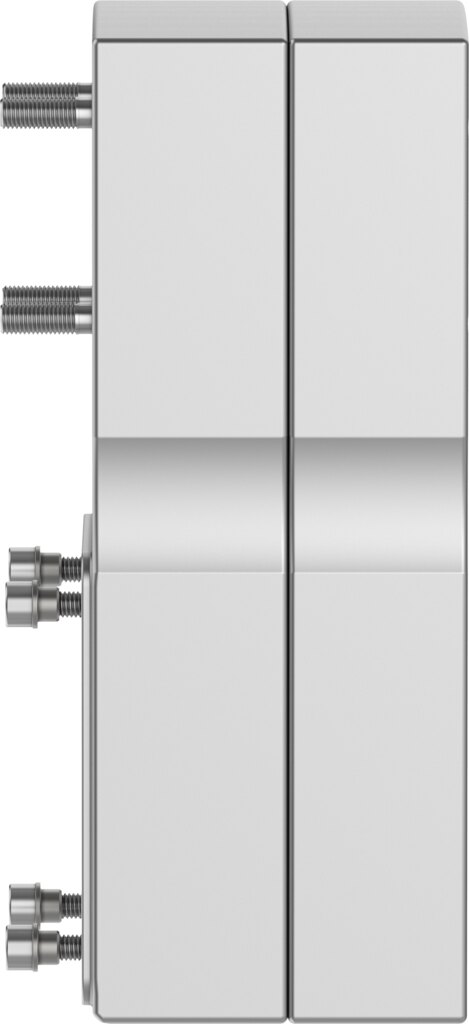

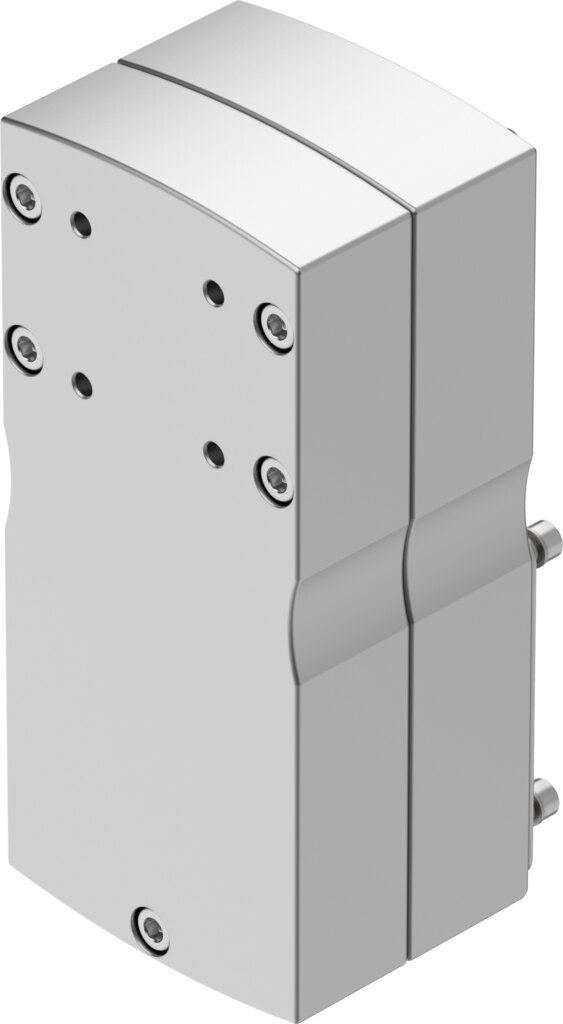

Parallel kit size 86 for motor mounting, actuator D40, motor 80PB or 80R, 9.5 Nm EAMM-U-86-D40-80PB-102 - Festo 8123501
Where space along the axis is tight, the parallel kit EAMM-U-86-D40-80PB-102 mounts the motor (80PB or 80R) next to the drive with interface D40. It transmits up to 9.5 Nm. Speed up to 5000 1/min, degree of protection IP40. Mass moment of inertia 175 kgmm².
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Size 86, 9.5 Nm transmittable torque and interfaces for actuator D40 and motor 80PB or 80R: the parallel kit EAMM-U-86-D40-80PB-102 shortens the installed length because the motor sits next to the drive instead of behind it.
Benefits
- Transmittable torque 9.5 Nm between motor and drive
- Speed up to 5000 1/min
- Mass moment of inertia 175 kgmm² as input for drive sizing
- No-load driving torque 0.25 Nm
- Interfaces actuator D40, motor 80PB or 80R
- Degree of protection IP40, ambient temperature -10 to 60 °C
Applications
The EAMM-U-86-D40-80PB-102 is used whenever a motor with interface code 80PB or 80R has to be fitted to an electric drive with interface D40. Typical applications are positioning axes in assembly, packaging and laboratory automation.
Technical data
| Size | 86 |
|---|---|
| Mounting position | Any |
| Max. rotational speed | 5000 1/min |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95% |
| Degree of protection | IP40 |
| Ambient temperature | -10 to 60 °C |
| Mass moment of inertia | 175 kgmm² |
| Frictional torque independent of load | 0.25 Nm |
| Transmittable torque | 9.5 Nm |
| Product weight | 2500 g |
| Interface code, actuator | D40 |
| Interface code, motor in | 80PB, 80R |
| Note on materials | RoHS compliant |
| Weight | 2.4 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-U-86-D40-80PB-102 |
| EAN | 4052568552053 |
| Zolltarifnummer | 84839089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
