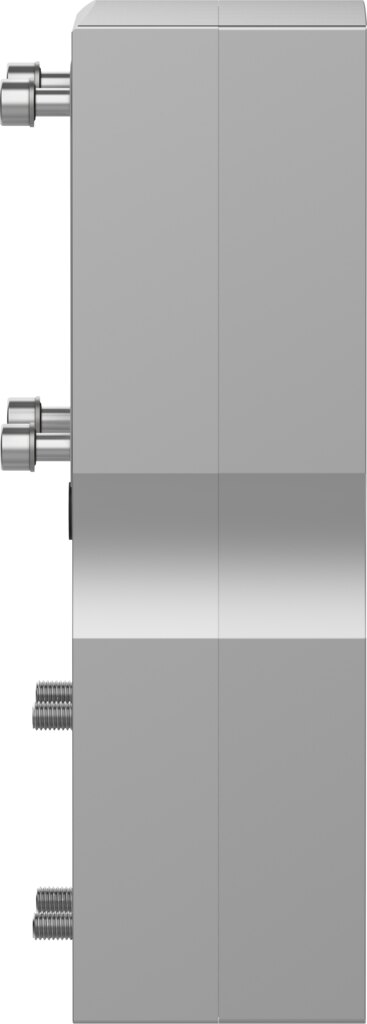

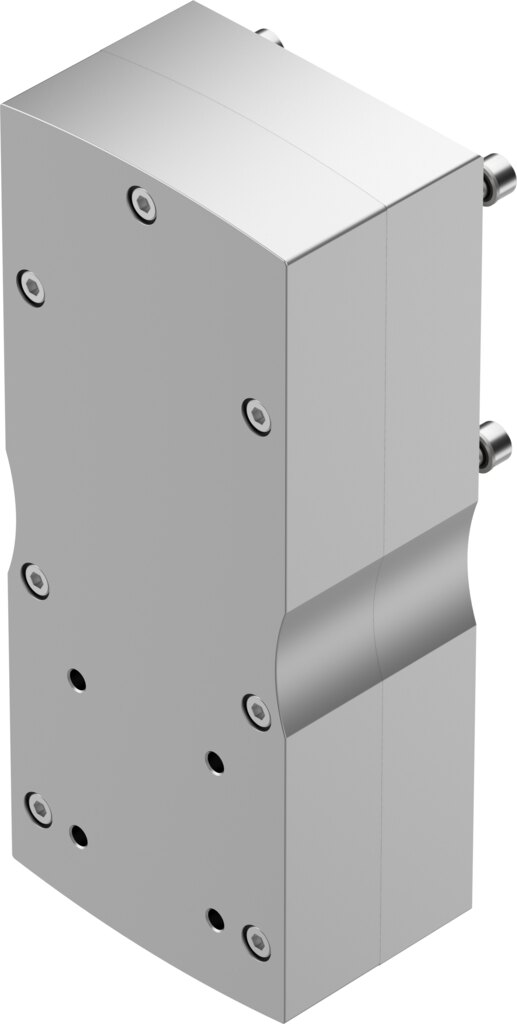

Parallel kit size 145 for motor mounting, actuator D80B, motor 140A or 150A, 50 Nm EAMM-U-145-D80-150A-188-S1 - Festo 8157286

Festo ✓ Original product Brand new

Where space along the axis is tight, the parallel kit EAMM-U-145-D80-150A-188-S1 mounts the motor (140A or 150A) next to the drive with interface D80B. It transmits up to 50 Nm. Speed up to 4000 1/min, degree of protection IP65. Mass moment of inertia 2259 kgmm².

Net
€1,219.76
excl. VAT
Item FES-8157286
Manufacturer no. EAMM-U-145-D80-150A-188-S1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Size 145, 50 Nm transmittable torque and interfaces for actuator D80B and motor 140A or 150A: the parallel kit EAMM-U-145-D80-150A-188-S1 shortens the installed length because the motor sits next to the drive instead of behind it.

Benefits

  • Transmittable torque 50 Nm between motor and drive
  • Speed up to 4000 1/min
  • Mass moment of inertia 2259 kgmm² as input for drive sizing
  • No-load driving torque 2 Nm
  • Ratio 1:1
  • Interfaces actuator D80B, motor 140A or 150A

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code D80B, on the motor side 140A or 150A.

Technical data

Size145
Mounting positionAny
Gear unit ratio1:1
Max. rotational speed4000 1/min
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP65
Ambient temperature-10 to 60 °C
Mass moment of inertia2259 kgmm²
Frictional torque independent of load2 Nm
Transmittable torque50 Nm
Product weight11600 g
Interface code, actuatorD80B
Interface code, motor in140A, 150A
Note on materialsRoHS compliant
Weight13 kg
ManufacturerFesto
Hersteller-NrEAMM-U-145-D80-150A-188-S1
EAN4052568600198
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP65
Temperaturbereich-10-60 °C
Temperature (max.)60
