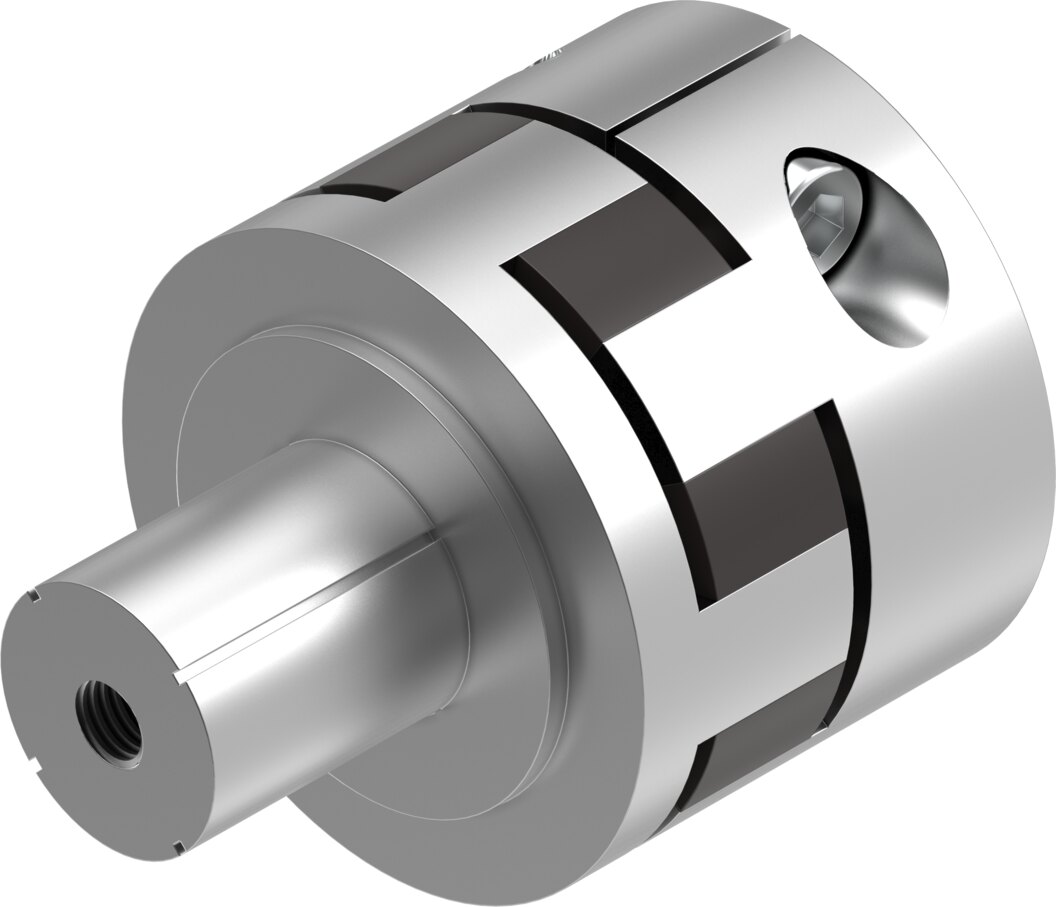

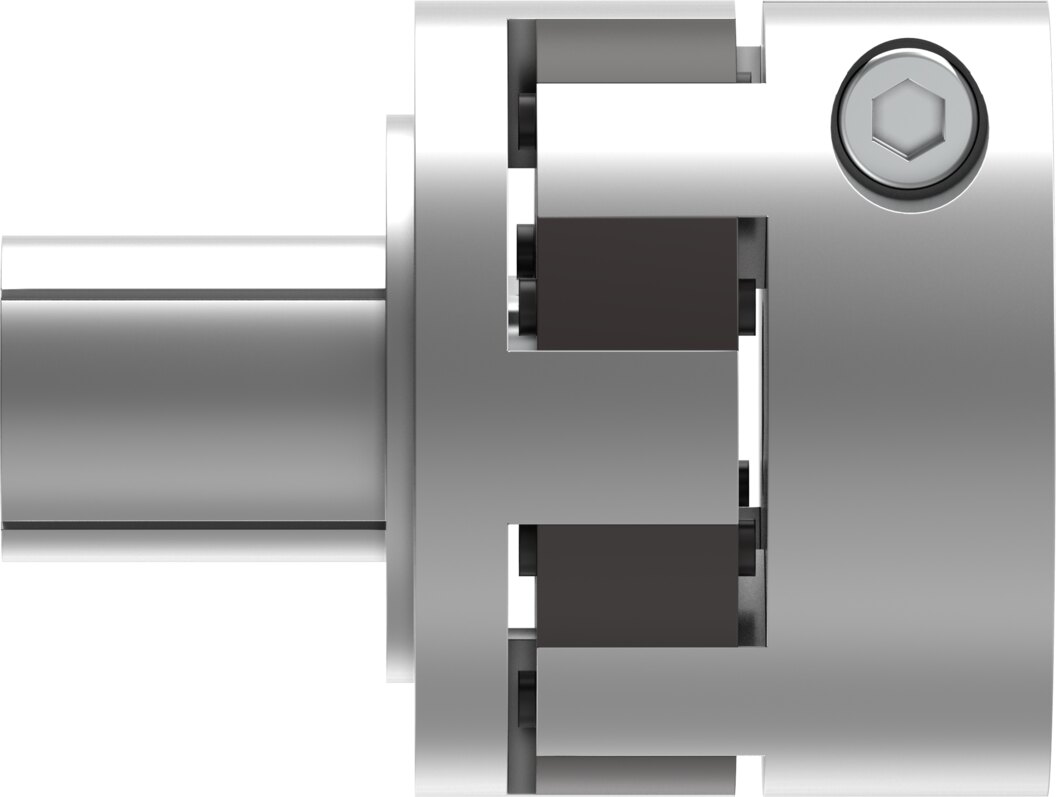

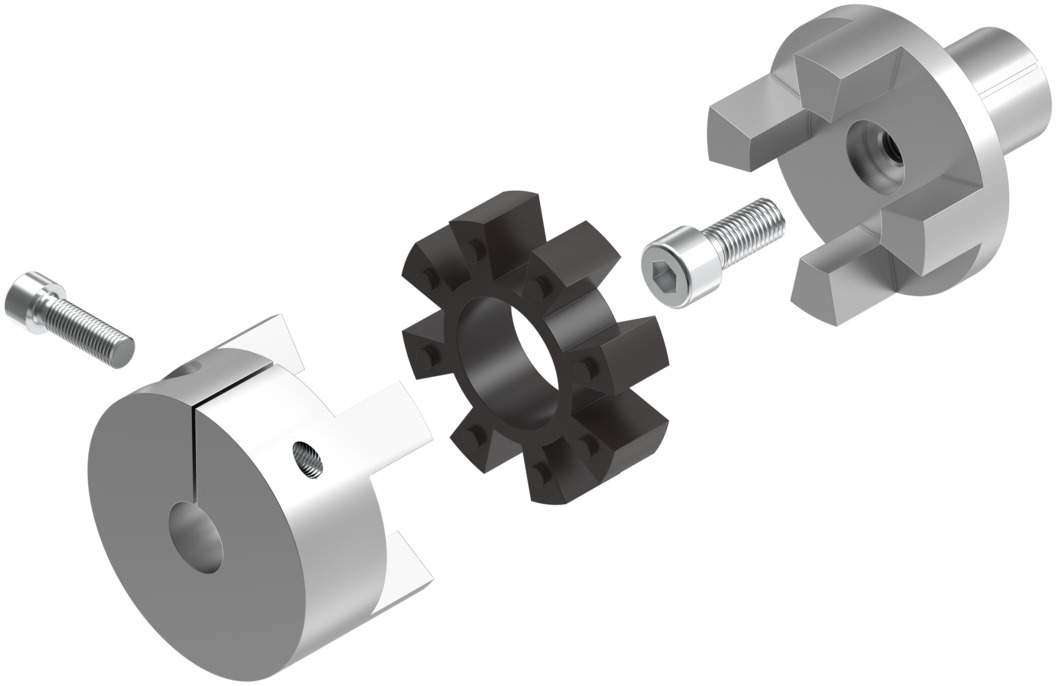

Coupling for motor mounting Ø 22/23 mm, 72 Nm EAMD-56-46-22-23X27-U - Festo 8164974

Festo ✓ Original product Brand new

Fitted between motor shaft and axis shaft, the coupling EAMD-56-46-22-23X27-U transmits the drive torque. The mounting diameters are 22 mm and 23 mm. Up to 72 Nm of torque is transmitted, the maximum speed is 5500 1/min.

Net
€162.64
excl. VAT
Item FES-8164974
Manufacturer no. EAMD-56-46-22-23X27-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Fitted between motor shaft and axis shaft, the coupling EAMD-56-46-22-23X27-U transmits the drive torque. Up to 72 Nm of torque is transmitted, the maximum speed is 5500 1/min.

Why this part

  • Transmittable torque 72 Nm
  • Speeds up to 5500 1/min
  • Mass moment of inertia 151 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

For mounting a motor to Festo electric axes. Before ordering, compare the interface codes of axis and motor with the table, so EAMD-56-46-22-23X27-U fits without rework.

Technical data

TypeEAMD-56-46-22-23X27-U
Festo part no.8164974
Size56
Nominal length46 mm
Mounting diameter 122 mm
Mounting diameter 223 mm
Transmittable torque72 Nm
Max. rotational speed5500 1/min
Mass moment of inertia151 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight413 g
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMD-56-46-22-23X27-U
EAN4052568596279
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMD
Bore (mm)22
Temperature (max.)60
