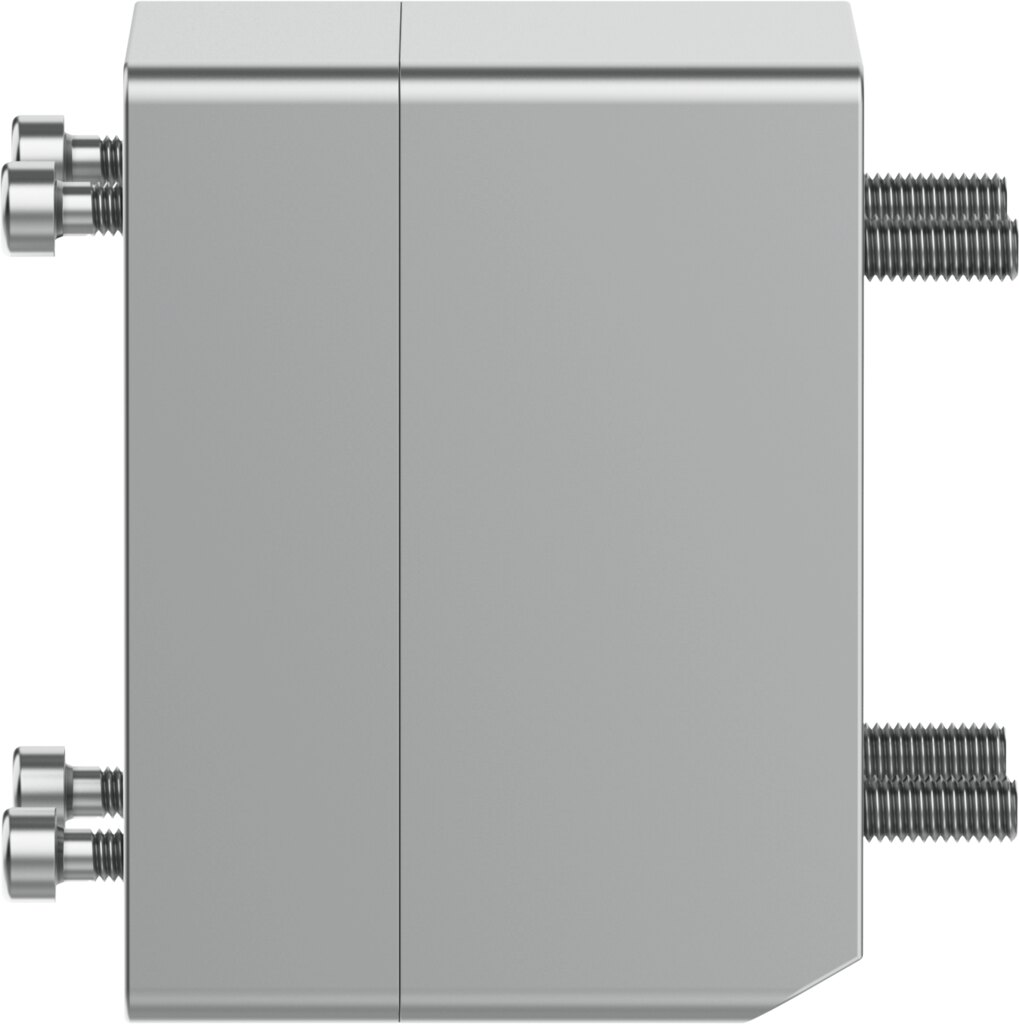

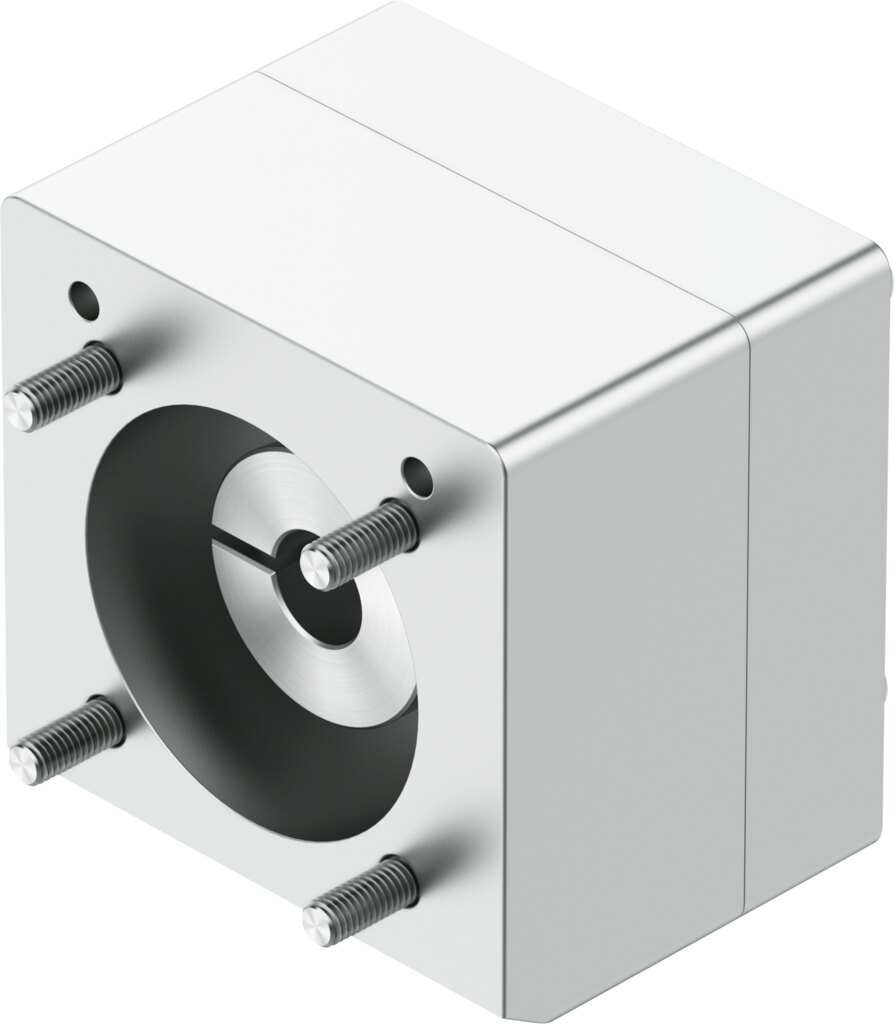

Axial kit for motor mounting, 7.5 Nm, actuator X48, motor 57A EAMM-A-X48-57A - Festo 8165289

Festo ✓ Original product Brand new

The axial kit EAMM-A-X48-57A mounts the motor in line with the electric axis. It transmits up to 7.5 Nm of torque, the part is rated for up to 8000 1/min. The codes X48 (actuator) and 57A (motor) define the match.

Net
€284.61
excl. VAT
Item FES-8165289
Manufacturer no. EAMM-A-X48-57A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The axial kit EAMM-A-X48-57A mounts the motor in line with the electric axis. It transmits up to 7.5 Nm of torque, the part is rated for up to 8000 1/min.

Why this part

  • Transmittable torque 7.5 Nm
  • Speeds up to 8000 1/min
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C
  • Any mounting position

Application

Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-A-X48-57A.

Technical data

TypeEAMM-A-X48-57A
Festo part no.8165289
Transmittable torque7.5 Nm
Max. rotational speed8000 1/min
Interface code, actuatorX48
Interface code, motor in57A
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight614 g
Note on materialsRoHS compliant
Weight0.6 kg
ManufacturerFesto
Hersteller-NrEAMM-A-X48-57A
EAN4052568595647
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
