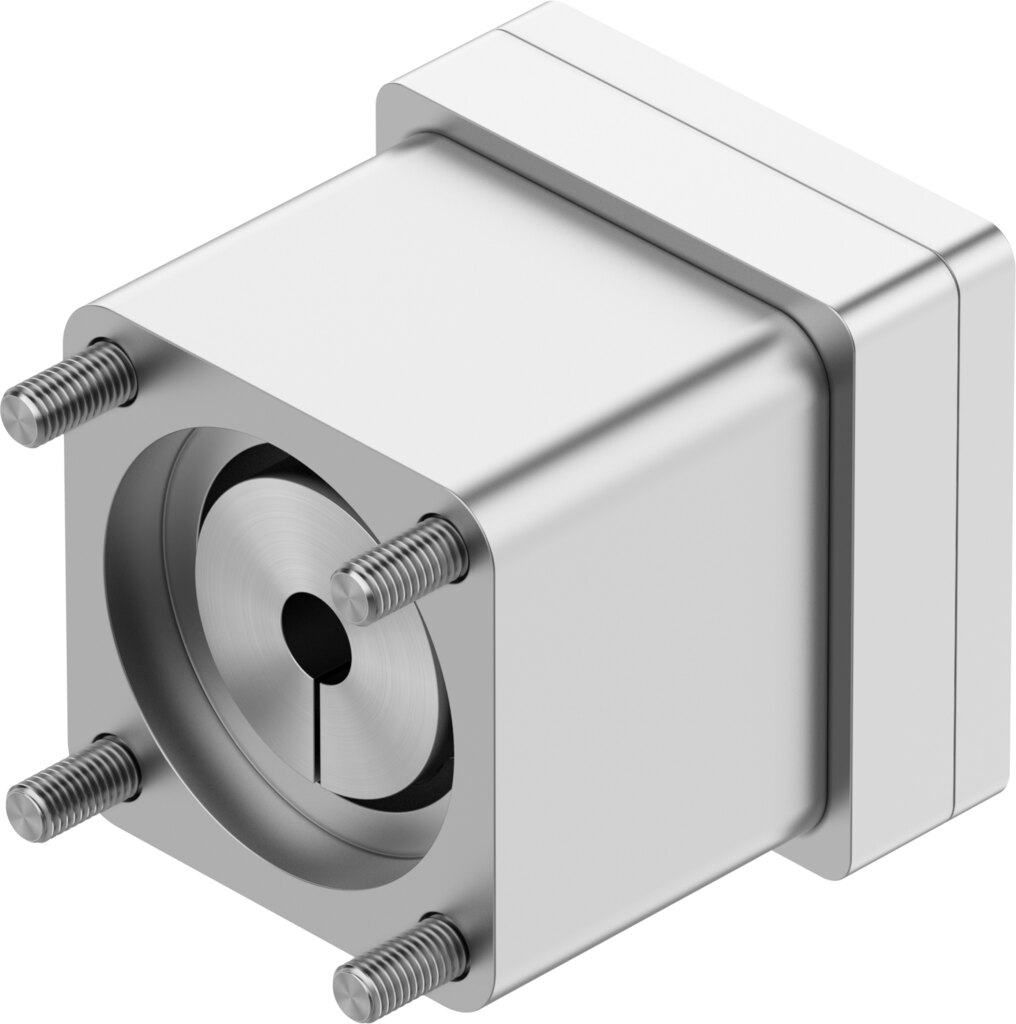

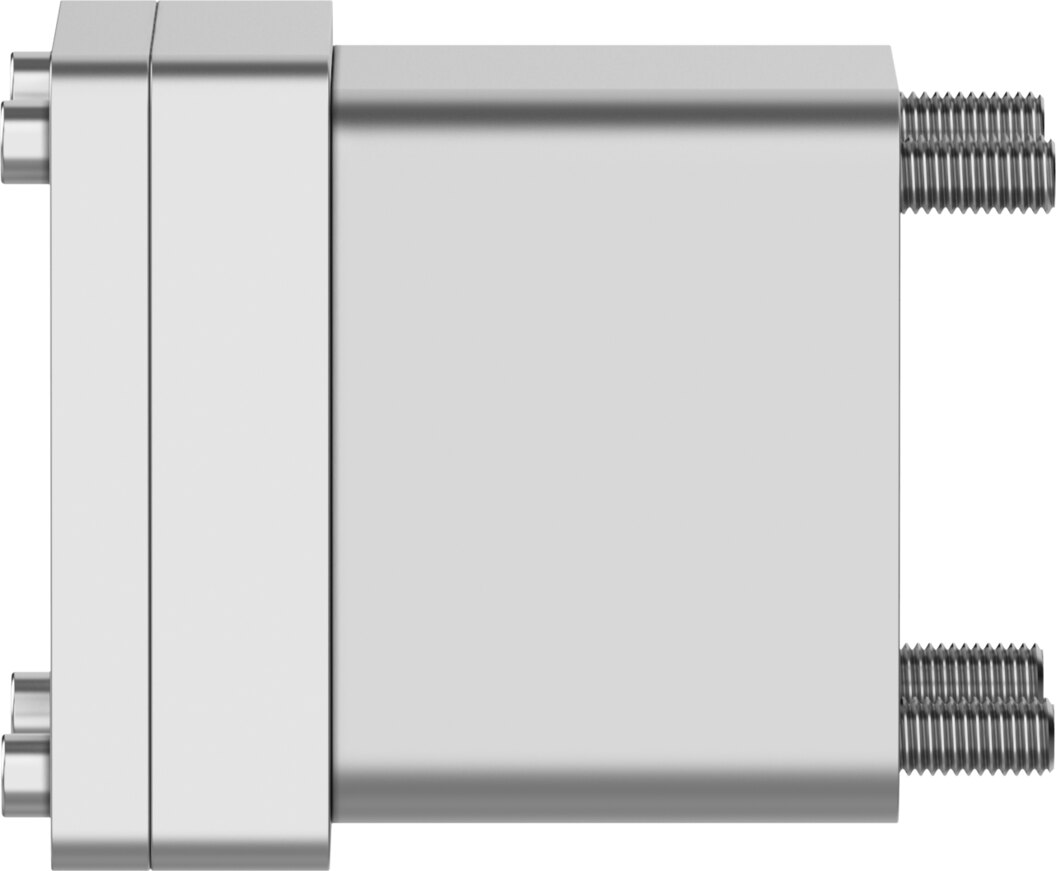

Axial kit for motor mounting, 21 Nm, actuator D60, motor 60G EAMM-A-D60-60G-G3 - Festo 8234788
The axial kit EAMM-A-D60-60G-G3 mounts the motor in line with the electric axis. It transmits up to 21 Nm of torque, speeds of up to 6000 1/min are permitted. The codes D60 (actuator) and 60G (motor) define the match.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The axial kit EAMM-A-D60-60G-G3 mounts the motor in line with the electric axis. It transmits up to 21 Nm of torque, speeds of up to 6000 1/min are permitted.
Why this part
- Transmittable torque 21 Nm
- Speeds up to 6000 1/min
- Mass moment of inertia 34.8 kgmm² for sizing the drive
- Degree of protection IP40, protected against solid objects from 1 mm
- LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
- Ambient temperature -10 to 60 °C
Application
Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-A-D60-60G-G3.
Technical data
| Type | EAMM-A-D60-60G-G3 |
|---|---|
| Festo part no. | 8234788 |
| Nominal length | 75 mm |
| Transmittable torque | 21 Nm |
| Max. rotational speed | 6000 1/min |
| Mass moment of inertia | 34.8 kgmm² |
| Interface code, actuator | D60 |
| Interface code, motor in | 60G |
| Degree of protection | IP40 |
| Mounting position | Any |
| Ambient temperature | -10 to 60 °C |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95 % |
| LABS (PWIS) conformity | VDMA 24364-B2-L |
| Product weight | 1210 g |
| Note on materials | RoHS compliant |
| Weight | 1.3 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-A-D60-60G-G3 |
| EAN | 4052568780159 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
