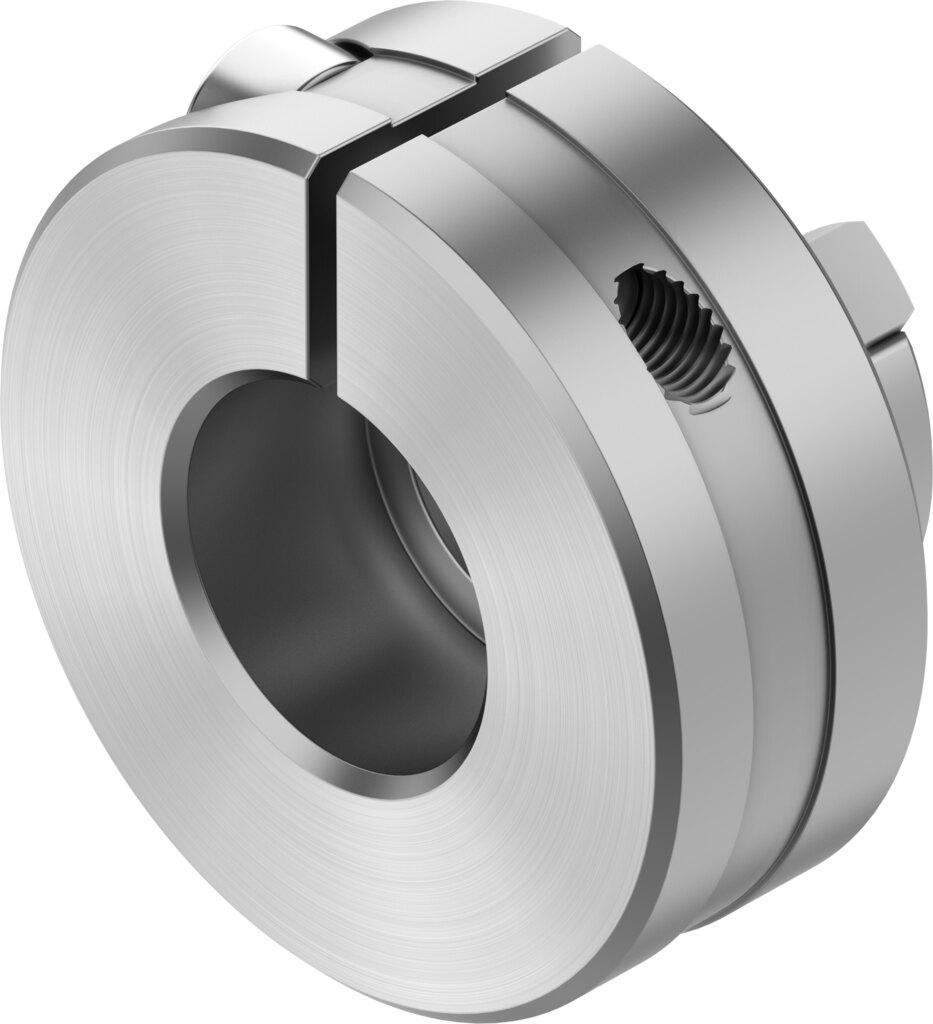

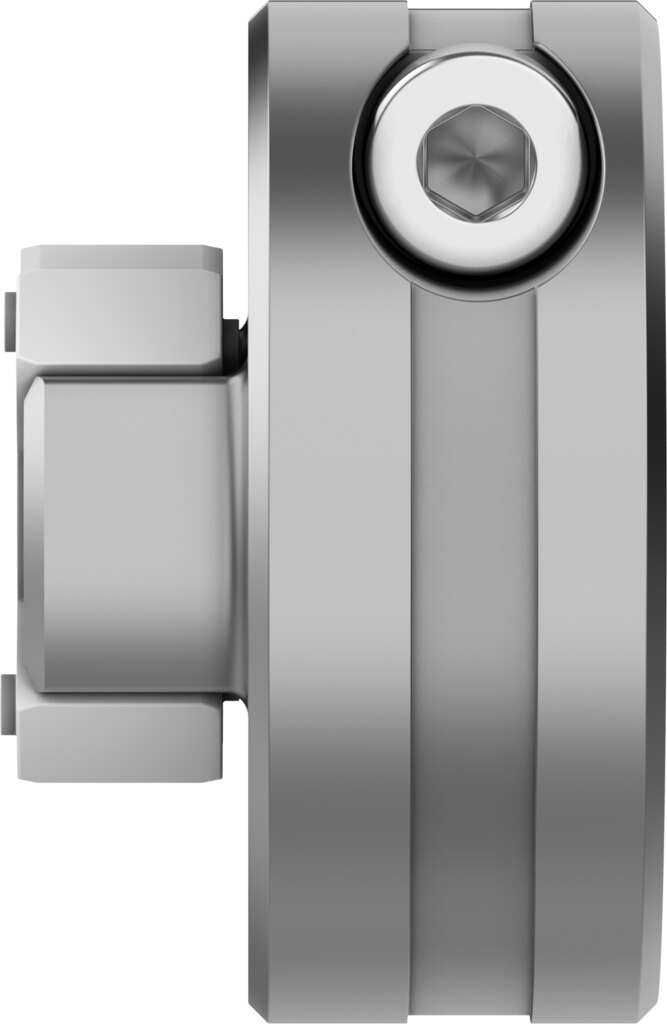

Coupling hub for motor mounting Ø 11 mm, size 15/25 EAMC-H-25-10-GB8-11 - Festo 8228652

Festo ✓ Original product Brand new

The hub EAMC-H-25-10-GB8-11 takes up the shaft and transmits the torque into the coupling. The mounting diameter is 11 mm. Up to 2 Nm of torque is transmitted, speeds of up to 10000 1/min are permitted.

Net
€46.92
excl. VAT
Item FES-8228652
Manufacturer no. EAMC-H-25-10-GB8-11
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The hub EAMC-H-25-10-GB8-11 takes up the shaft and transmits the torque into the coupling. Up to 2 Nm of torque is transmitted, speeds of up to 10000 1/min are permitted.

Benefits

  • Transmittable torque 2 Nm
  • Speeds up to 10000 1/min
  • Mass moment of inertia 1.04 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

EAMC-H-25-10-GB8-11 is fitted when mounting motors to Festo electric axes, in new designs or as a replacement. The Festo data for EAMC-H-25-10-GB8-11 in the table are decisive for selection.

Technical data

TypeEAMC-H-25-10-GB8-11
Festo part no.8228652
Size15/25
Nominal length15.4 mm
Mounting diameter 111 mm
Transmittable torque2 Nm
Max. rotational speed10000 1/min
Mass moment of inertia1.04 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight12 g
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMC-H-25-10-GB8-11
EAN4052568770013
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMC
Bore (mm)11
Temperature (max.)60
