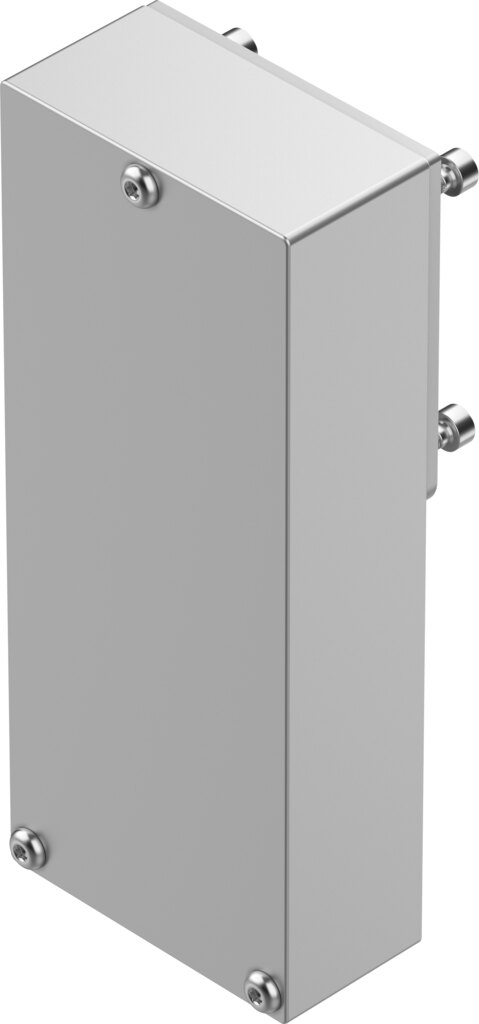

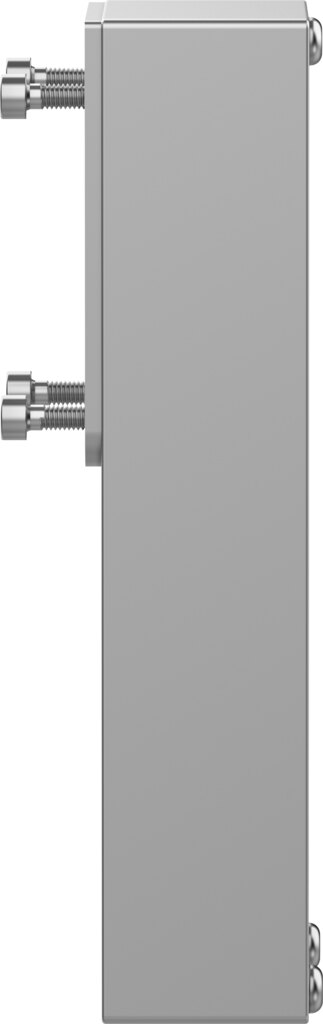

Parallel kit motor interface 60P, 3 Nm EAMM-U-65-T42-60P-87 - Festo 4784301
The Festo parallel kit EAMM-U-65-T42-60P-87 places the motor parallel to the actuator and so shortens the overall length of the unit. Transmittable torque of 3 Nm for sizing the drive train, plus clear matching via interface codes T42 (actuator) and 60P (motor). Genuine Festo accessory.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The parallel kit EAMM-U-65-T42-60P-87 places the motor parallel to the actuator and so shortens the overall length of the unit. Decisive for selection: motor interface 60P, 3 Nm, actuator T42.
Benefits
- Transmittable torque of 3 Nm for sizing the drive train
- Clear matching via interface codes T42 (actuator) and 60P (motor)
- Ratio 1:1 at a shaft centre distance of 87 mm
- Speeds up to 3000 1/min permitted
- 41.2 kgmm² mass moment of inertia, ready for the drive calculation
- Frictional torque of 0.22 Nm for the torque budget
Application
Before ordering, check that the motor carries interface code 60P and the actuator matches T42. The parallel layout of the EAMM-U-65-T42-60P-87 suits installations with little space behind the actuator. EAMM-U-65-T42-60P-87 can be installed in any mounting position at ambient temperatures of 0 to 50 °C.
Technical data
| Feature | Value |
|---|---|
| Type | EAMM-U-65-T42-60P-87 |
| Festo part number | 4784301 |
| Size | 65 |
| Centre-to-centre distance | 87 mm |
| Mounting position | any |
| Gear ratio | 1:1 |
| Max. rotational speed | 3000 1/min |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | 0 to 95 % |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 50 °C |
| Mass moment of inertia | 41.2 kgmm² |
| Frictional torque independent of load | 0.22 Nm |
| Transmittable torque | 3 Nm |
| Product weight | 583 g |
| Interface code, actuator | T42 |
| Interface code, motor in | 60P |
| Note on materials | RoHS compliant |
| Weight | 0.65 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-U-65-T42-60P-87 |
| EAN | 4052568292034 |
| Zolltarifnummer | 84839089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
