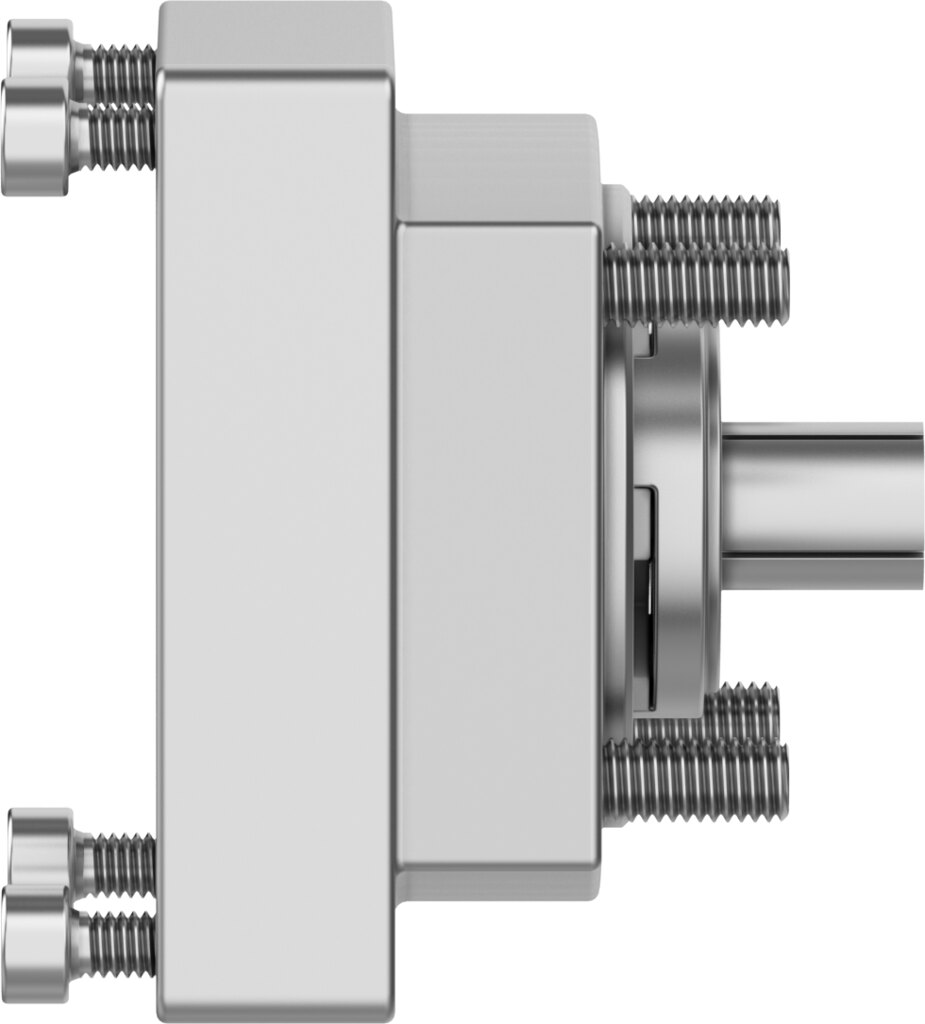

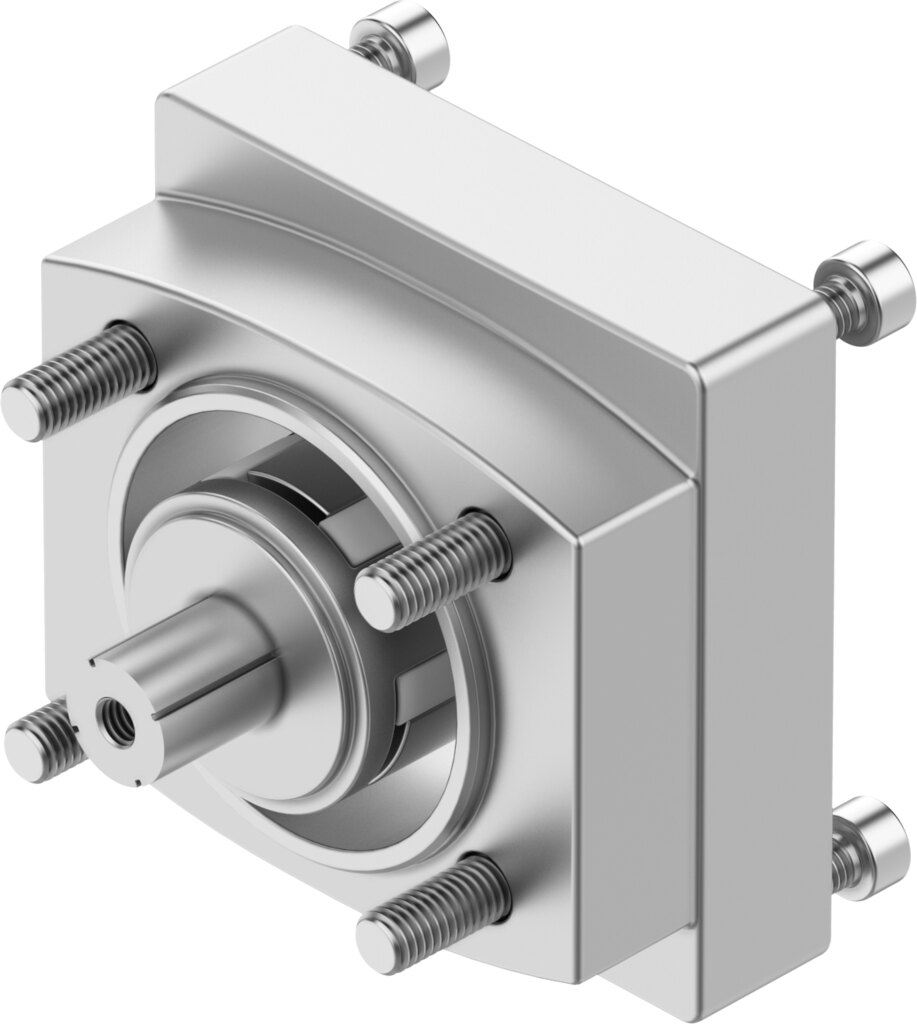

Axial kit for motor mounting, 3.6 Nm, actuator L38, motor 57A EAMM-A-L38-57A-G2 - Festo 8197461

Festo ✓ Original product Brand new

For axial motor mounting with motor and axis in line, the axial kit EAMM-A-L38-57A-G2 is the matching part. It transmits up to 3.6 Nm of torque, the maximum speed is 8000 1/min. Matches actuator interface L38 and motor interface 57A.

Net
€140.76
excl. VAT
Item FES-8197461
Manufacturer no. EAMM-A-L38-57A-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For axial motor mounting with motor and axis in line, the axial kit EAMM-A-L38-57A-G2 is the matching part. It transmits up to 3.6 Nm of torque, the maximum speed is 8000 1/min.

Why this part

  • Transmittable torque 3.6 Nm
  • Speeds up to 8000 1/min
  • Mass moment of inertia 3.2 kgmm² for sizing the drive
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

EAMM-A-L38-57A-G2 is fitted when mounting motors to Festo electric axes, in new designs or as a replacement. The Festo data for EAMM-A-L38-57A-G2 in the table are decisive for selection.

Technical data

TypeEAMM-A-L38-57A-G2
Festo part no.8197461
Nominal length26 mm
Transmittable torque3.6 Nm
Max. rotational speed8000 1/min
Mass moment of inertia3.2 kgmm²
Interface code, actuatorL38
Interface code, motor in57A
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight171 g
Note on materialsRoHS compliant
Weight0.21 kg
ManufacturerFesto
Hersteller-NrEAMM-A-L38-57A-G2
EAN4052568648763
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
