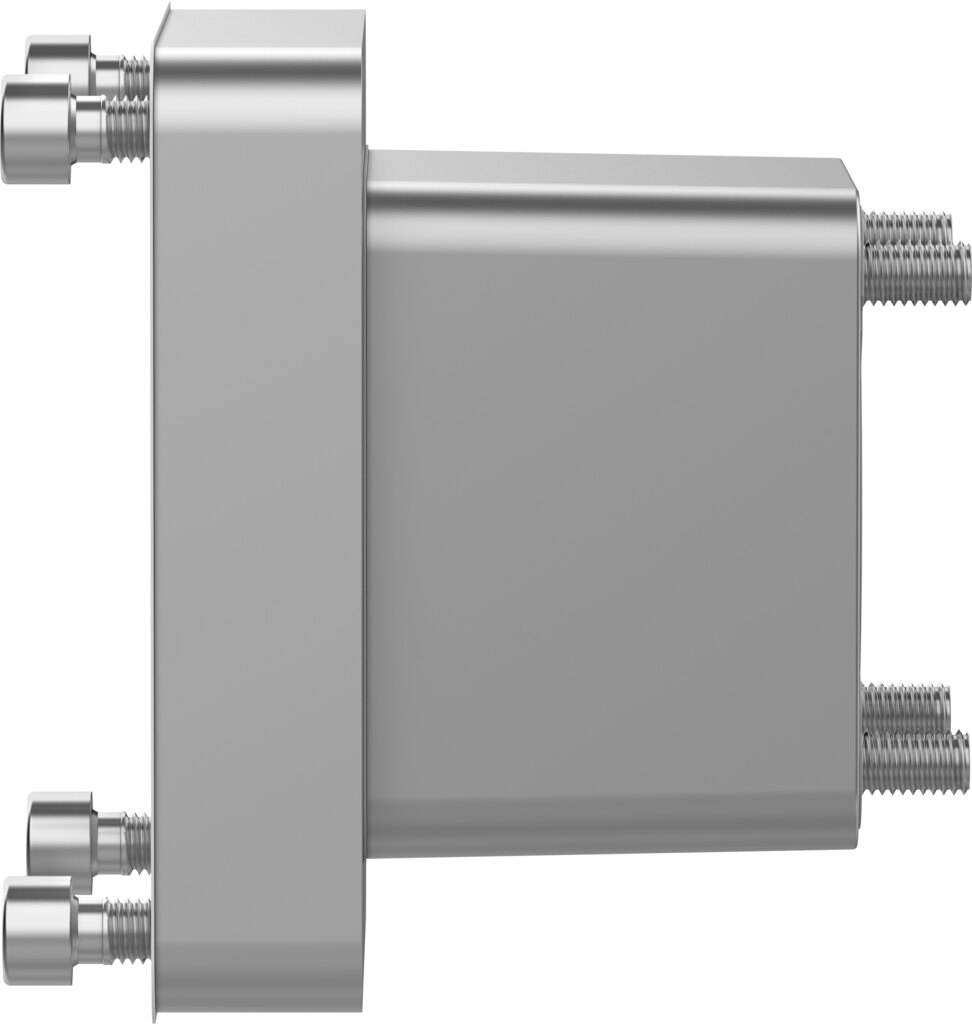

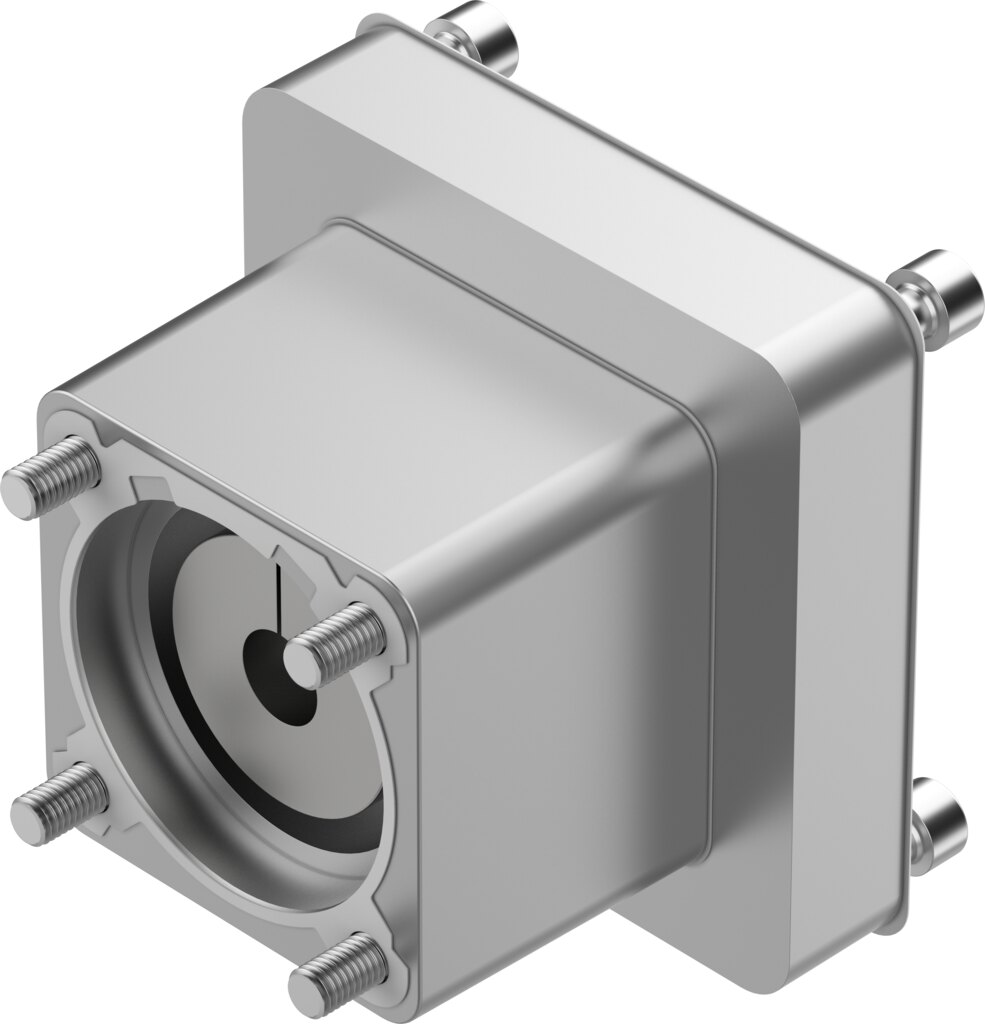

Axial kit for motor mounting, actuator D80, motor 140A or 150A, 60 Nm EAMM-A-D80-150A-S1 - Festo 8157274
For axial motor mounting on drives with interface D80: the kit EAMM-A-D80-150A-S1 takes motors with code 140A or 150A and transmits a torque of up to 60 Nm. Speed up to 5500 1/min, degree of protection IP65. Mass moment of inertia 128 kgmm².
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
60 Nm transmittable torque, degree of protection IP65 and matching interfaces for actuator D80 and motor 140A or 150A: with the axial kit EAMM-A-D80-150A-S1 motor mounting is done without designing your own adapter.
Benefits
- Transmittable torque 60 Nm between motor and drive
- Speed up to 5500 1/min
- Mass moment of inertia 128 kgmm² as input for drive sizing
- Interfaces actuator D80, motor 140A or 150A
- Degree of protection IP65, ambient temperature -10 to 60 °C
Applications
When sizing the axis, the mass moment of inertia of 128 kgmm² and the transmittable torque of 60 Nm feed into the choice of motor and controller. The kit is mounted between motor (140A or 150A) and drive (D80).
Technical data
| Nominal length | 103.5 mm |
|---|---|
| Mounting position | Any |
| Max. rotational speed | 5500 1/min |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95% |
| Degree of protection | IP65 |
| Ambient temperature | -10 to 60 °C |
| Mass moment of inertia | 128 kgmm² |
| Transmittable torque | 60 Nm |
| Product weight | 3068 g |
| Interface code, actuator | D80 |
| Interface code, motor in | 140A, 150A |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-A-D80-150A-S1 |
| EAN | 4052568596972 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP65 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
