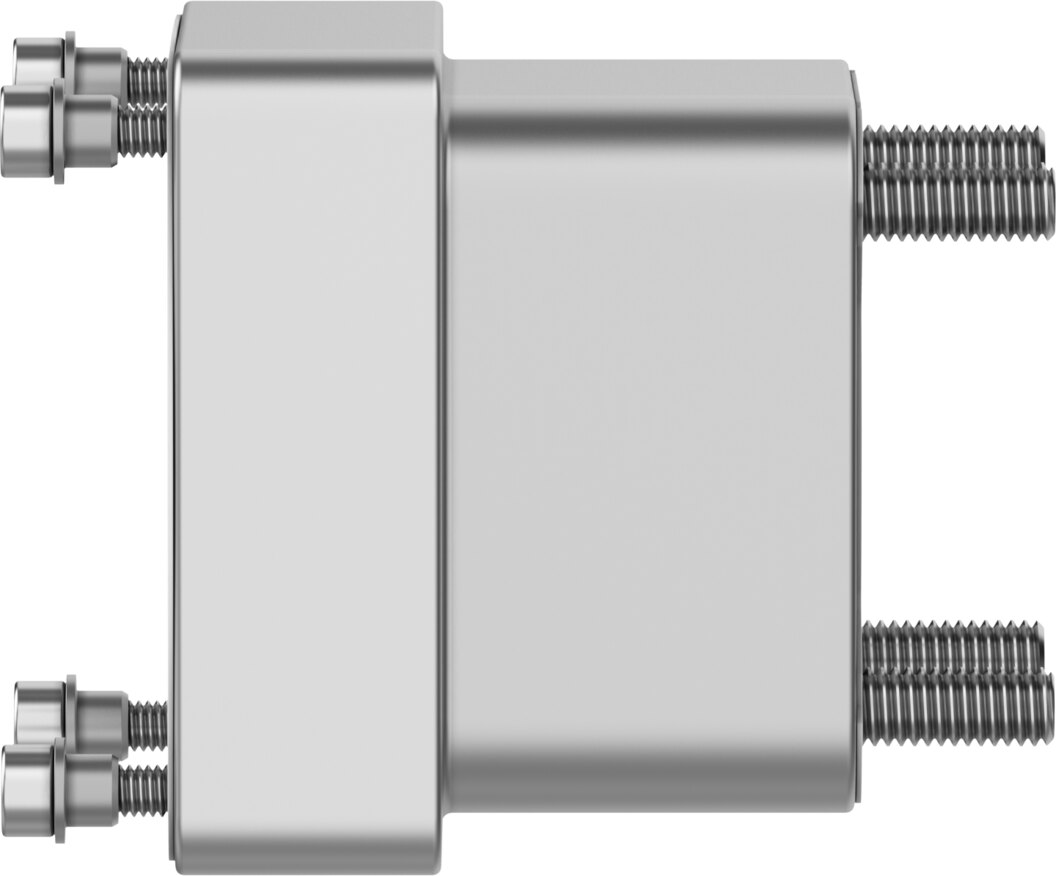

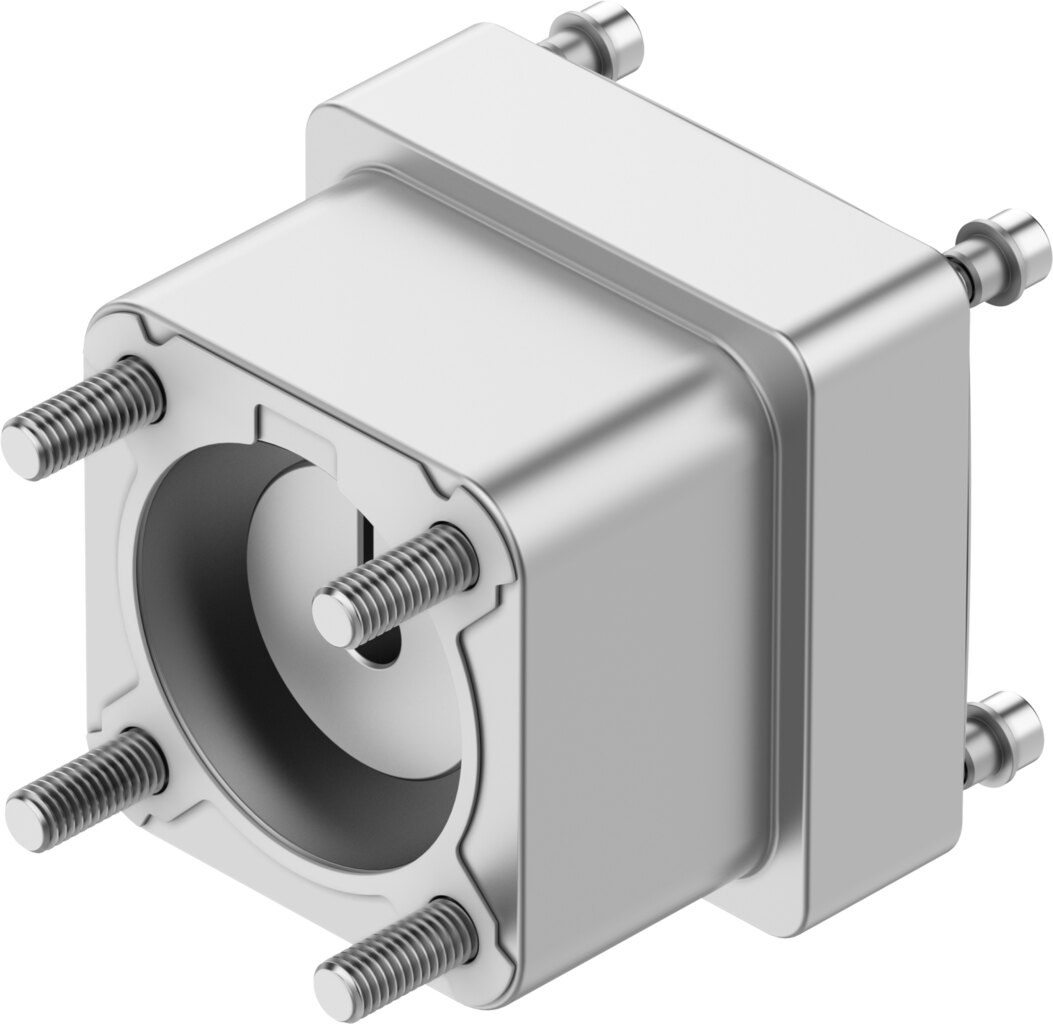

Axial kit for motor mounting, 12.5 Nm, actuator D40, motor 60P, 60PA EAMM-A-D40-60P-S1-G2 - Festo 8197497

Festo ✓ Original product Brand new

For axial motor mounting with motor and axis in line, the axial kit EAMM-A-D40-60P-S1-G2 is the matching part. Up to 12.5 Nm of torque is transmitted, speeds of up to 8000 1/min are permitted. Actuator interface code D40, motor side 60P, 60PA.

Net
€217.00
excl. VAT
Item FES-8197497
Manufacturer no. EAMM-A-D40-60P-S1-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For axial motor mounting with motor and axis in line, the axial kit EAMM-A-D40-60P-S1-G2 is the matching part. Up to 12.5 Nm of torque is transmitted, speeds of up to 8000 1/min are permitted.

Why this part

  • Transmittable torque 12.5 Nm
  • Speeds up to 8000 1/min
  • Mass moment of inertia 5.87 kgmm² for sizing the drive
  • Degree of protection IP65, dust-tight and protected against water jets
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

Used when mounting a motor to a Festo electric axis, as original equipment or as a spare part. The table data come from Festo and apply to EAMM-A-D40-60P-S1-G2.

Technical data

TypeEAMM-A-D40-60P-S1-G2
Festo part no.8197497
Nominal length52 mm
Transmittable torque12.5 Nm
Max. rotational speed8000 1/min
Mass moment of inertia5.87 kgmm²
Interface code, actuatorD40
Interface code, motor in60P, 60PA
Degree of protectionIP65
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight340 g
Note on materialsRoHS compliant
Weight0.4 kg
ManufacturerFesto
Hersteller-NrEAMM-A-D40-60P-S1-G2
EAN4052568646592
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP65
Temperaturbereich-10-60 °C
Temperature (max.)60
