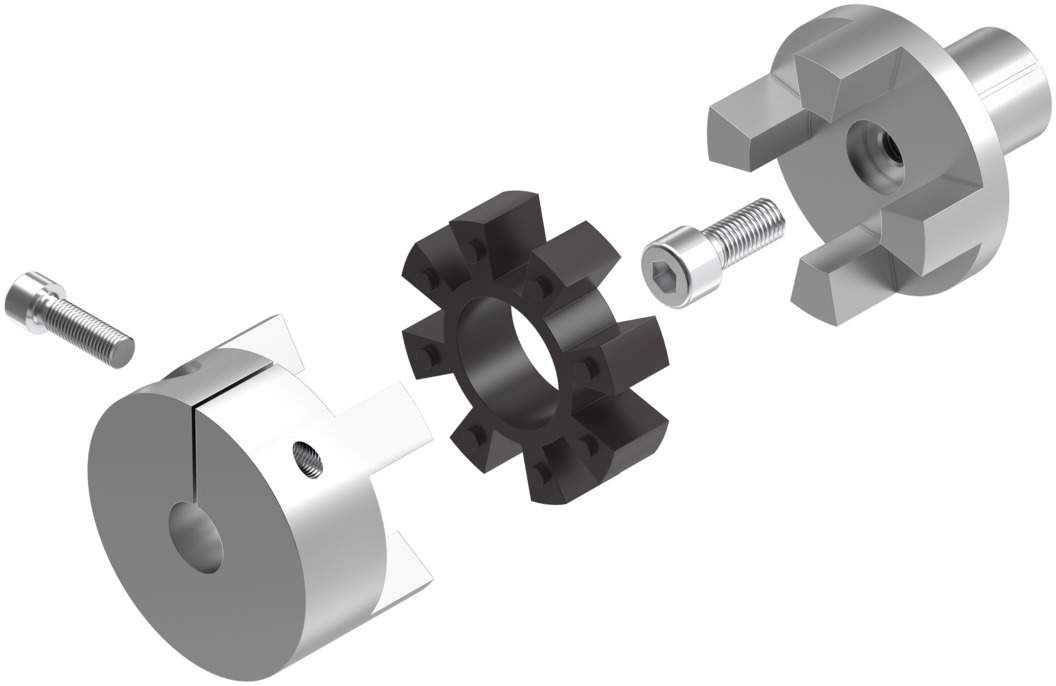

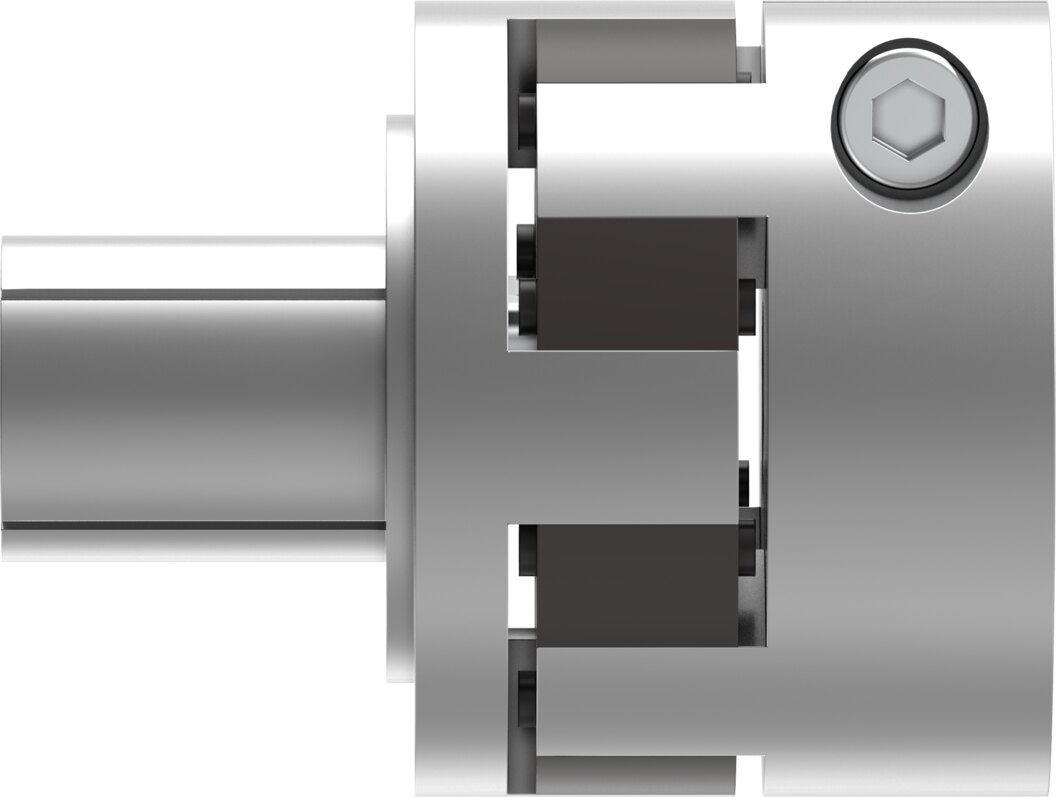

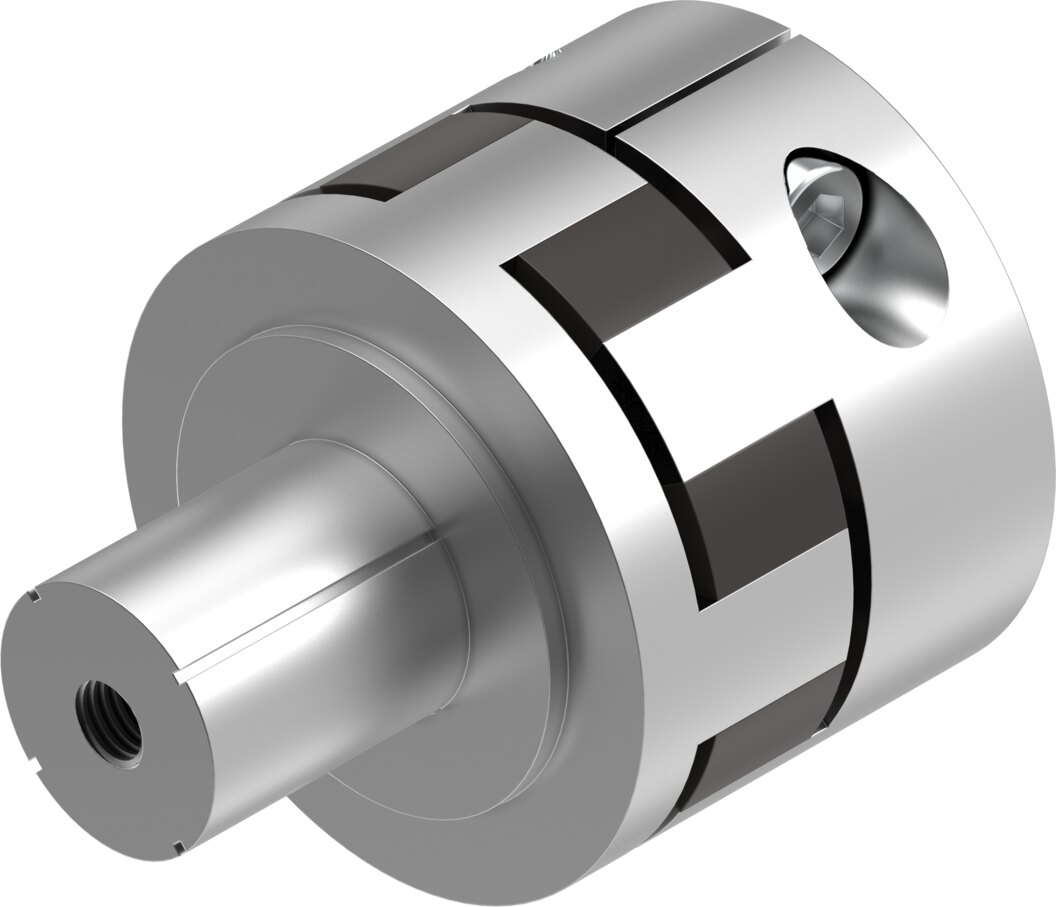

Coupling for motor mounting Ø 19/23 mm, 60 Nm EAMD-56-46-19-23X27-U - Festo 8164975

Festo ✓ Original product Brand new

The coupling EAMD-56-46-19-23X27-U transmits torque from the motor to the drive shaft of the axis. The mounting diameters are 19 mm and 23 mm. Up to 60 Nm of torque is transmitted, speeds of up to 5500 1/min are permitted.

Net
€162.64
excl. VAT
Item FES-8164975
Manufacturer no. EAMD-56-46-19-23X27-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The coupling EAMD-56-46-19-23X27-U transmits torque from the motor to the drive shaft of the axis. Up to 60 Nm of torque is transmitted, speeds of up to 5500 1/min are permitted.

Key benefits

  • Transmittable torque 60 Nm
  • Speeds up to 5500 1/min
  • Mass moment of inertia 151 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

EAMD-56-46-19-23X27-U is fitted when mounting motors to Festo electric axes, in new designs or as a replacement. The Festo data for EAMD-56-46-19-23X27-U in the table are decisive for selection.

Technical data

TypeEAMD-56-46-19-23X27-U
Festo part no.8164975
Size56
Nominal length46 mm
Mounting diameter 119 mm
Mounting diameter 223 mm
Transmittable torque60 Nm
Max. rotational speed5500 1/min
Mass moment of inertia151 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight418 g
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMD-56-46-19-23X27-U
EAN4052568596286
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMD
Bore (mm)19
Temperature (max.)60
