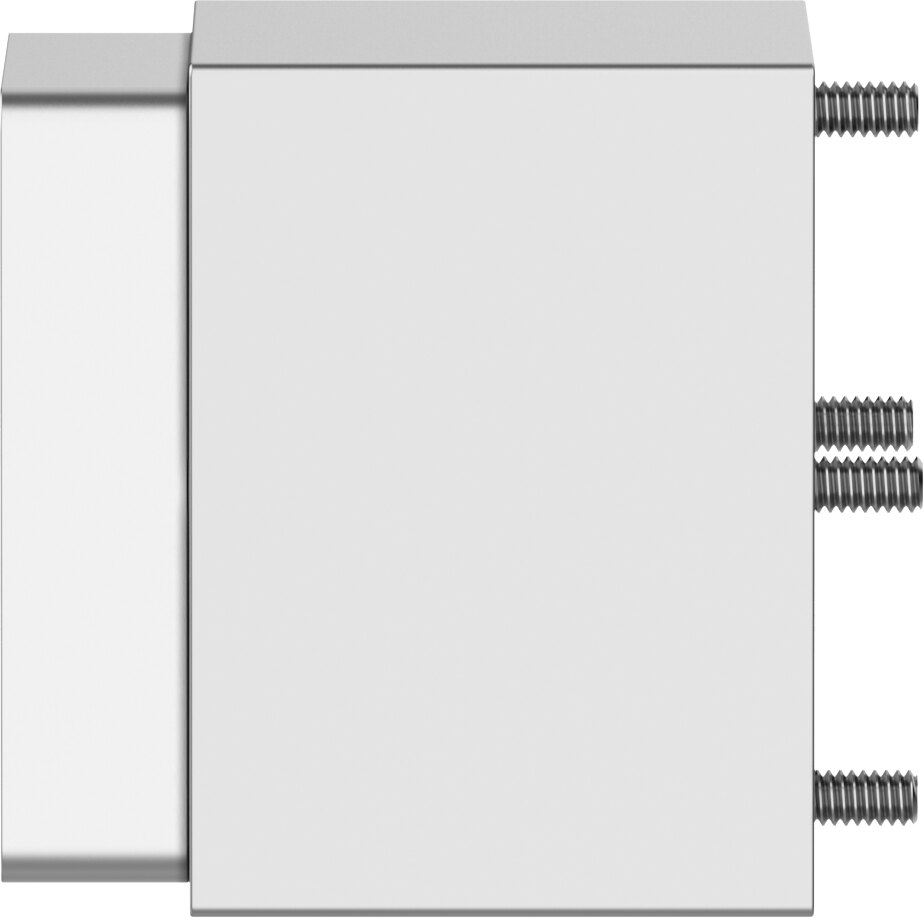

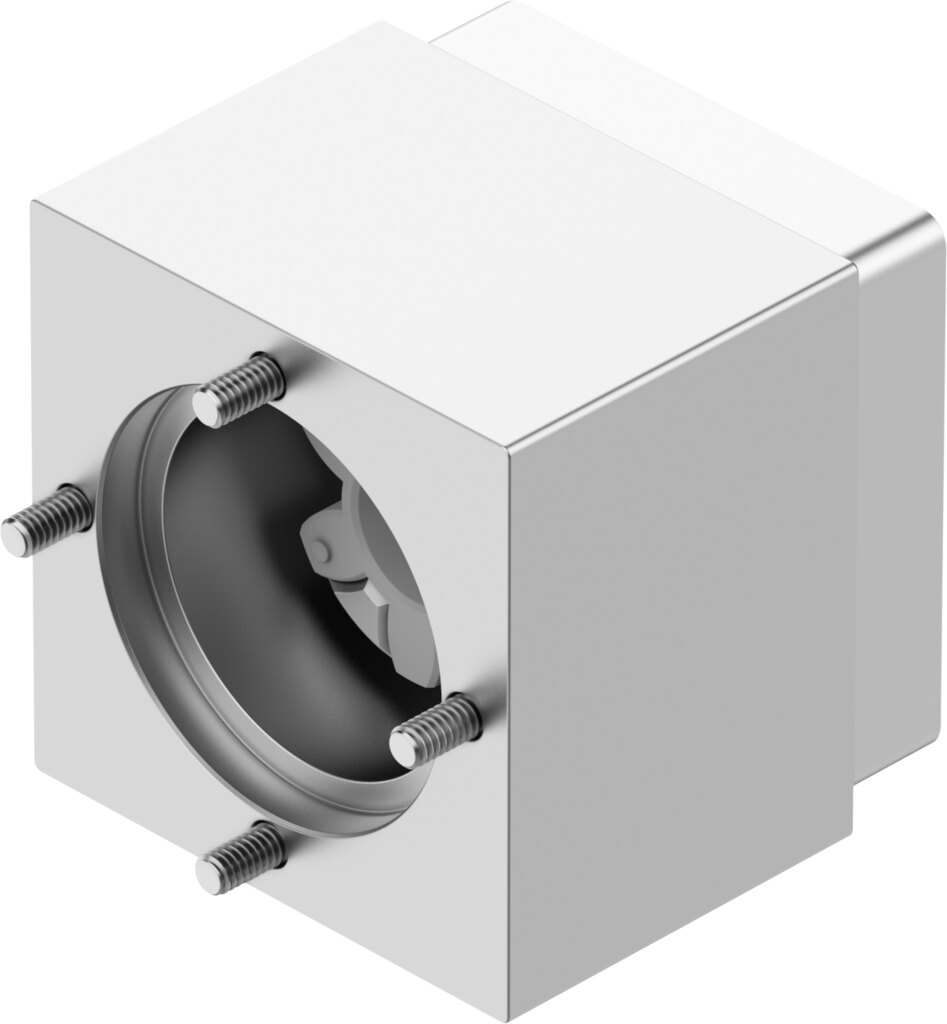

Axial kit for motor mounting, 9.5 Nm, actuator T42, motor 40G, 40GA EAMM-A-T42-40G - Festo 8217450

Festo ✓ Original product Brand new

For axial motor mounting with motor and axis in line, the axial kit EAMM-A-T42-40G is the matching part. The transmittable torque is 9.5 Nm, the maximum speed is 8000 1/min. Matches actuator interface T42 and motor interface 40G, 40GA.

Net
€99.36
excl. VAT
Item FES-8217450
Manufacturer no. EAMM-A-T42-40G
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For axial motor mounting with motor and axis in line, the axial kit EAMM-A-T42-40G is the matching part. The transmittable torque is 9.5 Nm, the maximum speed is 8000 1/min.

Why this part

  • Transmittable torque 9.5 Nm
  • Speeds up to 8000 1/min
  • Mass moment of inertia 3.2 kgmm² for sizing the drive
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-A-T42-40G.

Technical data

TypeEAMM-A-T42-40G
Festo part no.8217450
Nominal length49 mm
Transmittable torque9.5 Nm
Max. rotational speed8000 1/min
Mass moment of inertia3.2 kgmm²
Interface code, actuatorT42
Interface code, motor in40G, 40GA
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight402 g
Note on materialsRoHS compliant
Weight0.45 kg
ManufacturerFesto
Hersteller-NrEAMM-A-T42-40G
EAN4052568661601
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
