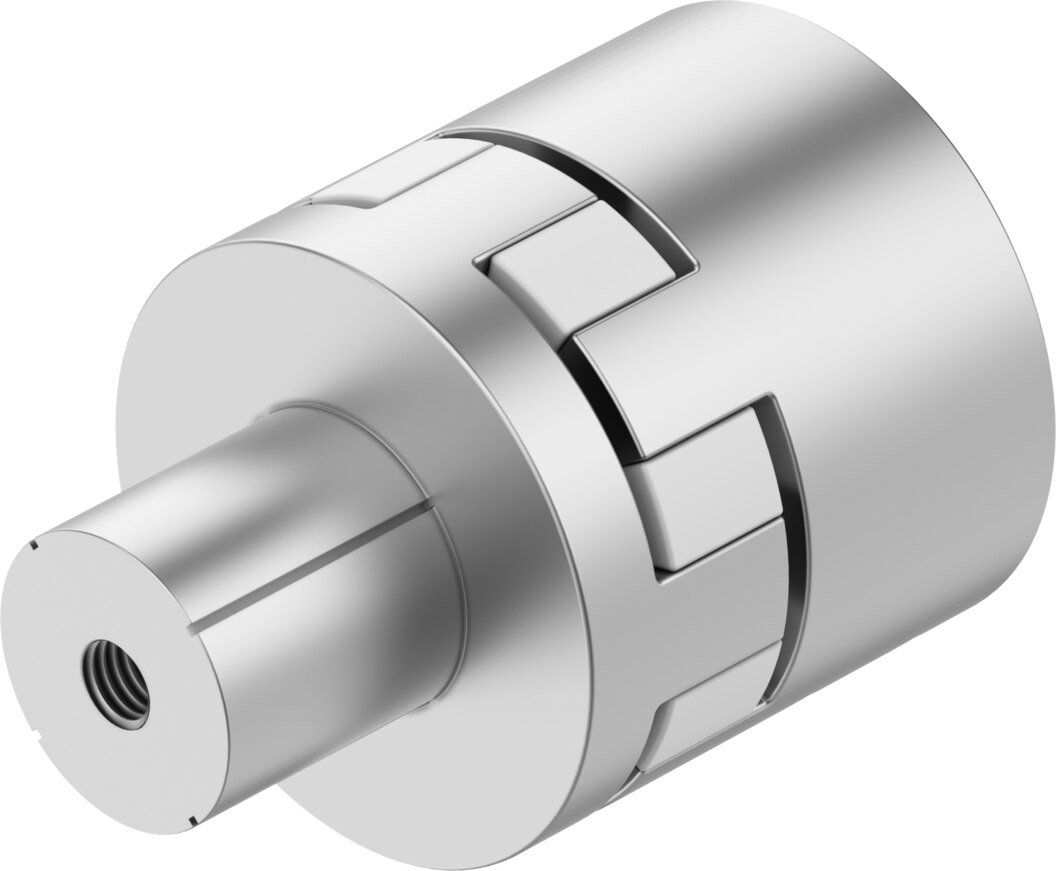

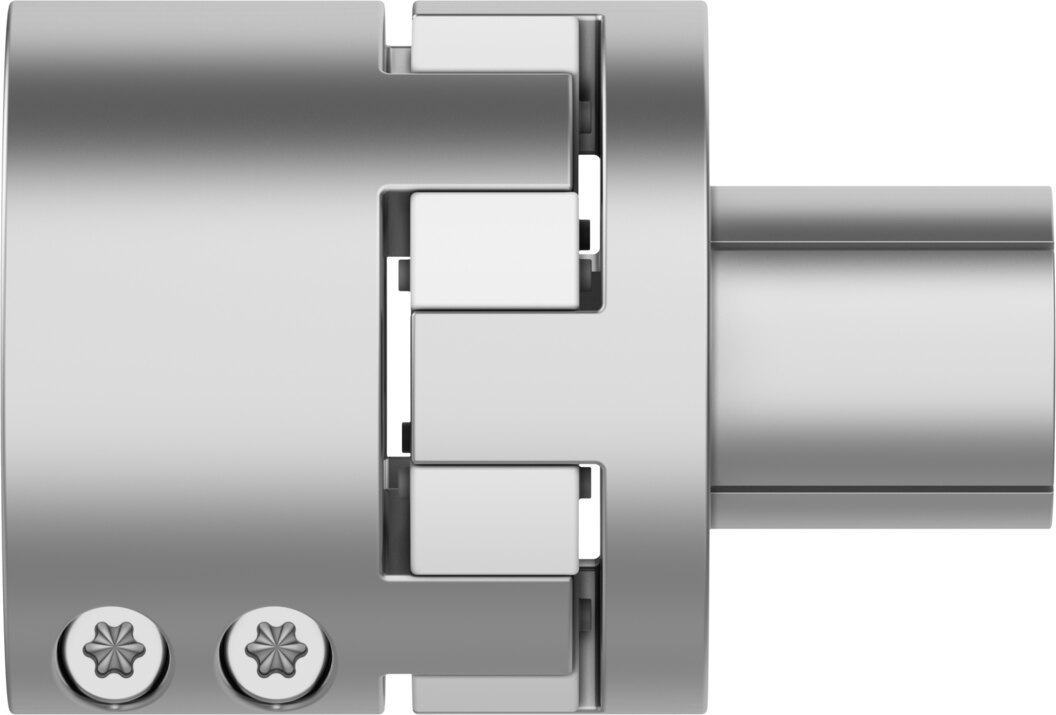

Coupling for motor mounting Ø 40/32 mm, 200 Nm EAMD-67-65-40-32X32-U - Festo 8196714

Festo ✓ Original product Brand new

Fitted between motor shaft and axis shaft, the coupling EAMD-67-65-40-32X32-U transmits the drive torque. The mounting diameters are 40 mm and 32 mm. The transmittable torque is 200 Nm, speeds of up to 4500 1/min are permitted.

Net
€246.33
excl. VAT
Item FES-8196714
Manufacturer no. EAMD-67-65-40-32X32-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Fitted between motor shaft and axis shaft, the coupling EAMD-67-65-40-32X32-U transmits the drive torque. The transmittable torque is 200 Nm, speeds of up to 4500 1/min are permitted.

Why this part

  • Transmittable torque 200 Nm
  • Speeds up to 4500 1/min
  • Mass moment of inertia 430 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

EAMD-67-65-40-32X32-U is fitted when mounting motors to Festo electric axes, in new designs or as a replacement. The Festo data for EAMD-67-65-40-32X32-U in the table are decisive for selection.

Technical data

TypeEAMD-67-65-40-32X32-U
Festo part no.8196714
Size67
Nominal length65 mm
Mounting diameter 140 mm
Mounting diameter 232 mm
Transmittable torque200 Nm
Max. rotational speed4500 1/min
Mass moment of inertia430 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight787 g
Note on materialsRoHS compliant
Weight0.85 kg
ManufacturerFesto
Hersteller-NrEAMD-67-65-40-32X32-U
EAN4052568642402
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMD
Bore (mm)40
Temperature (max.)60
