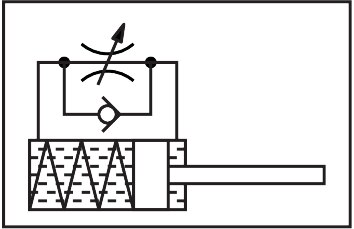

Shock absorber, self-adjusting, size 7, stroke 5 mm, 2 J per stroke DYSS-G8-7-5-Y1F - Festo 8073915

The DYSS-G8-7-5-Y1F absorbs up to 2 J per stroke and 12000 J per hour, protecting drives, stops and workpieces from hard end-position impacts. No adjustment is needed on the DYSS in size 7 because the cushioning adapts itself to the load.

Benefits

• Energy absorption up to 2 J per stroke and 12000 J per hour
• Impact speed up to 1.5 m/s, mass range up to 5.5 kg
• Stop force up to 300 N, residual energy max. 0.01 J
• Return time 0.2 s, return force 1.2 N
• Housing in high-alloy steel, CRC 2

Applications

The absorber sits at end stops of linear and swivel motions and protects both the mechanism and the workpiece. The DYSS-G8-7-5-Y1F is rated for -10 to 80 °C ambient temperature, any mounting position.
