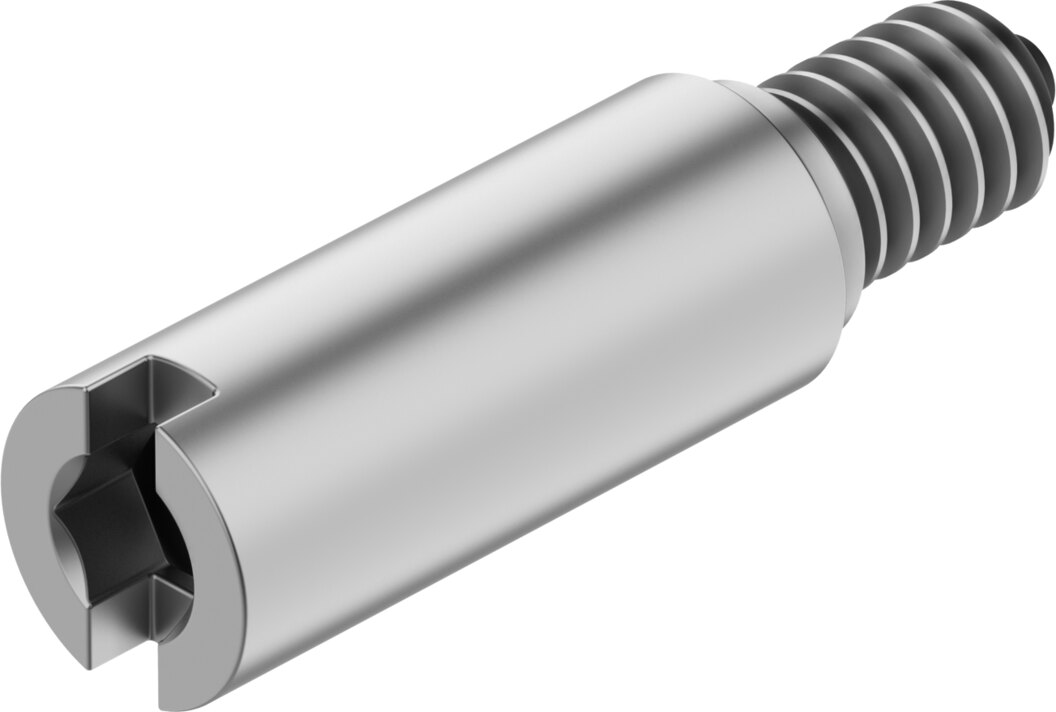

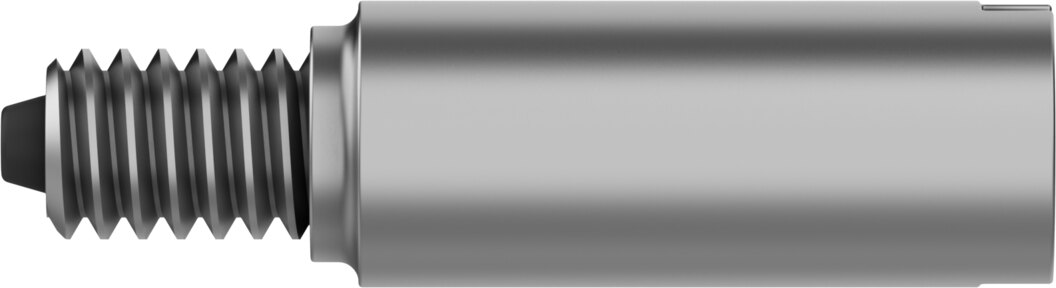

Shock absorber, elastic, without fixed stop, thread M4, stroke 0.9 mm, 0.015 J per stroke DYEF-G8-S-M4-Y1 - Festo 8159470

With 0.015 J energy absorption per stroke, the DYEF in thread M4 catches moving masses at the end of stroke, impact speed up to 0.8 m/s. Without a metal fixed stop, the elastomer of the DYEF-G8-S-M4-Y1 cushions the impact over 0.9 mm.

Benefits

• Energy absorption up to 0.015 J per stroke
• Impact speed up to 0.8 m/s
• Mounting via thread M4, tightening torque max. 0.5 Nm
• Housing in high-alloy steel, CRC 2

Applications

The DYEF is used on linear axes, rotary actuators, grippers and stops where masses should come to rest at the end of stroke without rebound. The DYEF-G8-S-M4-Y1 is rated for 0 to 60 °C ambient temperature, any mounting position.
