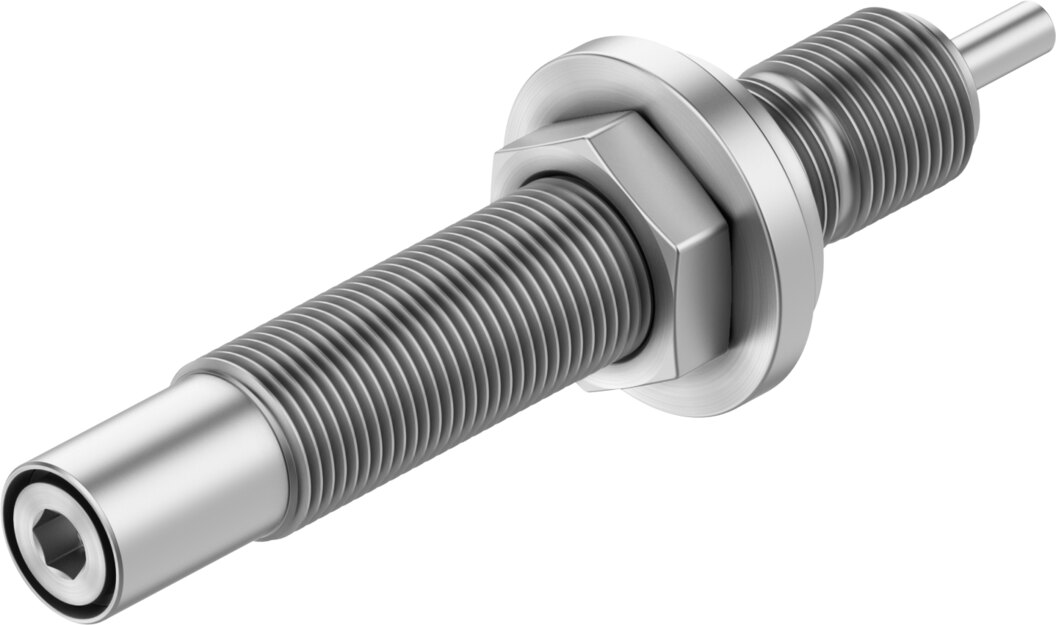

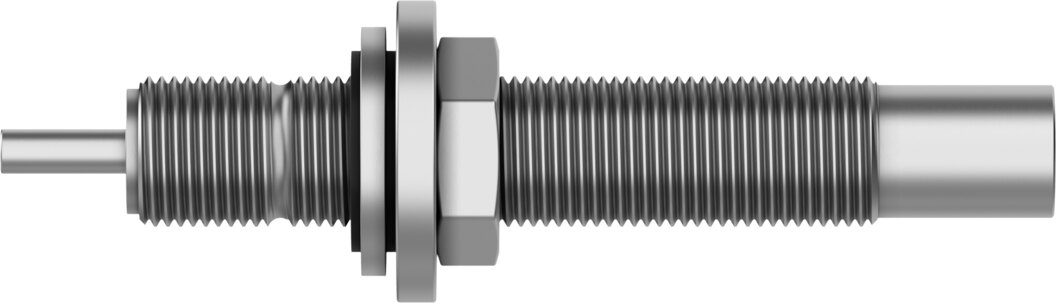

Shock absorber DYSD-Q13-4-4-Y1F-Y9 - Festo 8199038
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 4 |
|---|---|
| Stroke | 4 mm |
| Cushioning | Self-adjusting |
| Mounting position | Any |
| Position detection | None |
| Max. impact speed | 0.5 m/s |
| Reset time at room temperature | 0.2 s |
| Reset time at min. ambient temperature | 1 s |
| Mode of operation | Pushing, Single-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10 ... 60 °C |
| Cushioning length | 4 mm |
| Max. stop force | 110 N |
| Max. tightening torque | 1 Nm |
| Max. energy consumption per stroke | 0.6 J |
| Max. energy consumption per hour | 1440 J |
| Reset force | 3 N |
| Min. insertion force | 18 N |
| Product weight | 6.5 g |
| Load range | 4.8 kg |
| Type of mounting | Via lock nut |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | High-alloy steel |
| Material piston rod | High-alloy steel |
| Material nut | High-alloy steel |
| Weight | 0.013 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DYSD-Q13-4-4-Y1F-Y9 |
| EAN | 4052568678197 |
| Zolltarifnummer | 84879059 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
