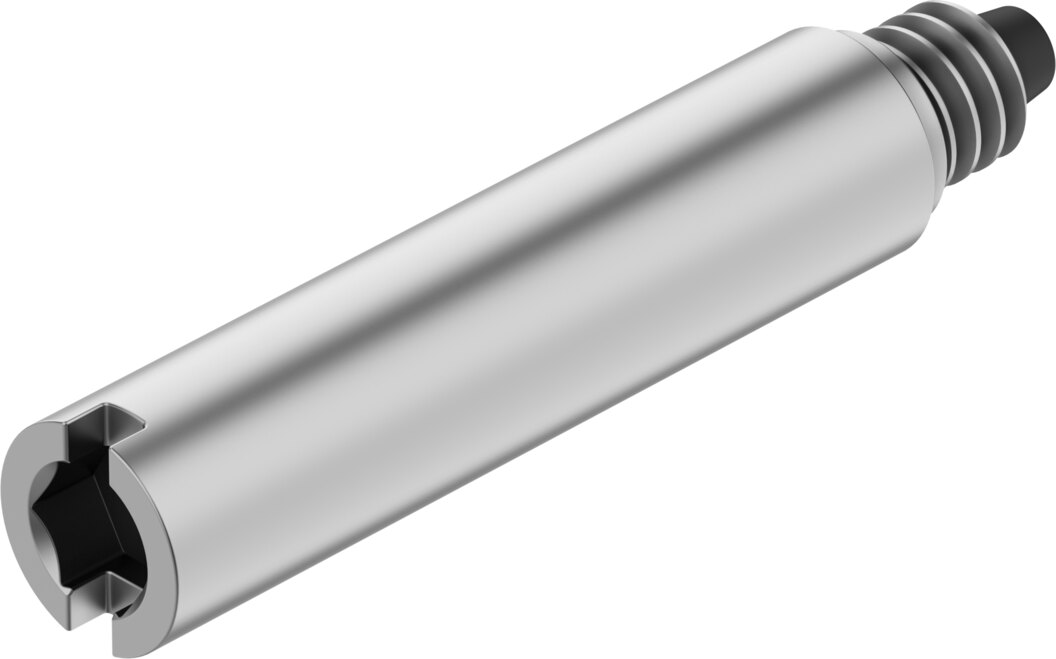

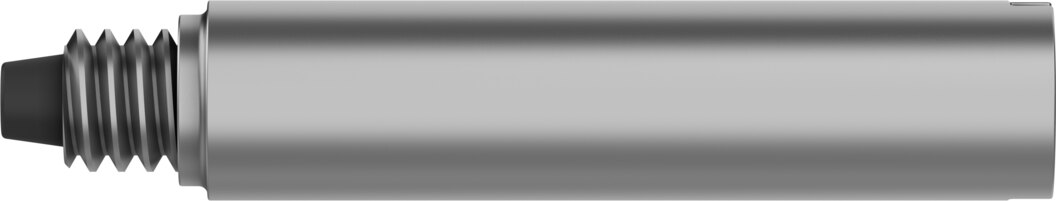

Shock absorber, elastic, without fixed stop, thread M5, stroke 1.5 mm, 0.05 J per stroke DYEF-G8-M5-Y1-F1A - Festo 8131071
The DYEF-G8-M5-Y1-F1A decelerates moving masses at the end position, absorbing up to 0.05 J per stroke, thread M5. Impact speed up to 0.8 m/s, stroke 1.5 mm. Elastic cushioning without fixed stop, housing in high-alloy steel. Corrosion resistance class CRC 2, ambient temperature -10 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The DYEF-G8-M5-Y1-F1A absorbs up to 0.05 J per stroke and cushions end-position impacts over 1.5 mm. Without a metal fixed stop, the elastomer of the DYEF-G8-M5-Y1-F1A cushions the impact over 1.5 mm.
Benefits
- Energy absorption up to 0.05 J per stroke
- Impact speed up to 0.8 m/s
- Mounting via thread M5, tightening torque max. 0.8 Nm
- Housing in high-alloy steel, CRC 2
Applications
The DYEF is used on linear axes, rotary actuators, grippers and stops where masses should come to rest at the end of stroke without rebound. The DYEF-G8-M5-Y1-F1A is rated for -10 to 60 °C ambient temperature, any mounting position.
Technical data
| Order code | DYEF-G8-M5-Y1-F1A |
|---|---|
| Festo part number | 8131071 |
| Size | M5 |
| Stroke | 1.5 mm |
| Cushioning | elastic cushioning rings/pads at both ends without metal fixed stop |
| Mounting position | any |
| Position detection | none |
| Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use, Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Maximum impact speed | 0.8 m/s |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10 to 60 °C |
| Cushioning length | 1.5 mm |
| Maximum tightening torque | 0.8 Nm |
| Maximum energy absorption per stroke | 0.05 J |
| Product weight | 8.4 g |
| Type of mounting | via threaded sleeve |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | high-alloy steel |
| Weight | 0.009 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DYEF-G8-M5-Y1-F1A |
| EAN | 4052568562090 |
| Zolltarifnummer | 84879059 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 1,5 |
| Seal material | NBR |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
