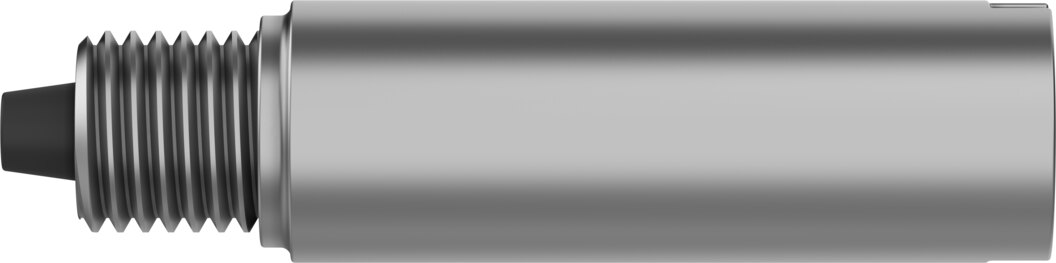

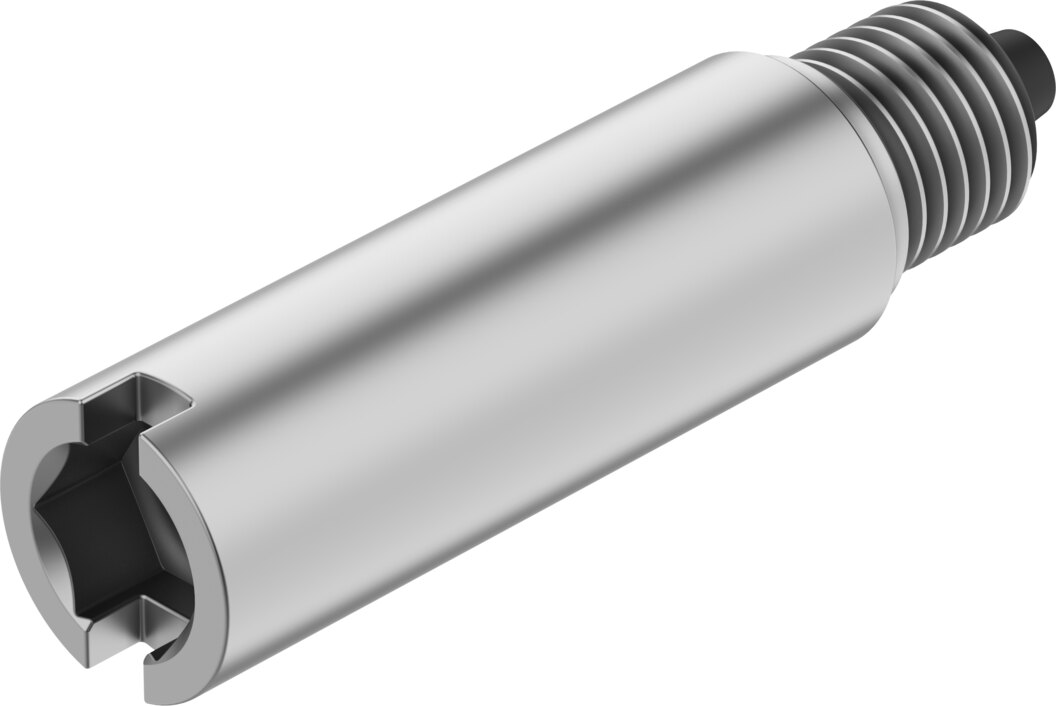

Shock absorber, elastic, with fixed stop, thread M10, stroke 3.7 mm, 0.06 J per stroke DYEF-G8-M10-Y1F - Festo 8160238
For soft end positions: DYEF shock absorber in thread M10 with 0.06 J energy absorption per stroke. Impact speed up to 0.8 m/s, stroke 3.7 mm. Elastic cushioning with fixed stop, housing in high-alloy steel. Corrosion resistance class CRC 2, ambient temperature 0 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The DYEF-G8-M10-Y1F absorbs up to 0.06 J per stroke and cushions end-position impacts over 3.7 mm. A metal fixed stop limits the cushioning travel of the DYEF-G8-M10-Y1F to 3.7 mm and ensures a defined end position.
Benefits
- Energy absorption up to 0.06 J per stroke
- Impact speed up to 0.8 m/s
- Mounting via thread M10, tightening torque max. 3 Nm
- Housing in high-alloy steel, CRC 2
Applications
The absorber sits at end stops of linear and swivel motions and protects both the mechanism and the workpiece. The DYEF-G8-M10-Y1F is rated for 0 to 60 °C ambient temperature, any mounting position.
Technical data
| Order code | DYEF-G8-M10-Y1F |
|---|---|
| Festo part number | 8160238 |
| Size | M10 |
| Stroke | 3.7 mm |
| Cushioning | elastic cushioning rings/pads at both ends with metal fixed stop |
| Mounting position | any |
| Position detection | none |
| Maximum impact speed | 0.8 m/s |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0 to 60 °C |
| Cushioning length | 3.7 mm |
| Maximum tightening torque | 3 Nm |
| Maximum energy absorption per stroke | 0.06 J |
| Product weight | 37.6 g |
| Type of mounting | via threaded sleeve |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | high-alloy steel |
| Weight | 0.034 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DYEF-G8-M10-Y1F |
| EAN | 4052568586126 |
| Zolltarifnummer | 84879059 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Seal material | NBR |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
