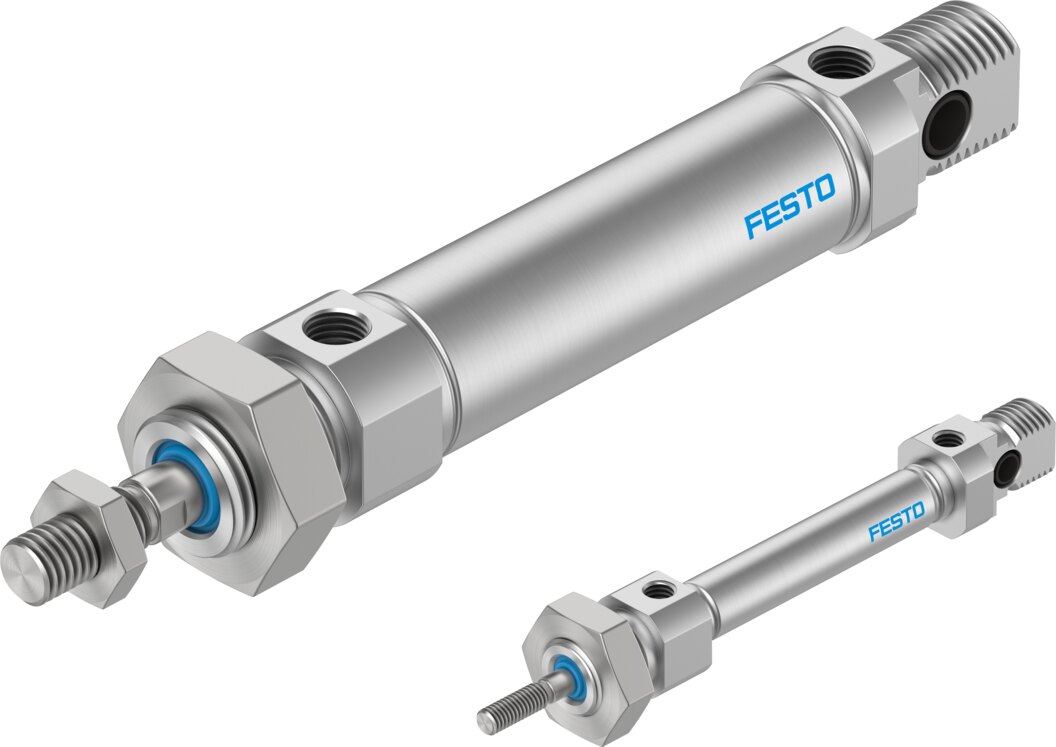

Standards-based cylinder, double-acting, Ø 20 mm, stroke 120 mm DSNU-20-120-PPS-A - Festo 577054

188.5 N advancing force at 6 bar, 120 mm stroke and a piston Ø of 20 mm: these are the key values of the standards-based cylinder DSNU-20-120-PPS-A. On the DSNU-20-120-PPS-A, barrel and piston rod are made of high-alloy stainless steel (CRC 2).

Benefits

• Theoretical force at 6 bar: 188.5 N advance, 158.3 N return
• Piston Ø 20 mm and stroke 120 mm, defined by the order code DSNU-20-120-PPS-A
• Self-adjusting pneumatic end-position cushioning PPS, cushioning length 15 mm
• Conforms to CETOP RP 52 P, ISO 6432, standard mounting accessories fit
• Cylinder barrel and piston rod in high-alloy stainless steel
• Prepared for proximity switches to sense the end positions (code A in the type)

Applications

In fixtures, test stations and special machines the DSNU-20-120-PPS-A moves workpieces and flaps over 120 mm. The DSNU-20-120-PPS-A is mounted with DSNU series mounting accessories. The M8 piston rod thread on the DSNU-20-120-PPS-A takes the matching rod-end accessories. For replacement please compare the type DSNU-20-120-PPS-A with the installed cylinder.
