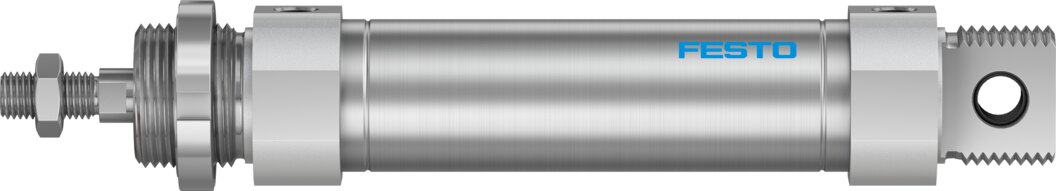

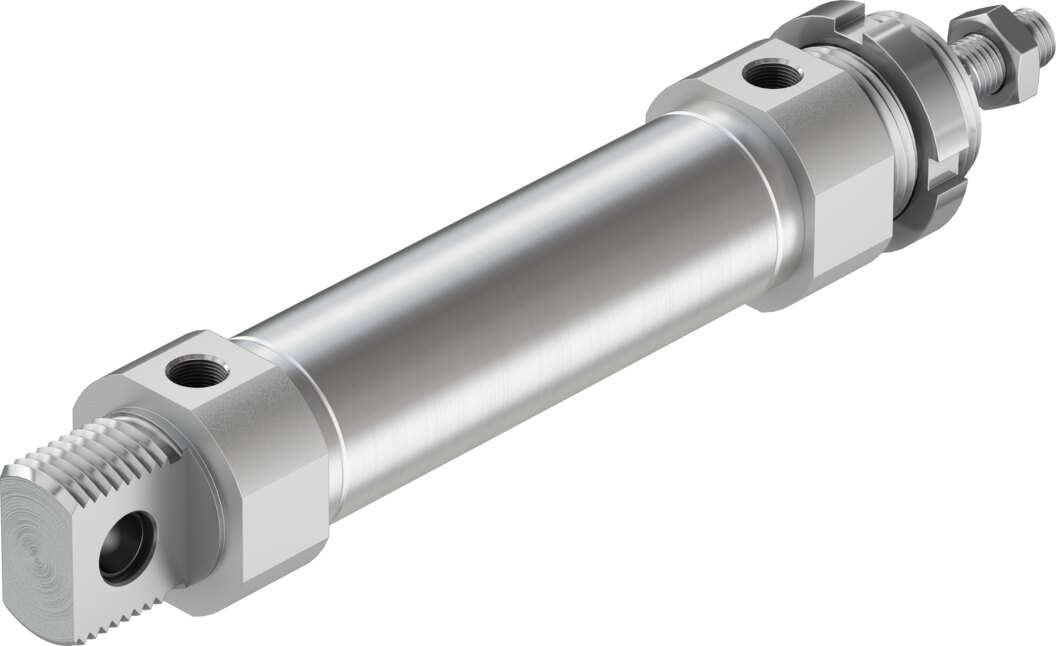

Round cylinder, double-acting, Ø 32 mm, stroke 70 mm DSNU-32-70-P-A - Festo 5249370

482.5 N advancing force at 6 bar, 70 mm stroke and a piston Ø of 32 mm: these are the key values of the round cylinder DSNU-32-70-P-A. The end positions can be sensed with proximity switches.

Benefits

• Theoretical force at 6 bar: 482.5 N advance, 415 N return
• Cleanroom-suitable, class 6 to ISO 14644-1
• Elastic cushioning rings at both ends (P), permissible impact energy 0.4 J
• Cylinder barrel in high-alloy stainless steel
• Air connection G1/8, piston rod thread M10x1.25
• Operating pressure 1 to 10 bar

Applications

In fixtures, test stations and special machines the DSNU-32-70-P-A moves workpieces and flaps over 70 mm. The DSNU-32-70-P-A is mounted with DSNU series mounting accessories. Rod eyes and couplings screw onto the M10x1.25 piston rod thread, the stroke is 70 mm.
