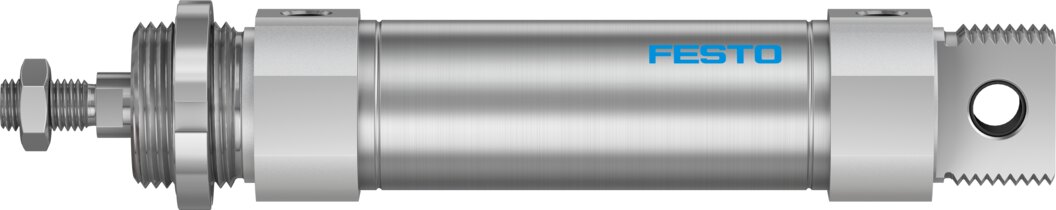

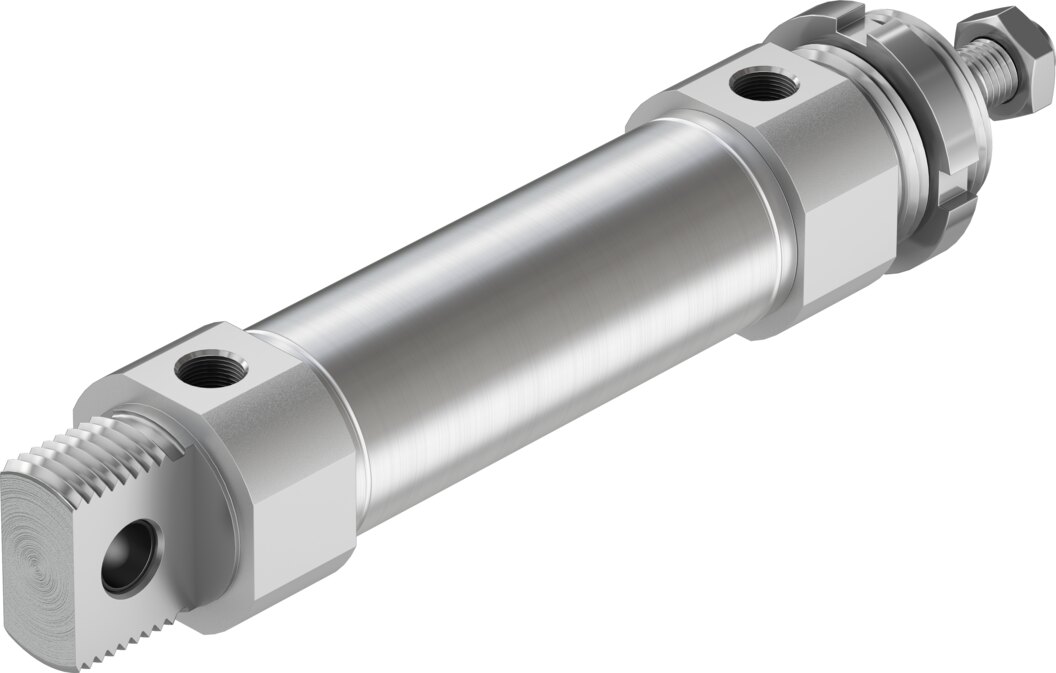

Round cylinder, double-acting, Ø 40 mm, stroke 70 mm DSNU-40-70-PPS-A - Festo 5262771

With its compact round design the DSNU-40-70-PPS-A delivers 70 mm of stroke and reaches 752.9 N on advance at 6 bar with a piston Ø of 40 mm and 633.3 N on return. The barrel of the DSNU-40-70-PPS-A is made of high-alloy stainless steel (CRC 2).

Benefits

• Theoretical force at 6 bar: 752.9 N advance, 633.3 N return
• Cylinder barrel in high-alloy stainless steel
• Self-adjusting pneumatic end-position cushioning PPS, cushioning length 18 mm
• Operating pressure 1 to 10 bar
• Air connection G1/4, piston rod thread M12x1.25
• Prepared for proximity switches to sense the end positions

Applications

In fixtures, test stations and special machines the DSNU-40-70-PPS-A moves workpieces and flaps over 70 mm. The DSNU-40-70-PPS-A is mounted with DSNU series mounting accessories. Rod eyes and couplings screw onto the M12x1.25 piston rod thread, the stroke is 70 mm.
