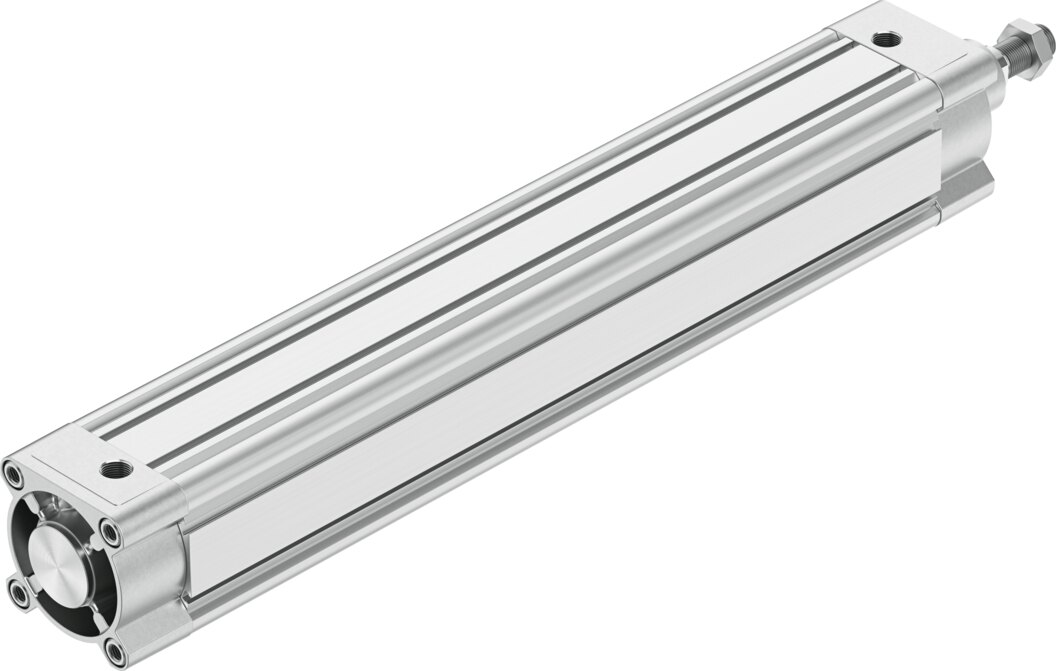

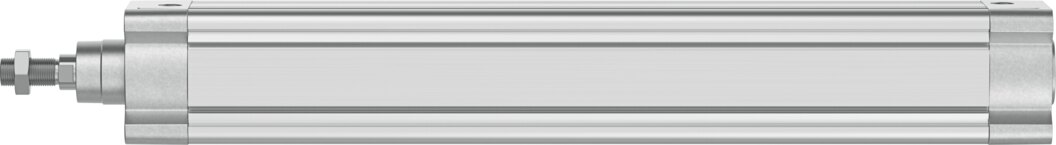

Double-acting ISO 15552 standard cylinder Ø 80 mm stroke 500 mm DSBC-80-500-D3-PPSA-N3 - Festo 8165598

3016 N of theoretical advance force at 6 bar over a 500 mm stroke characterise the double-acting ISO 15552 standard cylinder DSBC-80-500-D3-PPSA-N3 with a Ø 80 mm piston. The DSBC-80-500-D3-PPSA-N3 is rated for 0.4 to 12 bar operating pressure and -20 to 80 °C ambient temperature.

Benefits

• Theoretical force at 6 bar: 3016 N advance, 2721 N return
• Self-adjusting cushioning PPS, 31 mm cushioning length
• Position detection via proximity switches
• Operating pressure 0.4 to 12 bar
• Mounting dimensions to ISO 15552, interchangeable
• Piston rod thread m20x1.5, piston rod: high-alloy steel

Applications

The ISO 15552 standard cylinder handles lifting, pushing and feeding movements in machine and plant engineering, here with a 500 mm stroke. The DSBC-80-500-D3-PPSA-N3 runs on compressed air to ISO 8573-1:2010 [7:4:4], and it can be mounted in any position.
