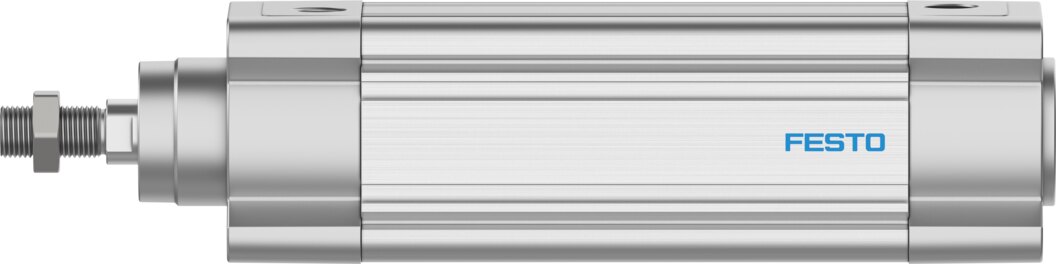

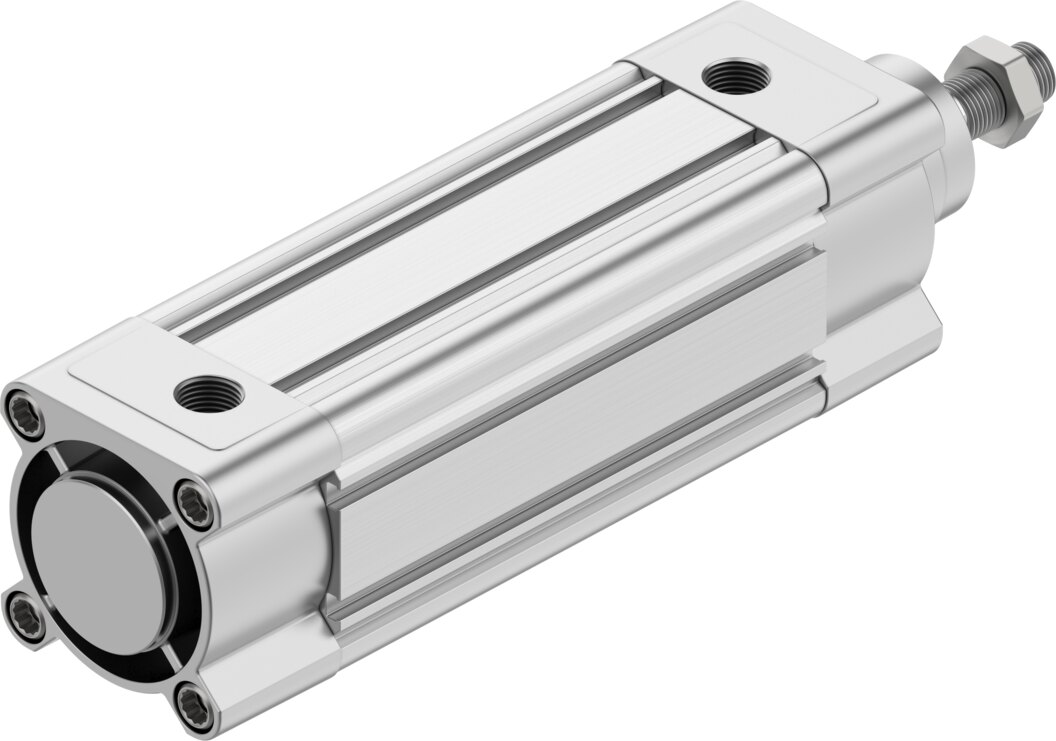

Double-acting ISO 15552 standard cylinder Ø 63 mm stroke 125 mm DSBC-63-125-D3-PPSA-N3 - Festo 3657820

Name: Double-acting ISO 15552 standard cylinder Ø 63 mm stroke 125 mm DSBC-63-125-D3-PPSA-N3 - Festo 3657820
Brand: Festo
SKU: FES-3657820
Price: 206.98 EUR
Availability: InStock

Festo ✓ Original product Brand new

With 1870 N of advance force at 6 bar, the double-acting ISO 15552 standard cylinder DSBC-63-125-D3-PPSA-N3 moves loads over a 125 mm stroke, the piston measures Ø 63 mm. The self-adjusting end-position cushioning PPS adapts to load and speed, cushioning length 22 mm. Weight 2.923 kg.

Net

€206.98

excl. VAT

Item FES-3657820

Manufacturer no. DSBC-63-125-D3-PPSA-N3

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

1870 N of theoretical advance force at 6 bar over a 125 mm stroke characterise the double-acting ISO 15552 standard cylinder DSBC-63-125-D3-PPSA-N3 with a Ø 63 mm piston. Port G3/8, end-position sensing via proximity switches.

Benefits

1870 N advance and 1682 N return force at 6 bar
Self-adjusting cushioning PPS, 22 mm cushioning length
Position detection via proximity switches
Operating pressure 0.4 to 12 bar
Dimensions to ISO 15552
Piston rod thread m16x1.5, piston rod: high-alloy steel

Applications

With a Ø 63 mm piston, the DSBC-63-125-D3-PPSA-N3 suits feed, pressing and positioning tasks in production lines and special machinery. The DSBC-63-125-D3-PPSA-N3 runs on compressed air to ISO 8573-1:2010 [7:4:4], and it can be mounted in any position.

Technical data

Order type	DSBC-63-125-D3-PPSA-N3
Festo part number	3657820
Stroke	125 mm
Piston diameter	63 mm
Piston rod thread	m16x1.5
Cushioning	self-adjusting pneumatic end-position cushioning
Mounting position	any
Conforms to standard	ISO 15552
Piston rod end	male thread
Design	piston, piston rod, profile barrel
Position detection	via proximity switch
Variants	piston rod at one end
Operating pressure	0.4 to 12 bar
Mode of operation	double-acting
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	2 - moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20 to 80 °C
Impact energy in end positions	1.3 J
Cushioning length	22 mm
Theoretical force at 6 bar, return stroke	1682 N
Theoretical force at 6 bar, advance stroke	1870 N
Moving mass	743 g
Moving mass for 0 mm stroke	430 g
Additional moving mass per 10 mm stroke	25 g
Product weight	2923 g
Basic weight for 0 mm stroke	1774 g
Additional weight per 10 mm stroke	92 g
Type of mounting	with female thread, with accessories
Pneumatic connection	G3/8
Note on materials	roHS compliant
Material cover	coated die-cast aluminium
Material piston seal	TPE-U(PU)
Material piston	wrought aluminium alloy
Material piston rod	high-alloy steel
Material piston rod wiper	TPE-U(PU)
Material buffer seal	TPE-U(PU)
Material cushioning boss	POM
Material cylinder barrel	smooth-anodised wrought aluminium alloy
Material nut	galvanised steel
Material rod wiper	TPE-E
Material bearing	metal polymer compound
Material collar screws	galvanised steel
Customs tariff number	84123100
Weight	2.6 kg
Manufacturer	Festo
Hersteller-Nr	DSBC-63-125-D3-PPSA-N3
EAN	4052568272395
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Ausführung	einseitige Kolbenstange
Thread	G 3/8
Piston Ø [mm]	63
Stroke [mm]	125
Medium	Compressed air
Function	double-acting
Norm	ISO 15552
Series	DSBC
Bore (mm)	63
Betriebsdruck max [bar]	12
Temperaturbereich	-20-80 °C
Temperature (max.)	80
