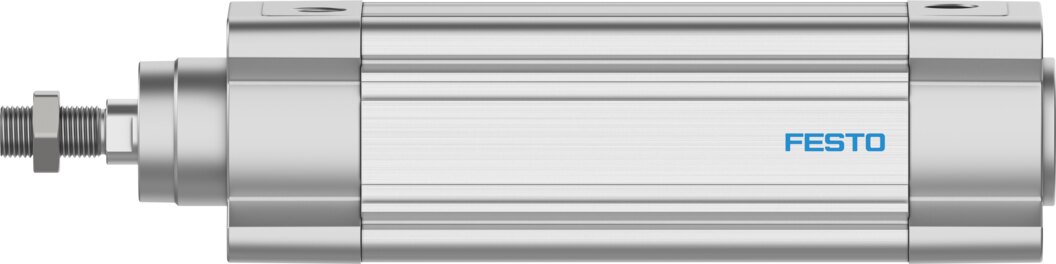

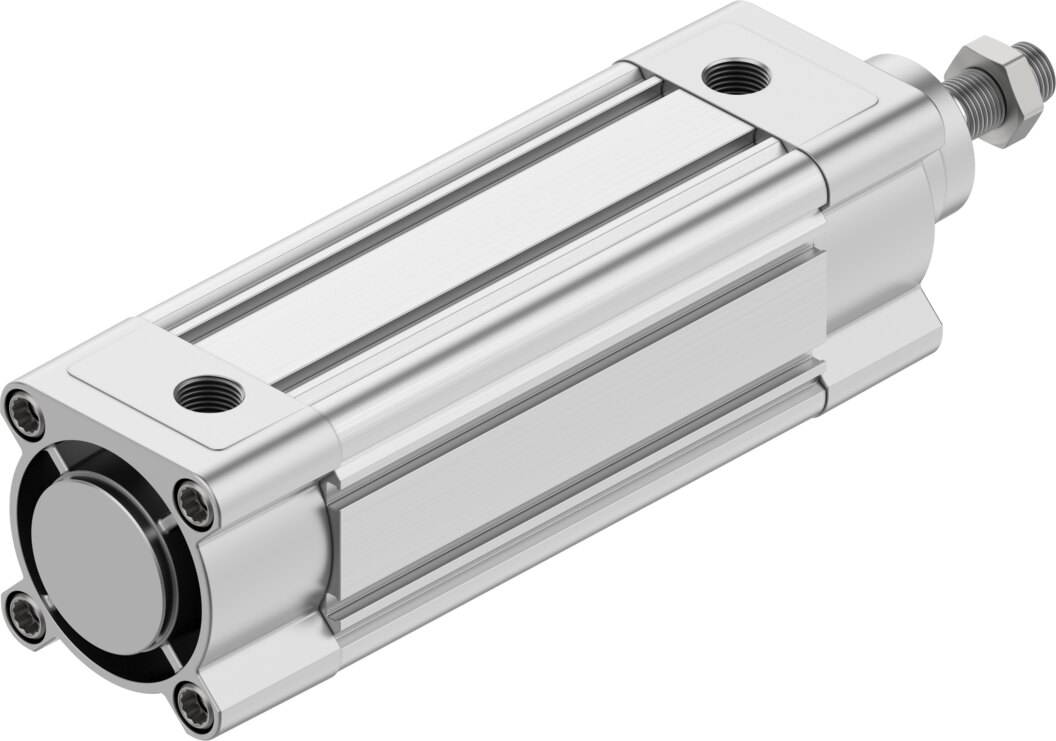

Double-acting standard cylinder Ø 63 mm stroke 180 mm DSBC-63-180-F-PPVA - Festo 609782

Ø 63 mm piston, 180 mm stroke: these are the dimensions of the Festo standard cylinder DSBC-63-180-F-PPVA. Being double-acting, the Ø 63 mm piston is driven by compressed air in both directions.

Benefits at a glance

• Piston Ø 63 mm, stroke 180 mm
• PPV cushioning adjustable at both ends
• End positions can be sensed with proximity switches
• Double-acting: force in both directions
• Weight 2.8 kg
• Clearly identified by Festo part number 609782

Use

Typical tasks for the DSBC-63-180-F-PPVA are clamping, ejecting and shifting over 180 mm in assembly and test systems.
