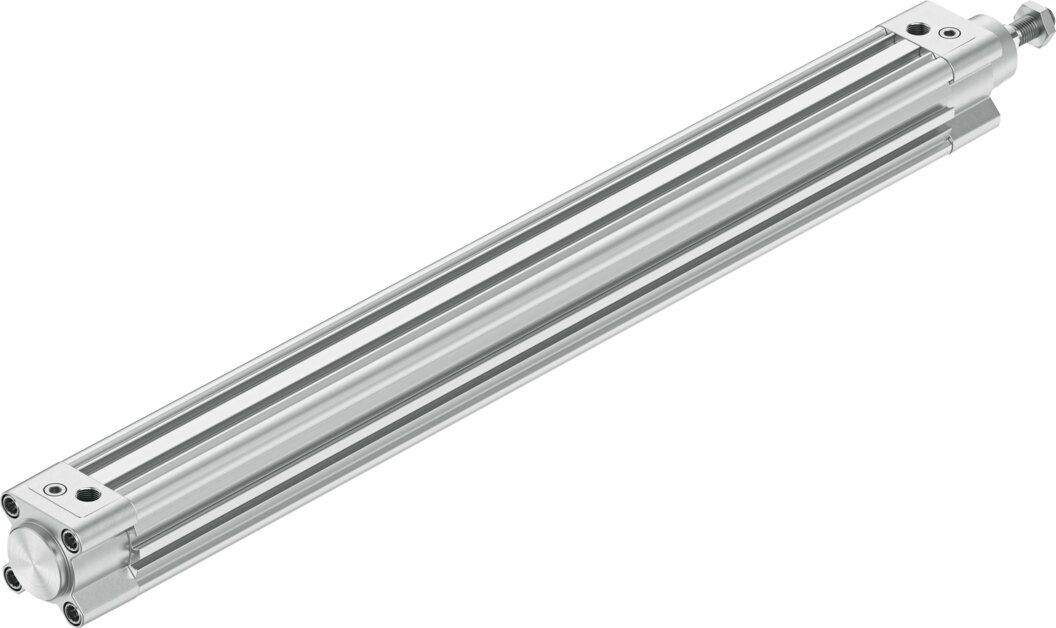

Double-acting ISO 15552 standard cylinder Ø 32 mm stroke 400 mm DSBC-32-400-D3-PPVA-N3 - Festo 8165440

The Ø 32 mm piston of the ISO 15552 standard cylinder DSBC-32-400-D3-PPVA-N3 generates 483 N of advance force and 415 N when retracting at 6 bar, the stroke is 400 mm. The DSBC-32-400-D3-PPVA-N3 is rated for 0.8 to 12 bar operating pressure and -20 to 80 °C ambient temperature.

Key benefits

• Theoretical force at 6 bar: 483 N advance, 415 N return
• PPV cushioning adjustable at both ends, 17 mm cushioning length
• End positions can be sensed with proximity switches
• Operating pressure 0.8 to 12 bar
• Mounting dimensions to ISO 15552, interchangeable
• Piston rod thread m10x1.25, piston rod: high-alloy steel

Typical applications

Typical areas are handling, packaging and conveying, wherever a 400 mm linear stroke is required. The operating medium for the DSBC-32-400-D3-PPVA-N3 is compressed air to ISO 8573-1:2010 [7:4:4].
