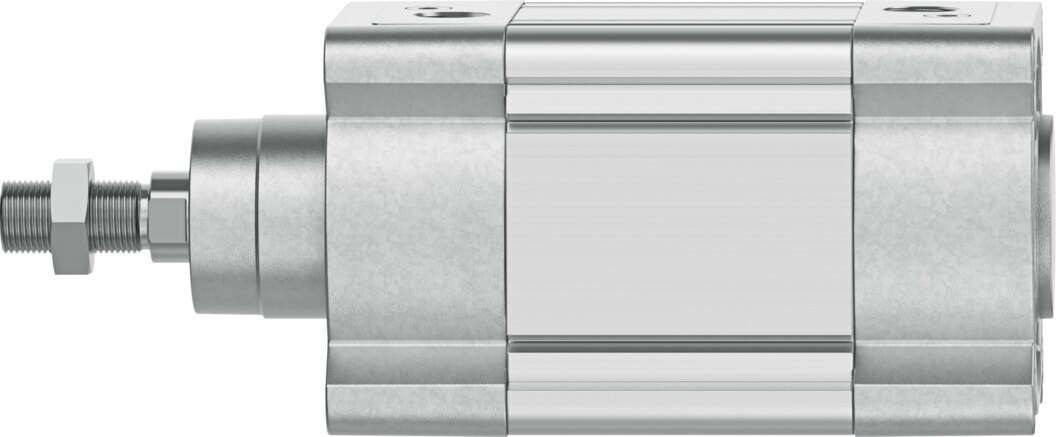

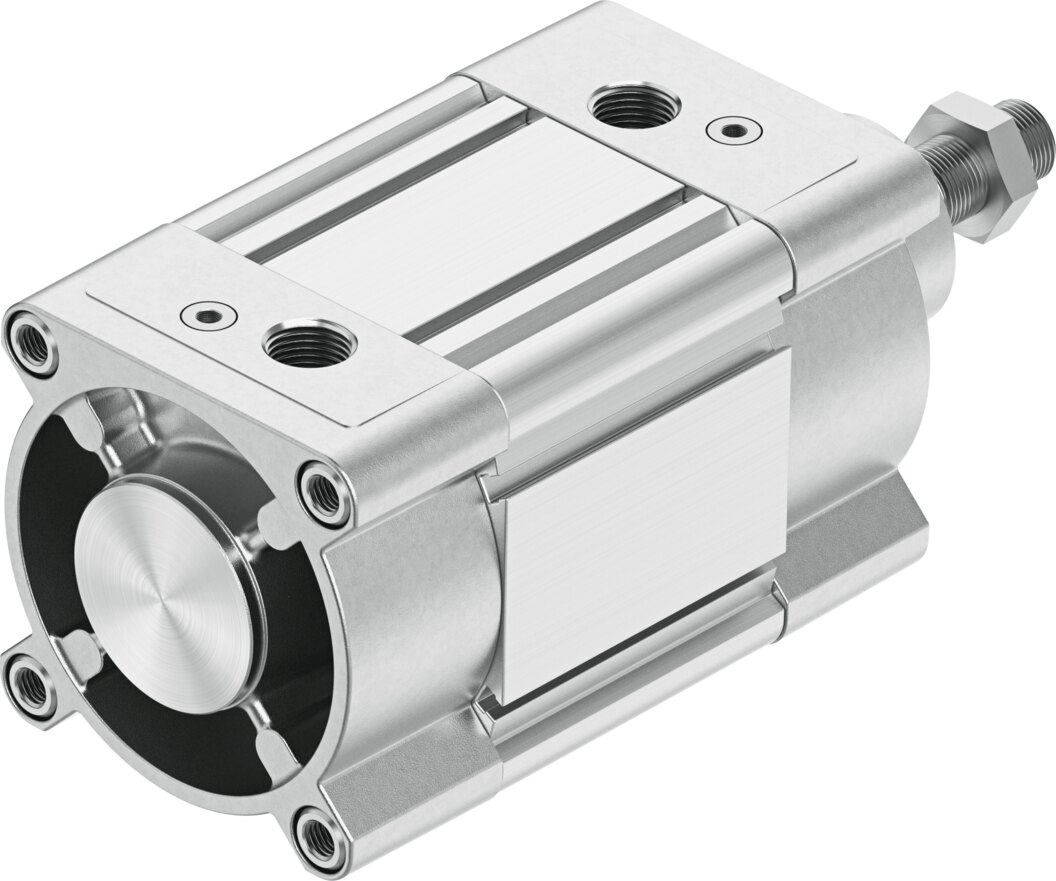

Double-acting ISO 15552 standard cylinder Ø 100 mm stroke 50 mm DSBC-100-50-D3-PPVA-N3 - Festo 8165658

4712 N of theoretical advance force at 6 bar over a 50 mm stroke characterise the double-acting ISO 15552 standard cylinder DSBC-100-50-D3-PPVA-N3 with a Ø 100 mm piston. The DSBC-100-50-D3-PPVA-N3 is rated for 0.4 to 12 bar operating pressure and -20 to 80 °C ambient temperature.

Benefits at a glance

• 4712 N advance and 4418 N return force at 6 bar
• PPV cushioning adjustable at both ends, 31 mm cushioning length
• Position detection via proximity switches
• Pressure range 0.4 to 12 bar
• Mounting dimensions to ISO 15552, interchangeable
• Piston rod thread m20x1.5, piston rod: high-alloy steel

Use

Typical tasks for the DSBC-100-50-D3-PPVA-N3 are clamping, ejecting and shifting over 50 mm in assembly and test systems. The DSBC-100-50-D3-PPVA-N3 runs on compressed air to ISO 8573-1:2010 [7:4:4], and it can be mounted in any position.
