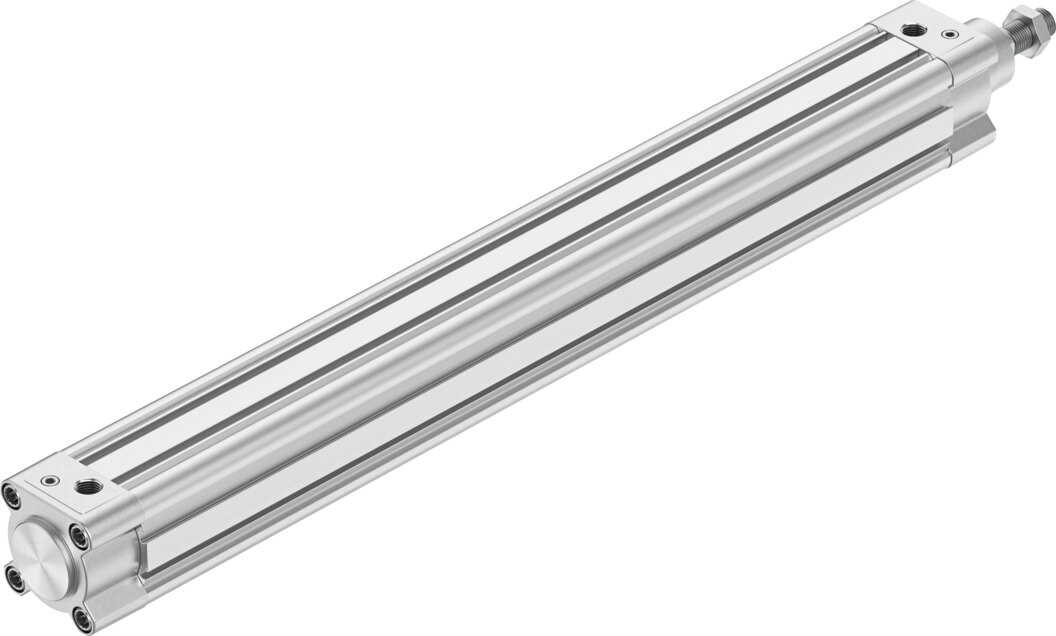

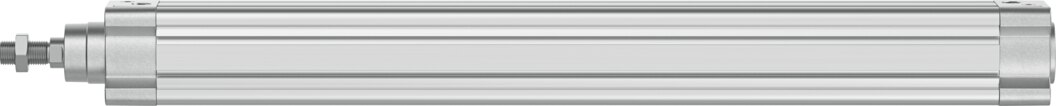

Double-acting ISO 15552 standard cylinder Ø 50 mm stroke 500 mm DSBC-50-500-D3-PPVA-N3 - Festo 8165589

Name: Double-acting ISO 15552 standard cylinder Ø 50 mm stroke 500 mm DSBC-50-500-D3-PPVA-N3 - Festo 8165589
Brand: Festo
SKU: FES-8165589
Price: 215.91 EUR
Availability: InStock

Festo ✓ Original product Brand new

The ISO 15552 standard cylinder DSBC-50-500-D3-PPVA-N3 delivers 1178 N on the advance stroke and 990 N on the return stroke at 6 bar, with a Ø 50 mm piston and 500 mm stroke. The pneumatic end-position cushioning is adjustable at both ends, with a cushioning length of 22 mm. Weight 5.116 kg.

Net

€215.91

excl. VAT

Item FES-8165589

Manufacturer no. DSBC-50-500-D3-PPVA-N3

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The Ø 50 mm piston of the ISO 15552 standard cylinder DSBC-50-500-D3-PPVA-N3 generates 1178 N of advance force and 990 N when retracting at 6 bar, the stroke is 500 mm. Prepared for proximity switches, port G1/4.

Benefits at a glance

Theoretical force at 6 bar: 1178 N advance, 990 N return
Adjustable end-position cushioning PPV, up to 1 J
Position detection via proximity switches
Pressure range 0.4 to 12 bar
Mounting dimensions to ISO 15552, interchangeable
Piston rod thread m16x1.5, piston rod: high-alloy steel

Use

Typical tasks for the DSBC-50-500-D3-PPVA-N3 are clamping, ejecting and shifting over 500 mm in assembly and test systems. The operating medium for the DSBC-50-500-D3-PPVA-N3 is compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

Order type	DSBC-50-500-D3-PPVA-N3
Festo part number	8165589
Stroke	500 mm
Piston diameter	50 mm
Piston rod thread	m16x1.5
Cushioning	pneumatic cushioning, adjustable at both ends
Mounting position	any
Conforms to standard	ISO 15552
Piston rod end	male thread
Design	piston, piston rod, profile barrel
Position detection	via proximity switch
Variants	piston rod at one end
Operating pressure	0.4 to 12 bar
Mode of operation	double-acting
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	2 - moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20 to 80 °C
Impact energy in end positions	1 J
Cushioning length	22 mm
Theoretical force at 6 bar, return stroke	990 N
Theoretical force at 6 bar, advance stroke	1178 N
Moving mass	1615 g
Moving mass for 0 mm stroke	365 g
Additional moving mass per 10 mm stroke	25 g
Product weight	5116 g
Basic weight for 0 mm stroke	1216 g
Additional weight per 10 mm stroke	78 g
Type of mounting	with female thread, with accessories
Pneumatic connection	G1/4
Note on materials	roHS compliant
Material cover	coated die-cast aluminium
Material piston seal	TPE-U(PU)
Material piston	wrought aluminium alloy
Material piston rod	high-alloy steel
Material piston rod wiper	TPE-U(PU)
Material buffer seal	TPE-U(PU)
Material cushioning boss	POM
Material cylinder barrel	smooth-anodised wrought aluminium alloy
Material nut	galvanised steel
Material rod wiper	TPE-E
Material bearing	metal polymer compound
Material collar screws	galvanised steel
Customs tariff number	84123100
Manufacturer	Festo
Hersteller-Nr	DSBC-50-500-D3-PPVA-N3
EAN	4052568597917
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Ausführung	einseitige Kolbenstange
Thread	G 1/4
Piston Ø [mm]	50
Stroke [mm]	500
Medium	Compressed air
Function	double-acting
Norm	ISO 15552
Series	DSBC
Bore (mm)	50
Betriebsdruck max [bar]	12
Temperaturbereich	-20-80 °C
Temperature (max.)	80
