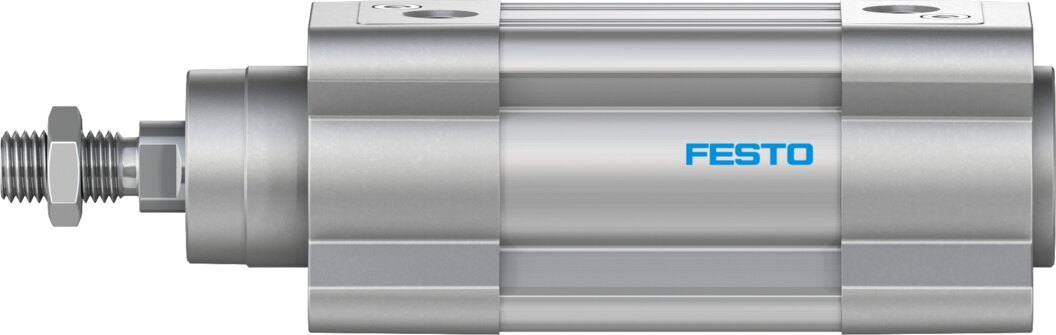

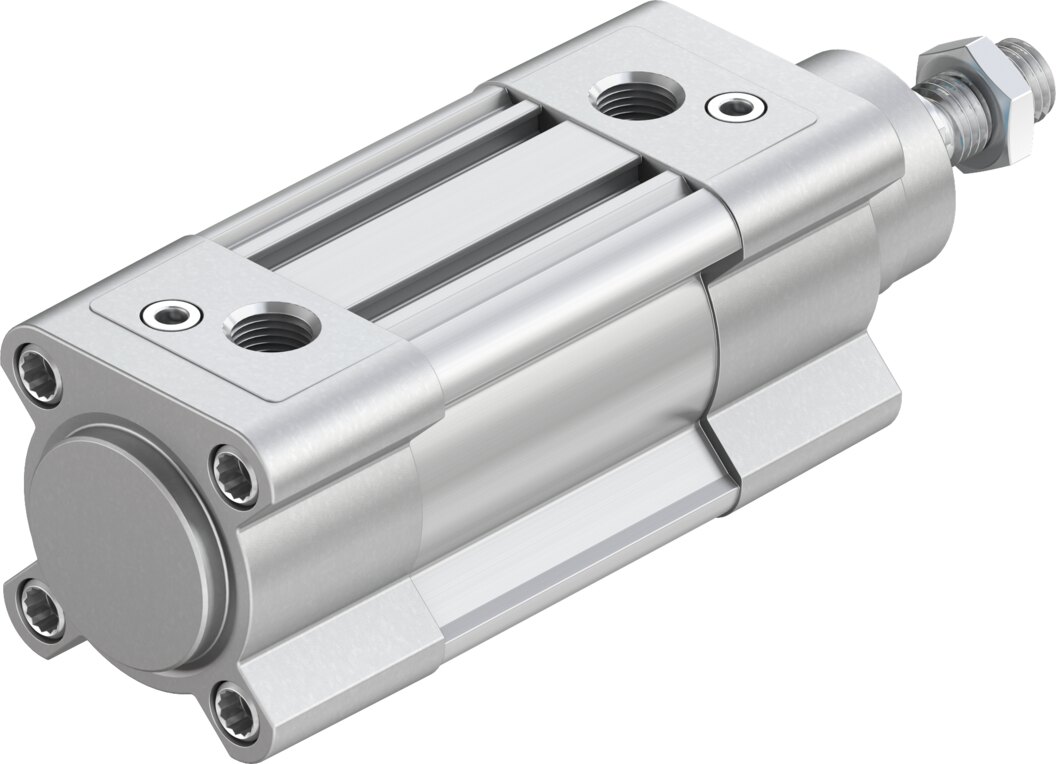

Double-acting standard cylinder Ø 40 mm stroke 170 mm DSBC-40-170-PPVA-N3 - Festo 609676
The Festo standard cylinder DSBC-40-170-PPVA-N3 with a Ø 40 mm piston is built for linear movements over 170 mm. The code PPVA in the type stands for pneumatic cushioning adjustable at both ends and sensing via proximity switches. It weighs 1.4 kg. Order it under Festo part number 609676.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Ø 40 mm piston, 170 mm stroke: these are the dimensions of the Festo standard cylinder DSBC-40-170-PPVA-N3. Compressed air drives the piston both ways, so advance and return over 170 mm are powered.
Benefits
- Piston Ø 40 mm, stroke 170 mm
- PPV cushioning adjustable at both ends
- End positions can be sensed with proximity switches
- Double-acting: force in both directions
- Weight 1.4 kg
- Clearly identified by Festo part number 609676
Applications
With a Ø 40 mm piston, the DSBC-40-170-PPVA-N3 suits feed, pressing and positioning tasks in production lines and special machinery.
Technical data
| Order type | DSBC-40-170-PPVA-N3 |
|---|---|
| Festo part number | 609676 |
| Piston diameter | 40 mm |
| Stroke | 170 mm |
| Mode of operation | double-acting |
| Cushioning | PPV: pneumatic cushioning, adjustable at both ends |
| Position detection | via proximity switch |
| Weight | 1.4 kg |
| Customs tariff number | 84123100 |
| Manufacturer | Festo |
| Hersteller-Nr | DSBC-40-170-PPVA-N3 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Piston Ø [mm] | 40 |
| Function | double-acting |
| Series | DSBC |
| Bore (mm) | 40 |
