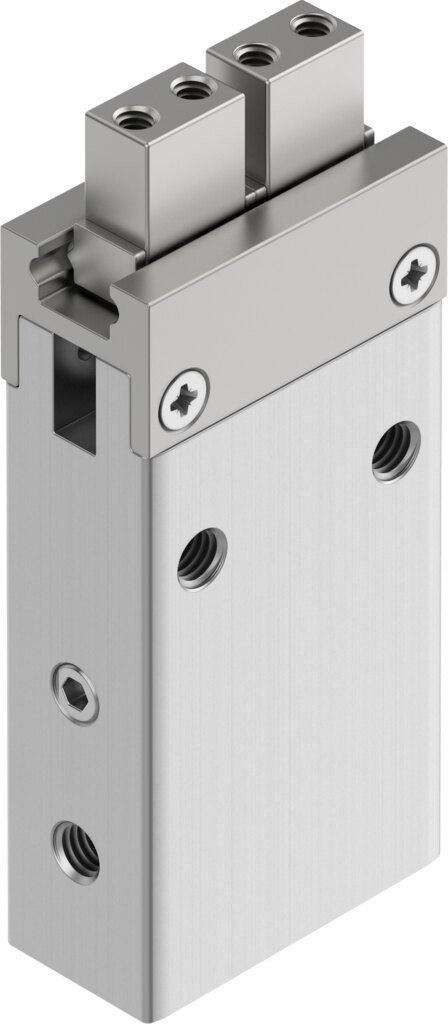

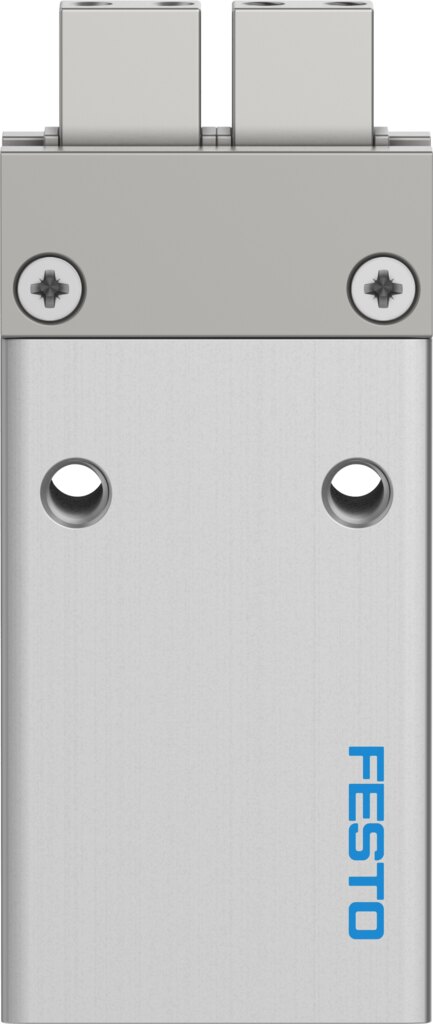

Pneumatic parallel gripper size 6, stroke per jaw 2 mm DHPC-6-A-NC-S-2 - Festo 8116749

Festo ✓ Original product Brand new

With 5.2 N gripping force per jaw when opening at 6 bar, the parallel gripper DHPC-6-A-NC-S-2 holds prismatic and round parts. 2 mm stroke per jaw, repetition accuracy 0.02 mm, single-acting, normally closed, ball guide. Runs on 3.5 to 8 bar via M3 port. Position detection with proximity switches.

Net
€231.53
excl. VAT
Item FES-8116749
Manufacturer no. DHPC-6-A-NC-S-2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

5.2 N gripping force per jaw when opening at 6 bar: that is what the size 6 parallel gripper DHPC-6-A-NC-S-2 provides. Both jaws move parallel towards each other. Version DHPC-6-A-NC-S-2: single-acting, normally closed, ball guide, flat finger mounting.

Benefits

  • 5.2 N gripping force per jaw when opening at 6 bar
  • Repetition accuracy 0.02 mm, replacement accuracy 0.2 mm
  • 2 mm stroke per jaw, with max. 6 g per external gripper finger
  • Closing time from 16 ms, opening time from 16 ms at 6 bar, operating frequency 3 Hz
  • Gripping force retention when closing
  • Corrosion resistance class CRC 0, ambient temperature -10 to 60 °C

Applications

Typical tasks for the DHPC-6-A-NC-S-2 are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Gripper fingers are mounted on the jaws, each external finger may weigh up to 6 g. Position detection with proximity switches. For battery production with reduced Cu/Zn/Ni values (F1a), the DHPC-6-A-NC-S-2 is a suitable choice.

Technical data

Size6
Stroke per gripper jaw2 mm
Max. replacement accuracy0.2 mm
Max. angular gripper jaw backlash ax, ay0°
Max. gripper jaw backlash Sz0 mm
Rotational symmetry0.2 mm
Repetition accuracy, gripper0.02 mm
Number of gripper jaws2
Drive systemPneumatic
Mounting positionAny
Mode of operationSingle-acting, normally closed
Gripper functionParallel
Gripping force retentionDuring closing
DesignFlat mounting method for gripper fingers, Lever, Positively driven motion sequence
GuideBall guide
Position detectionVia proximity switch
VariantsVariant without copper, zinc or nickel as main constituent (except nickel in steel, chemically nickel-plated surfaces, PCBs, cables, connectors and coils)
Operating pressure3.5 to 8 bar
Max. operating frequency of gripper3 Hz
Min. opening time at 6 bar16 ms
Min. closing time at 6 bar16 ms
Max. mass per external gripper finger6 g
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible, after that always operate lubricated
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature-10 to 60 °C
Total gripping force, opening at 6 bar10.4 N
Gripping force per gripper jaw, opening at 6 bar5.2 N
Mass moment of inertia0.012 kgcm²
Max. force on gripper jaw Fz static22 N
Max. torque at gripper Mx static0.11 Nm
Max. torque at gripper My static0.24 Nm
Max. torque at gripper Mz static0.11 Nm
Product weight27 g
Type of mountingDirect mounting via through-hole, Direct mounting via thread
Pneumatic connectionM3
Note on materialsRoHS compliant
Housing materialAnodised aluminium
Gripper jaw materialHigh-alloy stainless steel
ManufacturerFesto
Hersteller-NrDHPC-6-A-NC-S-2
EAN4052568554033
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM3
MediumCompressed air
Functionsingle-acting
Actuation typepneumatic
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
