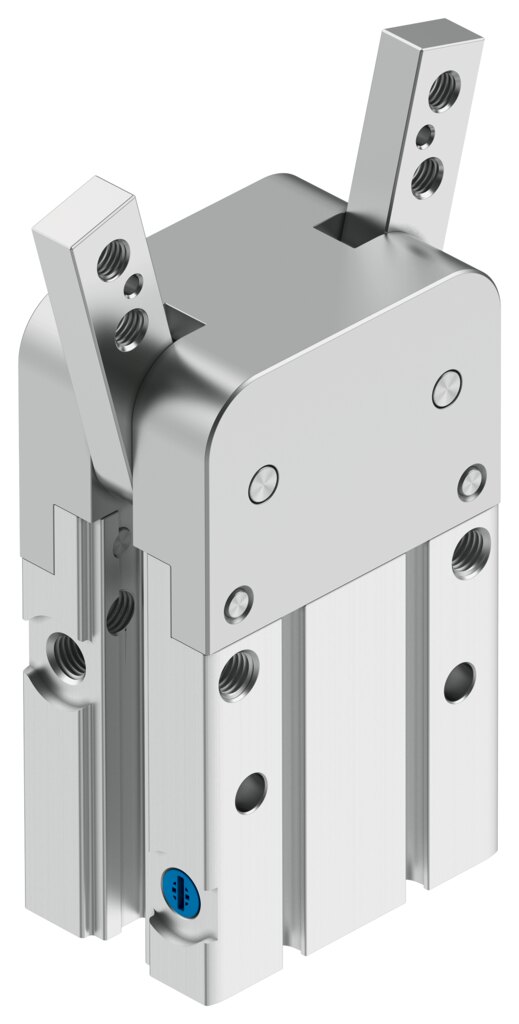

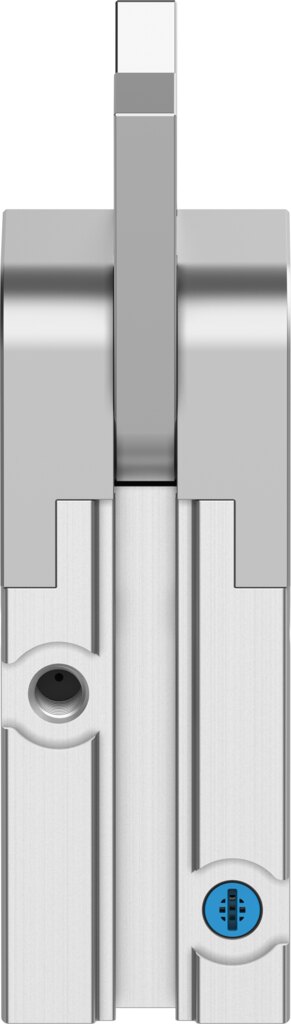

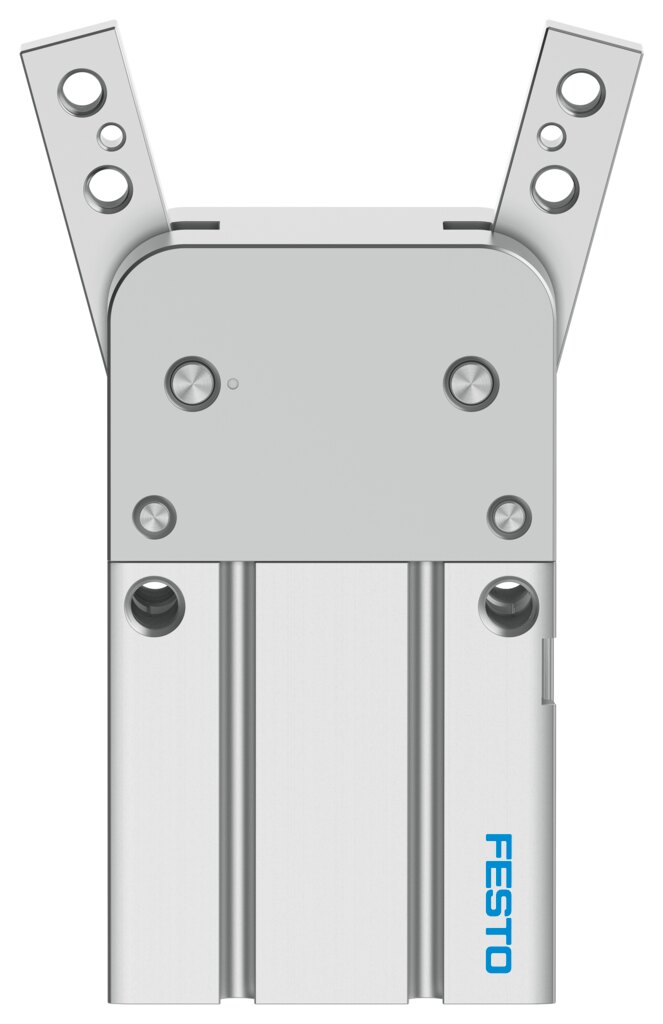

Pneumatic angle gripper size 20, opening angle 30° DHWC-20-A-S-NO - Festo 8128702

Festo ✓ Original product Brand new

The angle gripper DHWC-20-A-S-NO opens its jaws at an angle and delivers 120.9 Ncm total gripping torque when closing at 6 bar. Opening angle up to 30°, repetition accuracy 0.1 mm, single-acting, normally open. Runs on 1.5 to 8 bar via M5 port. Position detection with proximity switches.

Net
€367.63
excl. VAT
Item FES-8128702
Manufacturer no. DHWC-20-A-S-NO
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Size 20, 120.9 Ncm total gripping torque when closing at 6 bar: the DHWC-20-A-S-NO is a Festo angle gripper. The jaws open at an angle. Version DHWC-20-A-S-NO: single-acting, normally open.

Benefits

  • 120.9 Ncm total gripping torque when closing at 6 bar
  • Repetition accuracy 0.1 mm, replacement accuracy 0.2 mm
  • Opening angle up to 30°, the jaws clear the working area
  • Closing time from 10 ms, opening time from 13 ms at 6 bar, operating frequency 2 Hz
  • Gripping force retention when opening
  • Corrosion resistance class CRC 0, ambient temperature -10 to 60 °C

Applications

Typical tasks for the DHWC-20-A-S-NO are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Position detection with proximity switches. For battery production with reduced Cu/Zn/Ni values (F1a), the DHWC-20-A-S-NO is a suitable choice.

Technical data

Size20
Max. replacement accuracy0.2 mm
Max. opening angle30°
Rotational symmetry0.2 mm
Repetition accuracy, gripper0.1 mm
Number of gripper jaws2
Drive systemPneumatic
Mounting positionAny
Mode of operationSingle-acting, normally open
Gripper functionAngular
Gripping force retentionDuring opening
DesignPositively driven motion sequence
Position detectionVia proximity switch
Operating pressure1.5 to 8 bar
Max. operating frequency of gripper2 Hz
Min. opening time at 6 bar13 ms
Min. closing time at 6 bar10 ms
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible, after that always operate lubricated
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature-10 to 60 °C
Total gripping torque, closing at 6 bar120.9 Ncm
Mass moment of inertia0.255 kgcm²
Max. force on gripper jaw Fz static100 N
Max. torque at gripper Mx static1.5 Nm
Max. torque at gripper My static2.2 Nm
Max. torque at gripper Mz static2.2 Nm
Product weight190.5 g
Type of mountingDirect mounting via through-hole, Direct mounting via thread, Via through-hole and dowel pin, Via female thread and dowel pin
Pneumatic connectionM5
Note on materialsRoHS compliant
Cover cap materialWrought aluminium alloy, anodised
Housing materialAnodised wrought aluminium alloy
Gripper jaw materialHigh-alloy steel
ManufacturerFesto
Hersteller-NrDHWC-20-A-S-NO
EAN4052568567934
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
MediumCompressed air
Functionsingle-acting
Actuation typepneumatic
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
