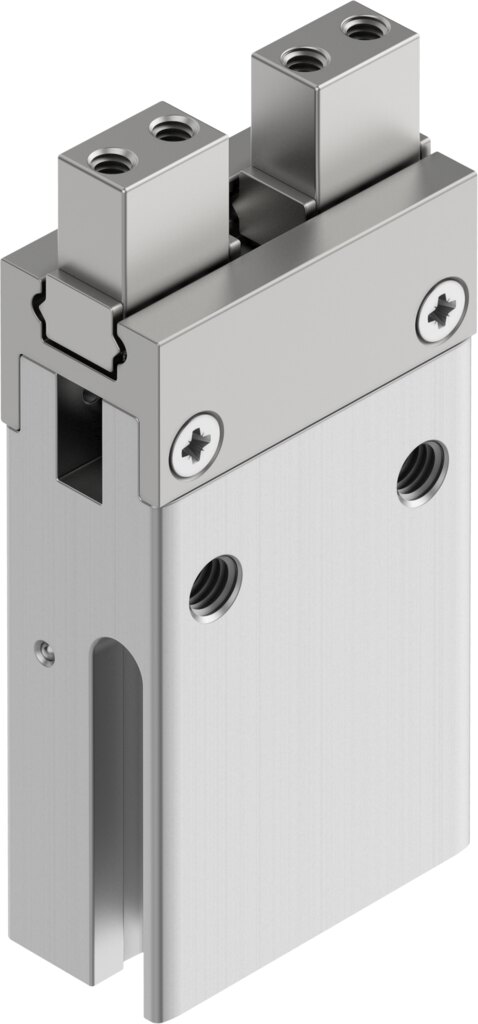

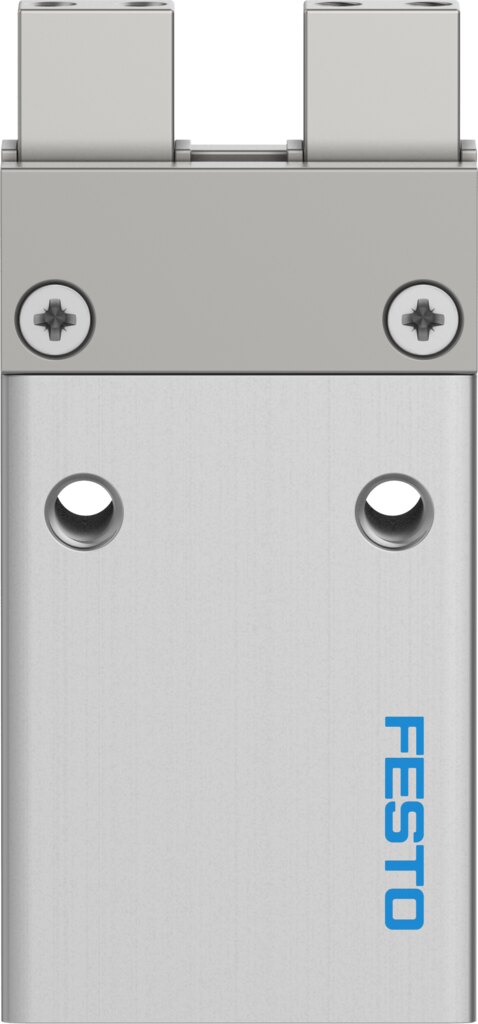

Parallel gripper DHPC-6-A-B-2 - Festo 8116740
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 6 |
|---|---|
| Stroke per gripper jaws | 2 mm |
| Max. replacement accuracy | 0.2 mm |
| Max. angular gripper jaw backlash ax, ay | 0 deg |
| Max. gripper jaw backlash Sz | 0 mm |
| Rotationally symmetrical | 0.2 mm |
| Repetition accuracy, gripper | 0.02 mm |
| Number of gripper jaws | 2 |
| Drive system | Pneumatic |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Gripper function | Parallel |
| Gripper force back-up | None |
| Design | Flat mounting method for gripper fingers, Lever, Force pilot operated motion sequence |
| Guide | Ball guide |
| Position detection | Via proximity switch |
| Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| Operating pressure | 1.5 ... 8 bar |
| Max. operating frequency of gripper | 3 Hz |
| Min. opening time at 0.6 MPa (6 bar, 87 psi) | 9 ms |
| Min. closing time at 0.6 MPa (6 bar, 87 psi) | 11 ms |
| Max. mass per external gripper finger | 6 g |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10 ... 60 °C |
| Total gripping force, opening, 0.6MPa (6bar, 87 psi) | 14.6 N |
| Total gripping force, closing, 0.6MPa (6bar, 87 psi) | 11 N |
| Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi) | 7.3 N |
| Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi) | 5.5 N |
| Mass moment of inertia | 0.011 kgcm² |
| Max. force on gripper jaw Fz static | 22 N |
| Max. torque at gripper Mx static | 0.11 Nm |
| Max. torque at gripper My static | 0.24 Nm |
| Max. torque at gripper Mz static | 0.11 Nm |
| Product weight | 25 g |
| Type of mounting | Either:, Direct mounting via through-hole, Direct mounting via thread |
| Pneumatic connection | M3 |
| Note on materials | RoHS compliant |
| Material housing | Anodised aluminium |
| Material gripper jaws | High-alloy stainless steel |
| Weight | 0.034 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DHPC-6-A-B-2 |
| EAN | 4052568553944 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
