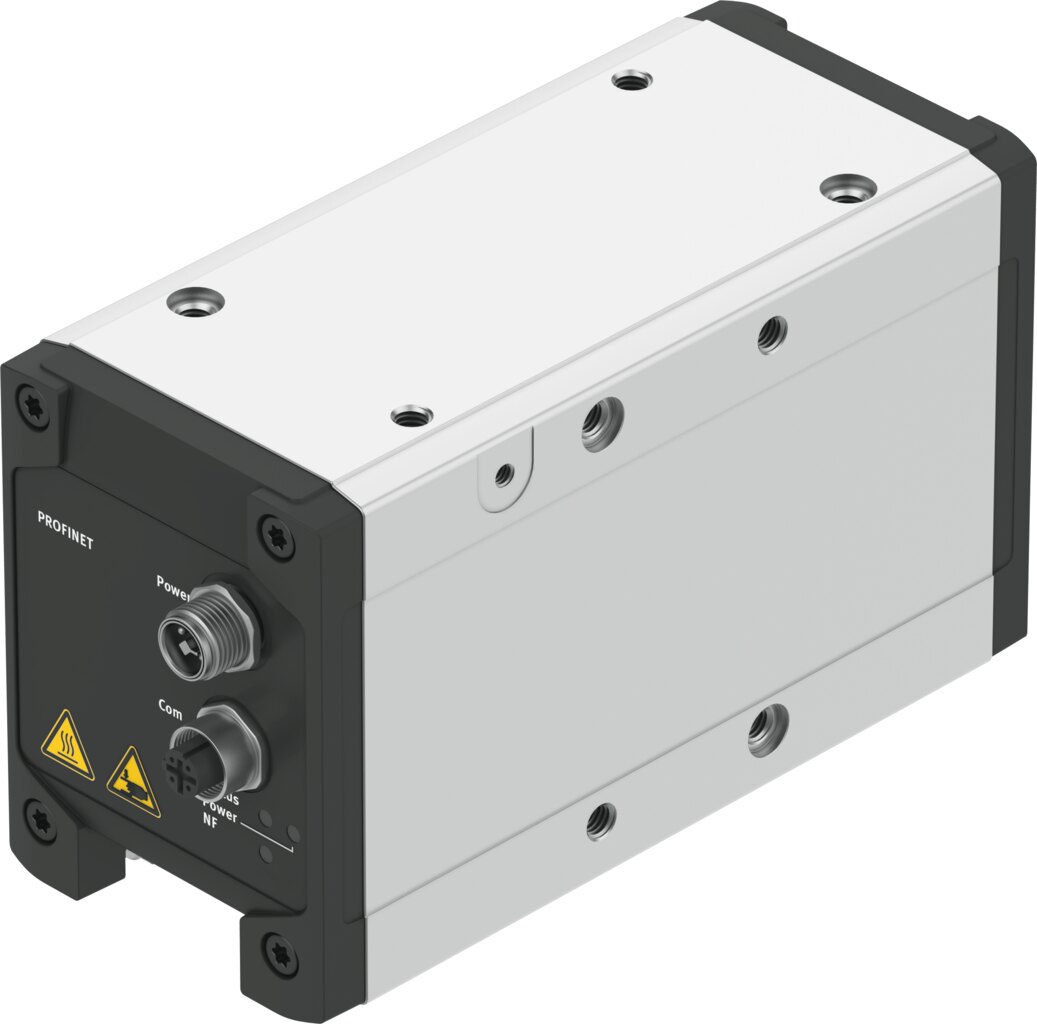

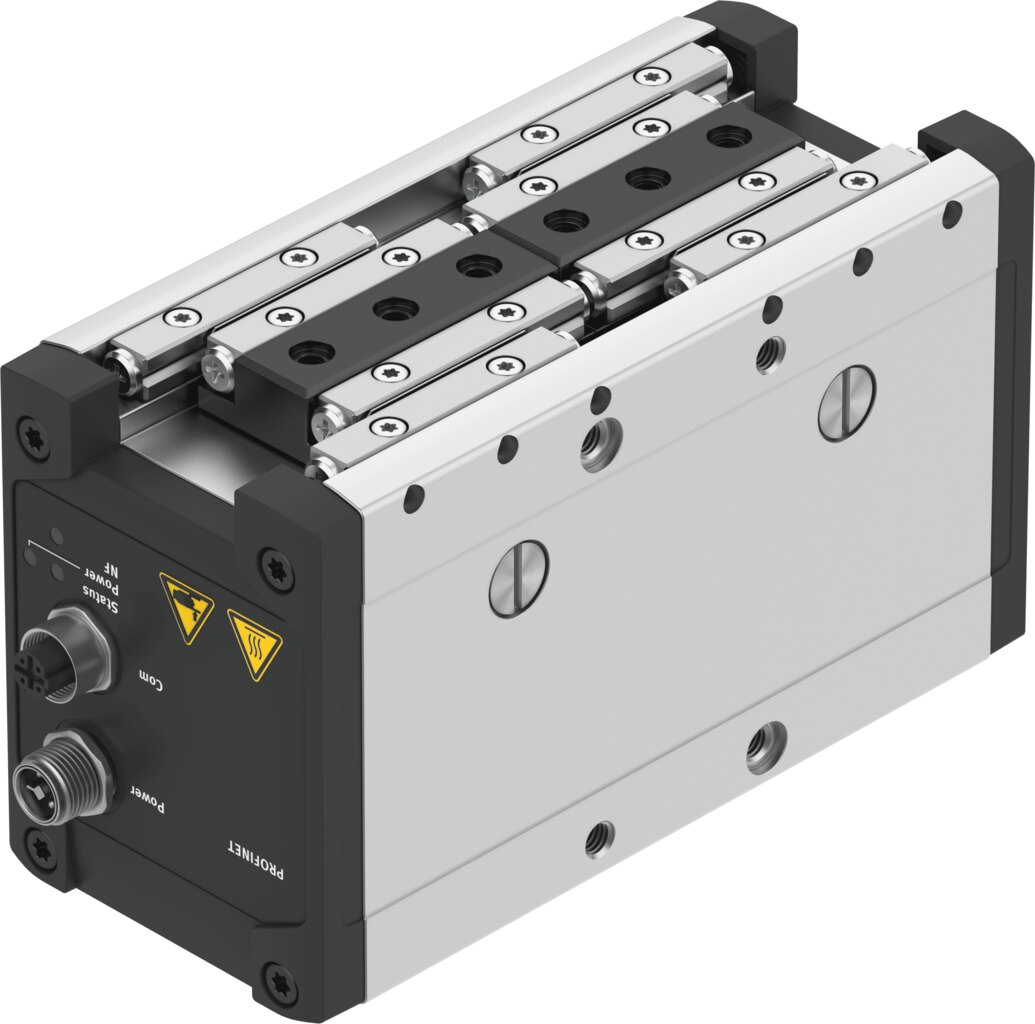

Electric parallel gripper size 36, total stroke 45 mm, PROFINET HEPP-36-45-PN-B - Festo 8146661

Festo ✓ Original product Brand new

With up to 260 N gripping force per jaw, the parallel gripper HEPP-36-45-PN-B grips electrically without compressed air. 22.5 mm stroke per jaw, repetition accuracy ± 0.02 mm, roller guide. Supplied with 24 V DC, degree of protection IP40. Cleanroom suitable to ISO 14644-1 Class 6.

Net
€2,552.34
excl. VAT
Item FES-8146661
Manufacturer no. HEPP-36-45-PN-B
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

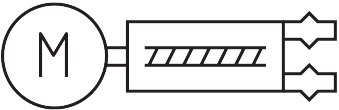

Size 36, up to 260 N gripping force per jaw: the HEPP-36-45-PN-B is a Festo parallel gripper. An electric motor moves both jaws in parallel. Version HEPP-36-45-PN-B: roller guide.

Benefits

  • Up to 260 N gripping force per jaw
  • Repetition accuracy ± 0.02 mm
  • 22.5 mm stroke per jaw
  • Positioning speed 40 mm/s per gripper finger, rated load 2 kg
  • PROFINET fieldbus interface, version with brake
  • Cleanroom suitability Class 6 according to ISO 14644-1

Applications

The HEPP-36-45-PN-B suits handling tasks without a compressed air supply and applications where the controller sets gripping position and gripping force. Position detection via the motor encoder. The HEPP-36-45-PN-B is suitable for battery production with reduced Cu/Zn/Ni values (F1a).

Technical data

Size36
Total stroke45 mm
Stroke per gripper jaw22.5 mm
Max. gripper jaw clearance Sy0.35 mm
Repetition accuracy in ± mm0.02 mm
Number of gripper jaws2
Drive systemElectrical
Mounting positionAny
Controller operating modeInterpolated mode via fieldbus
Gripper functionParallel
DesignToothed belt, Electric gripper, With brake, With ball screw
GuideRoller bearing guide
Position detectionMotor encoder
Configuration supportGSDML file
VariantsVariant without copper, zinc or nickel as main constituent (except nickel in steel, chemically nickel-plated surfaces, PCBs, cables, connectors and coils)
Rotor position sensorAbsolute encoder, single turn
Rotor position sensor, encoder measuring principleMagnetic
Ready status indicationLED
Positioning speed per gripper finger40 mm/s
Positioning acceleration per gripper finger1 m/s²
Gripping speed per gripper finger3 mm/s
Number of MAC addresses4
Max. current consumption3000 mA
Max. current consumption, load2 A
Max. current consumption, logic1 A
Nominal operating voltage DC24 V
Nominal voltage for logic power supply DC24 V
Nominal voltage load voltage DC24 V
Nominal motor current1.3 A
Permissible range for load power supply±10%
Permissible range for logic voltage±10%
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Relative air humidityNon-condensing
Sound pressure level60 dB(A)
Degree of protectionIP40
Ambient temperature0 to 50 °C
Total gripping force520 N
Gripping force per gripper jaw260 N
Mass moment of inertia54 kgcm²
Max. force on gripper jaw Fz static1100 N
Max. torque at gripper Mx static13.9 Nm
Max. torque at gripper My static34.5 Nm
Max. torque at gripper Mz static13.9 Nm
Rated load2 kg
Nominal torque0.183 Nm
Lubrication interval for guide components1 million cycles
Product weight2100 g
Communication profilePROFIdrive
Field bus, connection typeSocket
Field bus, connection systemM12x1, D-coded to EN 61076-2-101
Field bus, connection pattern4
Field bus, protocolPROFINET IRT, PROFINET RT
Electrical connection2x M12
Fieldbus linkPROFINET
Type of mountingVia female thread and centring sleeve
Note on materialsRoHS compliant
Housing materialAnodised aluminium
Gripper jaw materialSteel
ManufacturerFesto
Hersteller-NrHEPP-36-45-PN-B
EAN4052568609603
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
Actuation typeElectrical
Operating voltage24 V DC
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
