Control plate to VDI/VDE 3845 (NAMUR) and VDI/VDE 3847-2, port G1/4, ATEX DADG-FM-F9-VDE2 - Festo 8104802

Name: Control plate to VDI/VDE 3845 (NAMUR) and VDI/VDE 3847-2, port G1/4, ATEX DADG-FM-F9-VDE2 - Festo 8104802
Brand: Festo
SKU: FES-8104802
Price: 346.40 EUR
Availability: InStock

Festo ✓ Original product Brand new

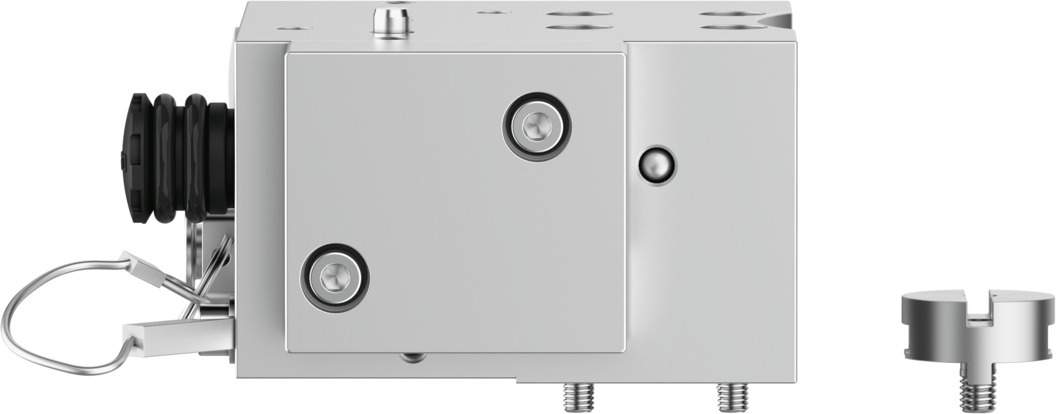

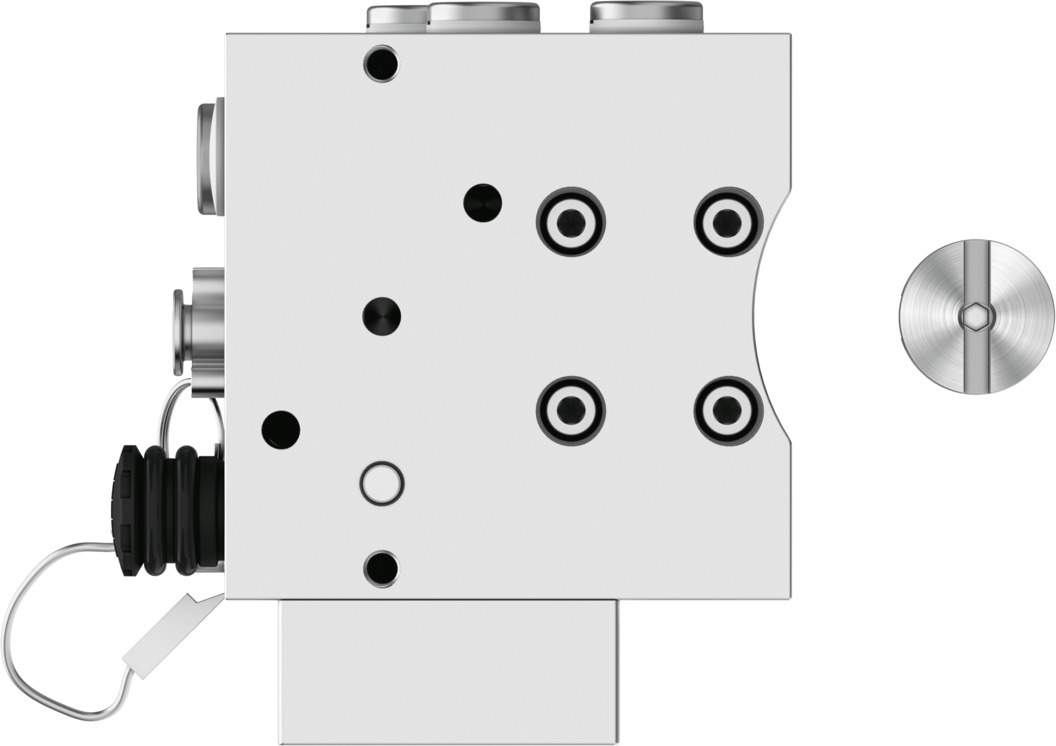

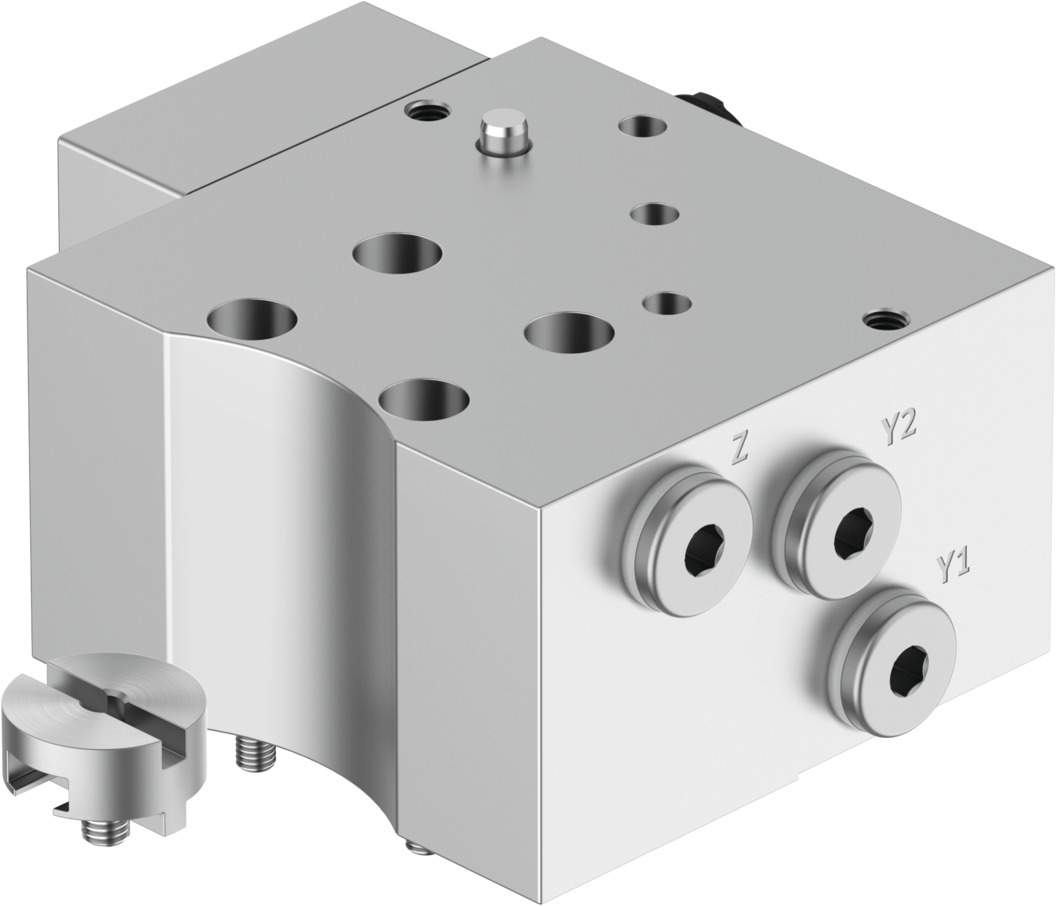

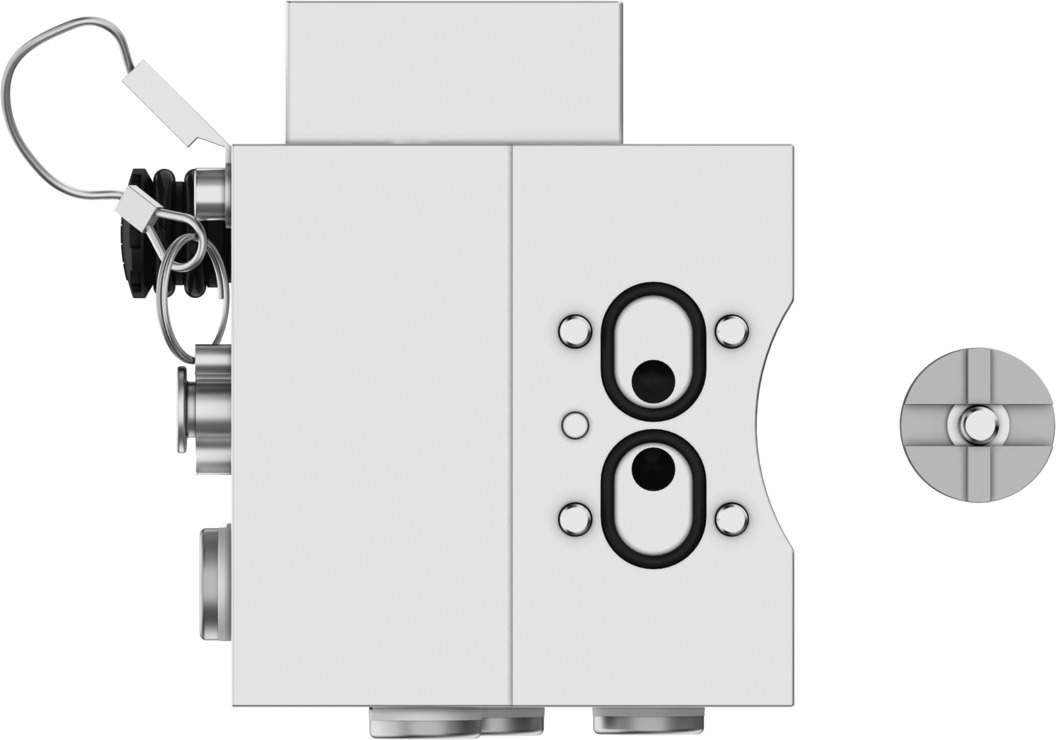

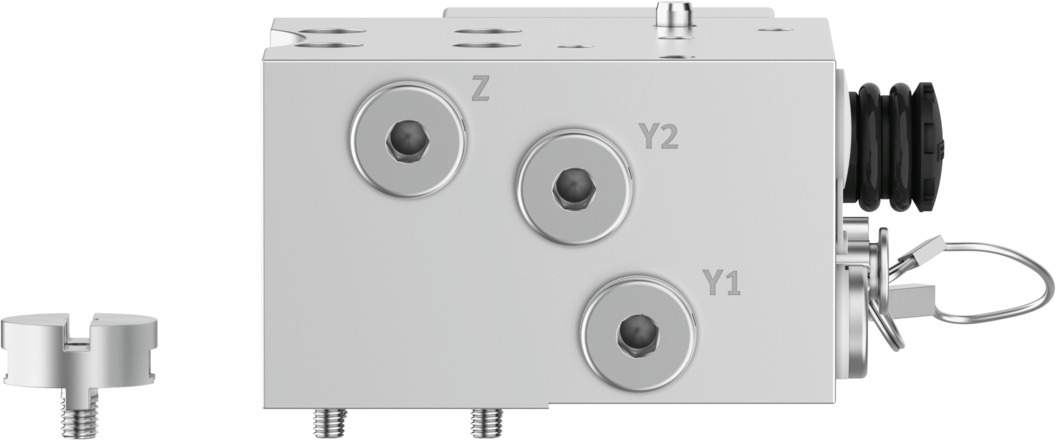

DADG-FM-F9-VDE2 is a control plate for valve and actuator combinations to VDI/VDE 3845 (NAMUR) and VDI/VDE 3847-2. Operating pressure 2 to 8 bar, explosion protection for zones 1, 2, 21 and 22 (ATEX), port G1/4.

Net

€346.40

excl. VAT

Item FES-8104802

Manufacturer no. DADG-FM-F9-VDE2

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

DADG-FM-F9-VDE2 is a control plate for valve and actuator combinations to VDI/VDE 3845 (NAMUR) and VDI/VDE 3847-2. Mounting position any, ambient temperature -20 to 80 °C, weight 1.34 kg.

Why this part

Interface to VDI/VDE 3845 (NAMUR) and VDI/VDE 3847-2
Operating pressure 2 to 8 bar, nominal operating pressure 6 bar
Explosion protection zones 1, 2, 21 and 22 (ATEX)
Pneumatic connection G1/4
Plate made of anodised wrought aluminium alloy, seals made of EPDM
Ambient temperature -20 to 80 °C

Where it is used

In process automation on butterfly valves and ball valves with quarter-turn actuators when the valve is to be mounted directly via the NAMUR interface, including hazardous areas.

Technical data

Order code	DADG-FM-F9-VDE2
Festo part number	8104802
Based on standard	VDI/VDE 3845 (NAMUR), VDI/VDE 3847-2
Mounting position	any
Operating pressure	2 to 8 bar
Nominal operating pressure	6 bar
Explosion protection	Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	dew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformity	VDMA24364 zone III
Ambient temperature	-20 to 80 °C
Product weight	1340 g
Pneumatic connection	G1/4
Note on materials	RoHS compliant
Material seals	EPDM, NBR
Material grub screws	high-alloy stainless steel
Material plate	wrought aluminium alloy, anodised
Material screws	high-alloy stainless steel
Customs tariff number	84819000
Weight	1.4 kg
Manufacturer	Festo
Hersteller-Nr	DADG-FM-F9-VDE2
EAN	4052568461188
Zolltarifnummer	84819000
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Thread	G 1/4
Medium	Compressed air
Series	DADG
Betriebsdruck max [bar]	8
Temperaturbereich	-20-80 °C
Temperature (max.)	80
