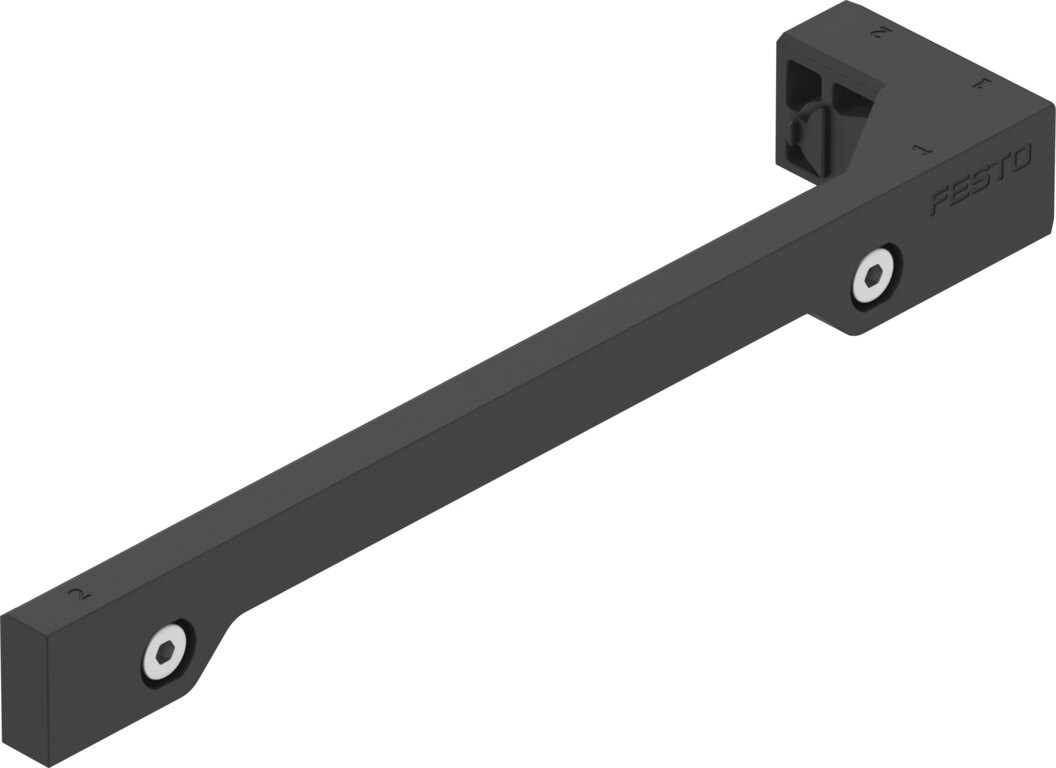

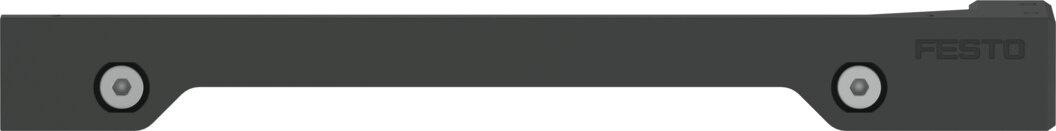

Connection kit size 8, stroke 50 mm, port M5 DADG-AK-G8-8-50 - Festo 8152364

Connection kit DADG-AK-G8-8-50 feeds a size 8 drive with 50 mm stroke with compressed air via M5. The kit weighs 9.9 g and is designed for compressed air to ISO 8573-1:2010 [7:4:4].

Why this part

• Port M5, max. tightening torque 0.7 Nm
• Mounting with max. 1.2 Nm tightening torque, tolerance ± 10 %
• Operating pressure 1 to 8 bar
• Adapter made of epoxy resin, seals made of NBR
• Corrosion resistance class CRC 1, rated for low corrosion stress
• Ambient temperature -10 to 60 °C

Where it is used

For drives in handling and assembly, at -10 to 60 °C ambient temperature and in paint shops with PWIS requirements.
