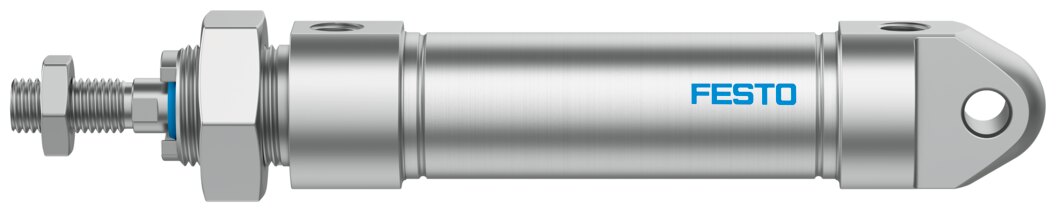

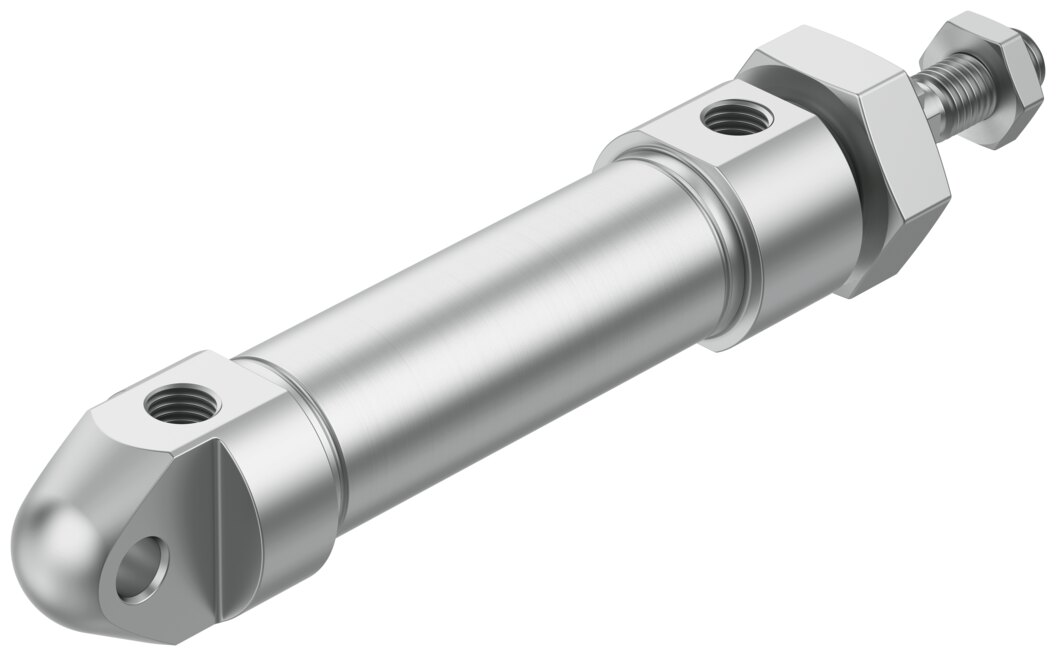

Stainless steel standards-based cylinder, double-acting, Ø 25 mm stroke 50 mm CRDSNU-25-50-P-A - Festo 8152632

295 N advancing force at 6 bar, 50 mm stroke and a stainless steel body: the Festo CRDSNU-25-50-P-A meets corrosion resistance class CRC 3. It is double-acting with a 25 mm piston.

Benefits

• Barrel, covers and piston rod in stainless steel, corrosion resistance class CRC 3
• Theoretical force at 6 bar: 295 N advance, 247 N return
• Cleanroom-suitable, class 5 to ISO 14644-1
• Conforms to ISO 6432, so standard mounting accessories fit
• Elastic cushioning rings at both ends (P), permissible impact energy 0.3 J
• Prepared for proximity switches to sense the end positions

Applications

The CRDSNU-25-50-P-A is used in packaging and filling machines, wet areas and outdoor installations. Its 50 mm stroke handles ejecting, positioning and clamping.
