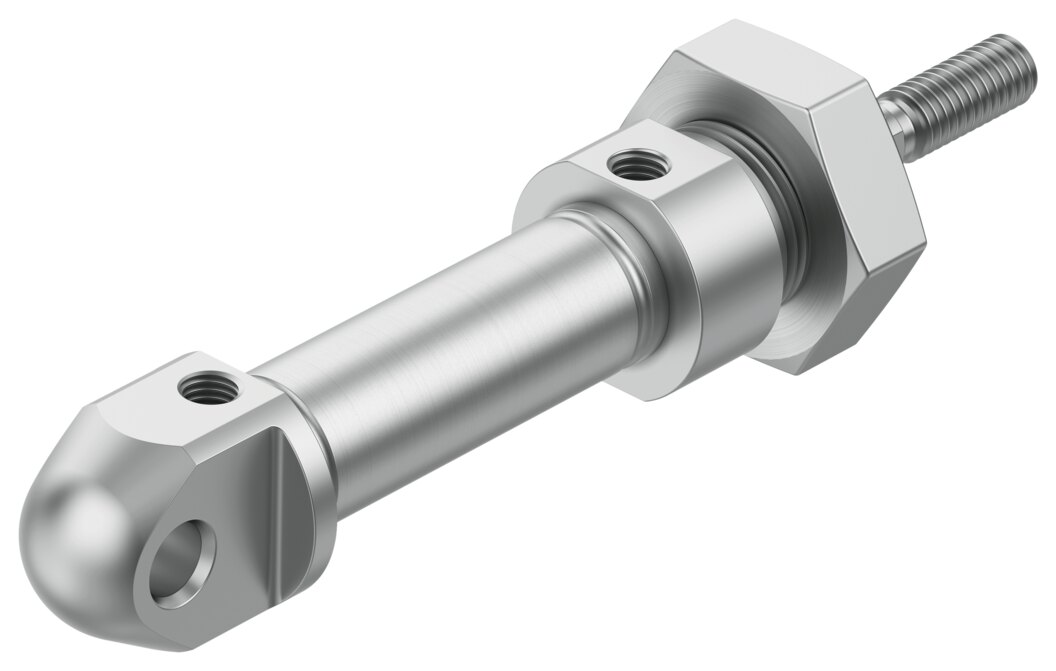

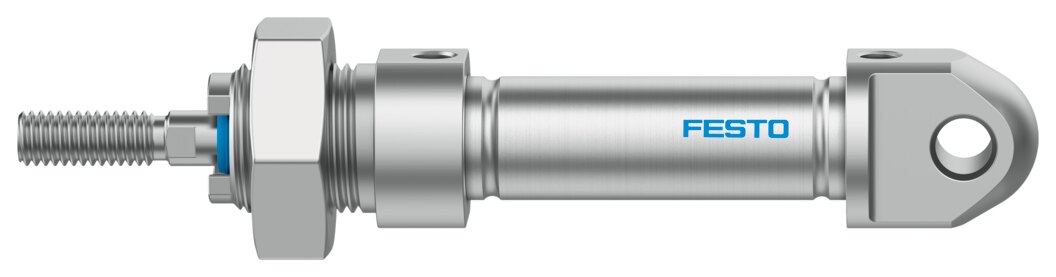

Stainless steel standards-based cylinder, double-acting, Ø 12 mm stroke 10 mm CRDSNU-12-10-P-A - Festo 8152524

Stainless steel on barrel, covers and piston rod makes the CRDSNU-12-10-P-A the choice for wet and washed-down machine areas. Piston Ø 12 mm, stroke 10 mm, corrosion resistance class CRC 3.

Benefits

• Theoretical force at 6 bar: 68 N advance, 51 N return
• Barrel, covers and piston rod in stainless steel, corrosion resistance class CRC 3
• Elastic cushioning rings at both ends (P), permissible impact energy 0.07 J
• Conforms to ISO 6432, so standard mounting accessories fit
• Cleanroom-suitable, class 5 to ISO 14644-1
• Air connection M5, piston rod thread M6

Applications

The CRDSNU-12-10-P-A fits machines in food, beverage and pharmaceutical production and anywhere moisture and cleaning would wear a standard cylinder. With 10 mm stroke it covers pushing, lifting and locking.
