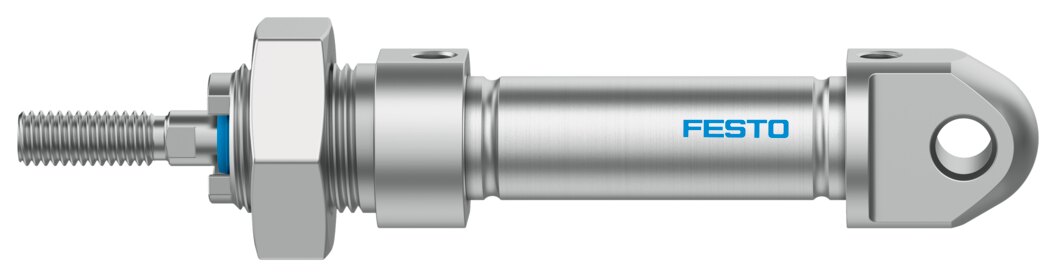

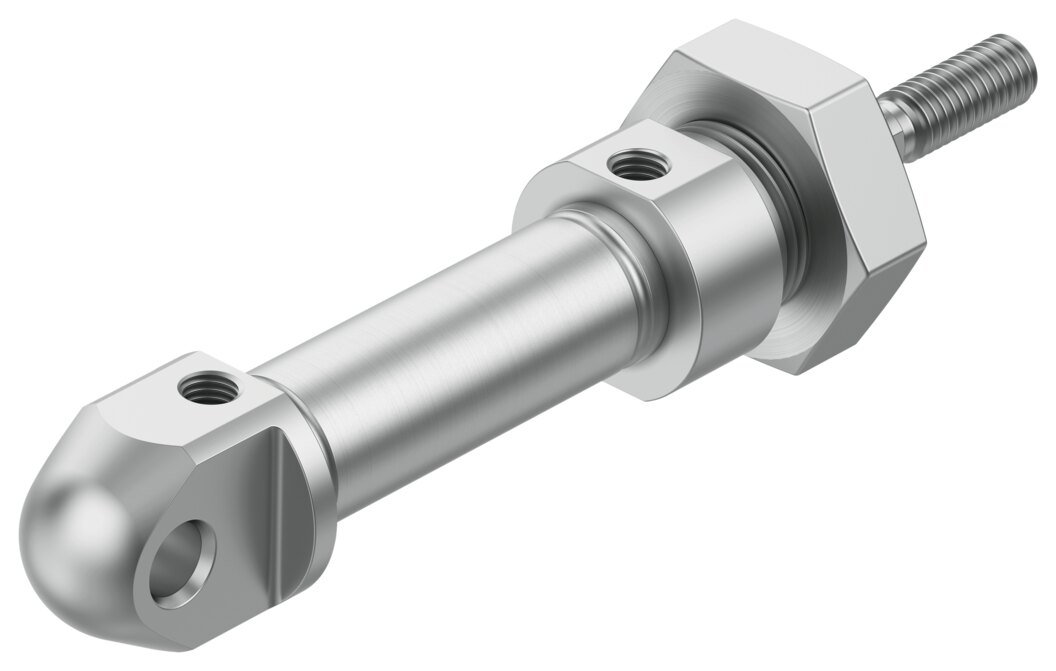

Stainless steel round cylinder, double-acting, Ø 40 mm stroke 50 mm CRDSNU-40-50-PPS-A-MG-A3 - Festo 609334
Double-acting CRDSNU stainless steel cylinder with a 40 mm piston and 50 mm stroke, barrel in stainless steel. Equipped with self-adjusting pneumatic end-position cushioning PPS.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo stainless steel cylinder CRDSNU-40-50-PPS-A-MG-A3 is double-acting with a 40 mm piston and 50 mm stroke. The barrel of the CRDSNU series is made of high-alloy stainless steel.
Benefits
- Piston Ø 40 mm and stroke 50 mm, defined by the order code CRDSNU-40-50-PPS-A-MG-A3
- Self-adjusting pneumatic end-position cushioning PPS
- Prepared for proximity switches to sense the end positions (code A in the type)
- Weight 1.5 kg
Applications
The CRDSNU-40-50-PPS-A-MG-A3 is used in packaging and filling machines, wet areas and outdoor installations. Its 50 mm stroke handles ejecting, positioning and clamping.
Technical data
| Feature | Value |
|---|---|
| Type | CRDSNU-40-50-PPS-A-MG-A3 |
| Festo part number | 609334 |
| Piston diameter | 40 mm |
| Stroke | 50 mm |
| Mode of operation | double-acting |
| Cushioning | PPS: self-adjusting pneumatic end-position cushioning |
| Position sensing | for proximity switches |
| Mounting position | any |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Cylinder barrel material | high-alloy stainless steel |
| Design | piston, piston rod, cylinder barrel |
| Weight | 1.5 kg |
| Manufacturer | Festo |
| Hersteller-Nr | CRDSNU-40-50-PPS-A-MG-A3 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel |
| Stroke [mm] | 50 |
| Medium | Compressed air |
| Function | double-acting |
| Series | CRDSNU |
| Bore (mm) | 40 |
