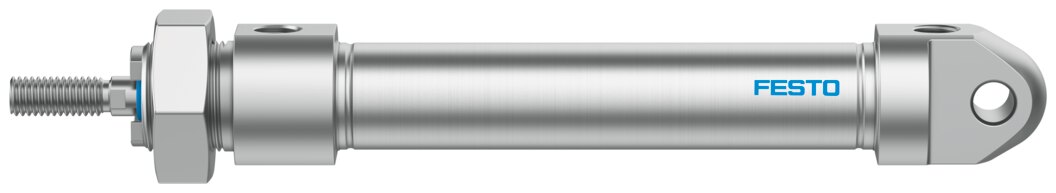

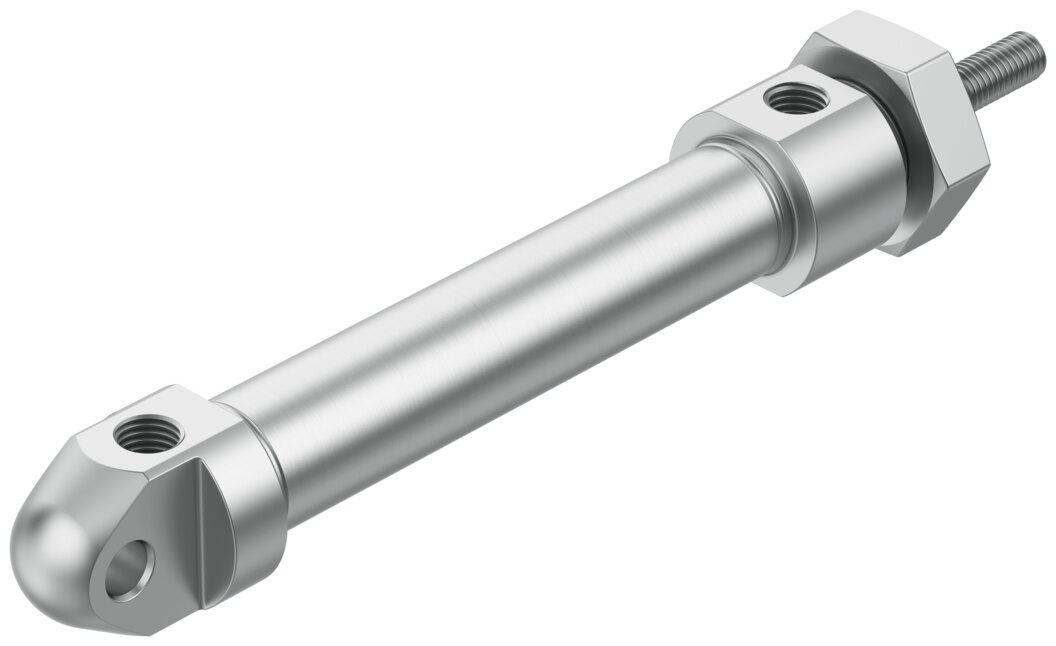

Stainless steel standards-based cylinder, double-acting, Ø 20 mm stroke 80 mm CRDSNU-20-80-P-A - Festo 8152563

Stainless steel on barrel, covers and piston rod makes the CRDSNU-20-80-P-A the choice for wet and washed-down machine areas. Piston Ø 20 mm, stroke 80 mm, corrosion resistance class CRC 3.

Benefits

• Theoretical force at 6 bar: 188 N advance, 158 N return
• Barrel, covers and piston rod in stainless steel, corrosion resistance class CRC 3
• Elastic cushioning rings at both ends (P), permissible impact energy 0.2 J
• Conforms to ISO 6432, so standard mounting accessories fit
• Cleanroom-suitable, class 5 to ISO 14644-1
• Operating pressure 1 to 10 bar

Applications

Typical jobs for the CRDSNU-20-80-P-A are clamping, pushing and locking with 80 mm stroke in machines that are cleaned wet on a regular basis.
