Stainless steel standards-based cylinder, double-acting, Ø 20 mm stroke 100 mm CRDSNU-20-100-P-A - Festo 8152564

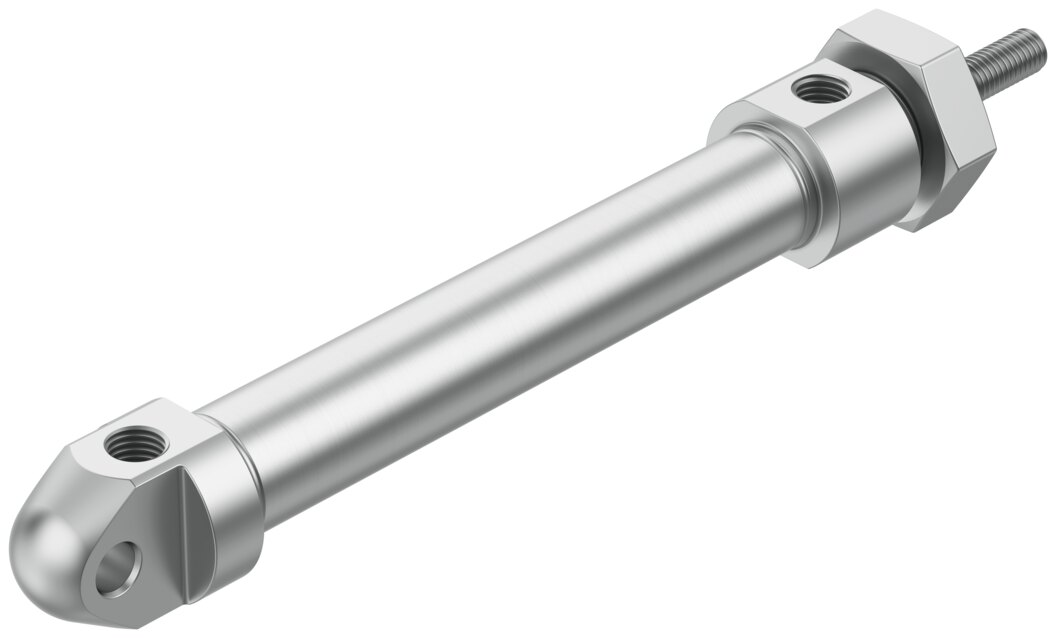

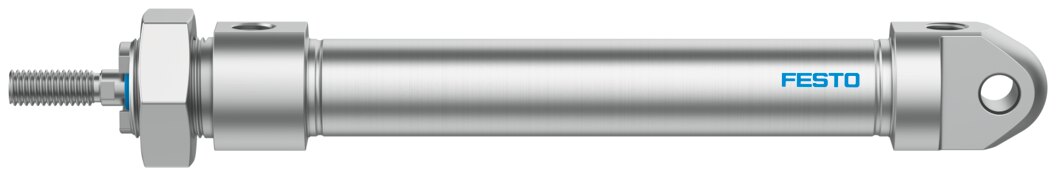

The stainless steel cylinder CRDSNU-20-100-P-A is made for environments where aluminium cylinders would suffer: corrosion resistance class CRC 3, piston rod and barrel in stainless steel. With a 20 mm piston and 100 mm stroke it pushes with 188 N at 6 bar.

Benefits

• Barrel, covers and piston rod in stainless steel, corrosion resistance class CRC 3
• Theoretical force at 6 bar: 188 N advance, 158 N return
• Conforms to ISO 6432, so standard mounting accessories fit
• Elastic cushioning rings at both ends (P), permissible impact energy 0.2 J
• Cleanroom-suitable, class 5 to ISO 14644-1
• Operating pressure 1 to 10 bar

Applications

The CRDSNU-20-100-P-A is used in packaging and filling machines, wet areas and outdoor installations. Its 100 mm stroke handles ejecting, positioning and clamping.
