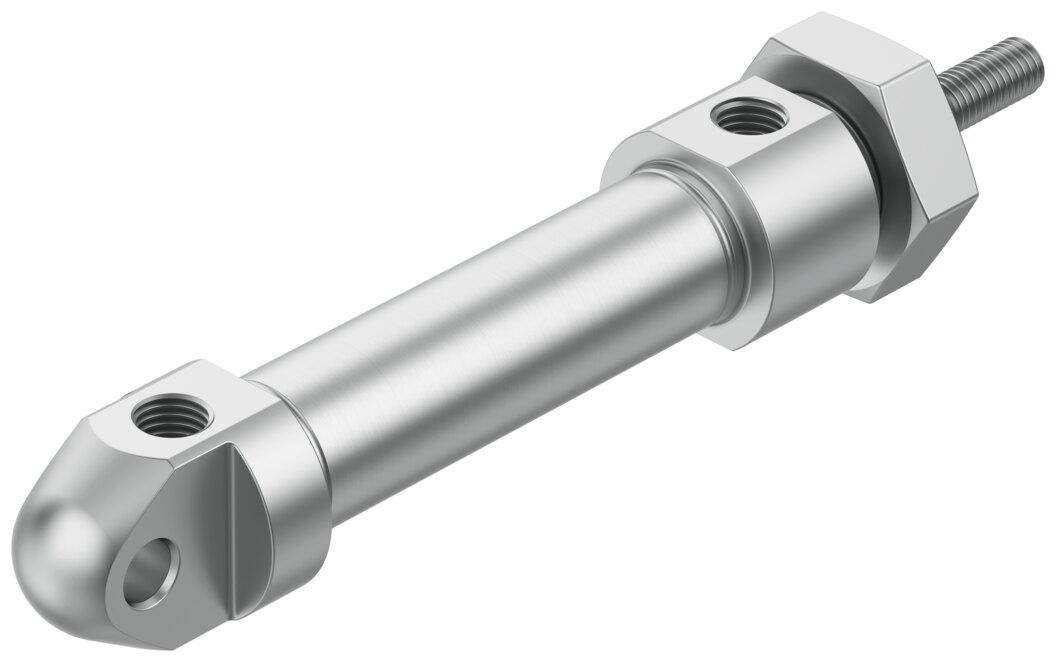

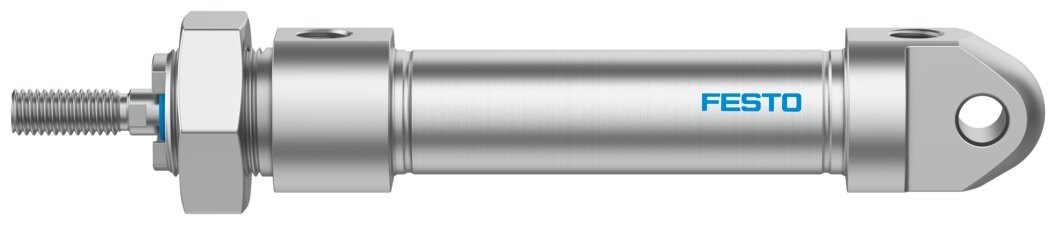

Stainless steel standards-based cylinder, double-acting, Ø 20 mm stroke 50 mm CRDSNU-20-50-P-A - Festo 8152562
Stainless steel cylinder for wet and washed-down machine areas, corrosion class CRC 3. Piston Ø 20 mm, 50 mm stroke, 188 N at 6 bar, elastic cushioning rings at both ends (P).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The stainless steel cylinder CRDSNU-20-50-P-A is made for environments where aluminium cylinders would suffer: corrosion resistance class CRC 3, piston rod and barrel in stainless steel. With a 20 mm piston and 50 mm stroke it pushes with 188 N at 6 bar.
Benefits
- Theoretical force at 6 bar: 188 N advance, 158 N return
- Barrel, covers and piston rod in stainless steel, corrosion resistance class CRC 3
- Elastic cushioning rings at both ends (P), permissible impact energy 0.2 J
- Cleanroom-suitable, class 5 to ISO 14644-1
- Conforms to ISO 6432, so standard mounting accessories fit
- Prepared for proximity switches to sense the end positions
Applications
The CRDSNU-20-50-P-A fits machines in food, beverage and pharmaceutical production and anywhere moisture and cleaning would wear a standard cylinder. With 50 mm stroke it covers pushing, lifting and locking.
Technical data
| Feature | Value |
|---|---|
| Type | CRDSNU-20-50-P-A |
| Festo part number | 8152562 |
| Stroke | 50 mm |
| Piston diameter | 20 mm |
| Piston rod thread | M8 |
| Cushioning | elastic cushioning rings/pads at both ends |
| Mounting position | any |
| Conforms to standard | ISO 6432 |
| Piston rod end | male thread |
| Design | piston, piston rod, cylinder barrel |
| Position sensing | for proximity switches |
| Operating pressure | 1 to 10 bar |
| Mode of operation | double-acting |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating medium | lubricated operation possible (then required for all further operation) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| PWIS (LABS) conformity | VDMA24364-B2-L |
| Cleanroom suitability, measured to ISO 14644-14 | class 5 to ISO 14644-1 |
| Food suitability | see declaration of conformity |
| Ambient temperature | -20 to 80 °C |
| Impact energy in end positions | 0.2 J |
| Theoretical force at 6 bar, return stroke | 158 N |
| Theoretical force at 6 bar, advance stroke | 188 N |
| Moving mass at 0 mm stroke | 42 g |
| Additional moving mass per 10 mm stroke | 4 g |
| Basic weight at 0 mm stroke | 310 g |
| Additional weight per 10 mm stroke | 7 g |
| Mounting type | with accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS compliant |
| Cover material | high-alloy stainless steel |
| Piston rod material | high-alloy stainless steel |
| Cylinder barrel material | high-alloy stainless steel |
| Weight | 0.38 kg |
| Manufacturer | Festo |
| Hersteller-Nr | CRDSNU-20-50-P-A |
| EAN | 4052568575854 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel |
| Thread | G 1/8 |
| Stroke [mm] | 50 |
| Medium | Compressed air |
| Function | double-acting |
| Norm | ISO 6432 |
| Series | CRDSNU |
| Bore (mm) | 20 |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
